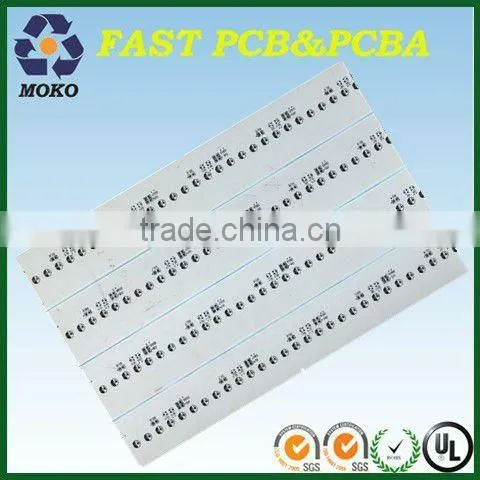

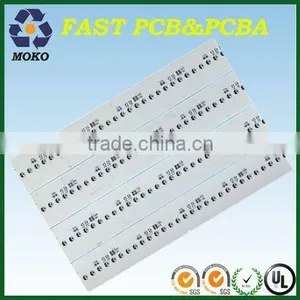

Help Center2oz Copper White Useful Aluminium LED PCB OEM
Related Products
Specifications
1.AL pcb single layer2.1.6mm,2oz copper,HASL
3.Min order :10pcs
4.3 days delivery
5.L/C T/T Western union Paypal
pcb board Specification | |||
1 |
Layer |
1-12 layer |
|
2 |
Material |
FR-4, CEM-1, CEM-3, Hight TG, FR4 Halogen Free, FR-1, FR-2 |
|
3 |
Board thickness |
0.2mm-7mm |
|
4 |
Max.finished board side |
800mm*508mm |
|
5 |
Min.drilled hole size |
0.5mm |
|
6 |
Min.line width |
0.075mm(3mil) |
|
7 |
Min.line spaceing |
0.075mm(3mil) |
|
8 |
Surface finish/treatment |
HALS/HALS lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating |
|
9 |
Copper thickness |
0.5oz Min., 5.0oz Max |
|
10 |
Solder mask color |
green/black/white/red/blue/yellow |
|
11 |
Inner packing |
Vaccum packing, Plastic bag |
|
12 |
Outer packing |
standard carton paking |
|
13 |
Hole tolerance |
PTH:±0.076, NTPH:±0.05 |
|
14 |
Certificate |
UL, ISO9001, ISO14001, ROHS, CQC, SGS |
|
15 |
profiling punching |
Routing, V-CUT, Beveling |
|
Lead Time
3days for samples
5days for min order
9days for mass order
Additional imformation:As 30 people specialized in this LED pcb production,with a cooperation company more than 20 people,we hardly can delay delivery.
Packing
Each pieces of PCBA in plastic ESD bags , Then PCBAs in small Carton,4 small cartons in one Large Carton.
Large CTN Dimension:35CM*32CM*40CM
Shipping
By air
By sea
Express Delivery--Door to Door (DHL UPS TNT FEDEX CHINA POST EMS)
Why us?
-Strong supply ability:
bare pcb board: single layer,2 layer pcb,multilayer pcb
pcb assembly
components source
turnkey pcb board service
your single point of contact for all of your raw materials,parts
Contract Manufacturing
Engineering Services
PCB Design&Assembly
Product Design
Prototyping
Cable and Wire Assemblies
-Quality
Our UL/Rohs standards insure quality assemblies from start to finish. Whether it's a simple customn product or a complex turnkey production run, Moko will adhere to the highest quality standards.
-Capable
Moko offers the latest in assembly capabilities and qualifications insuring that quality is built into every product we produce. Moko offers the latest in assembly capabilities and qualifications insuring that quality is built into every product we produce.
-Experience
Our management team has over 11years of combined industry knowledge. Our engineering team has over 7 years experience.
-Protecting your interests
Protecting your Intellectual Property is job one! Our staff of trained professionals are all working under a strict confidentiality contract and treat your important documentation as they would their own.
-Flexibility
We pride ourselves on our ability to custom tailor programs around our customers' needs. We take time to listen to your unique business needs and then set out to surpass them.
View of MOKO
Quote requirement:
1.Gerber file (design of pcb)
2.Pcb information
