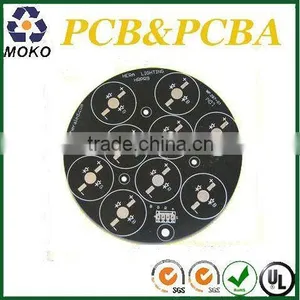

Help CenterLed Round Pcb
Related Products
Specifications
PCB/PCBA manufactureOEM/DOM service+100%test
UL,ROHS,CE,SGS
PCB led 7-10days
High quality,fast delivery
Our PCB got UL,SGS,ROHS,ISO9002 cerfitifcates,and are used to a wide range of fields such as computers,digital porducts, medical equipment,automobiles, communication devices,military, industrial control and aviation.
Product process capability
1 Layer: 2-22
2 Board finished thickness:0.21mm-7.0mm
3 Material: FR-4, CEM-1, CEM-3, High TG, FR4 halogen Free, Rogers
4 Max.finished board size:23*25(580*900mm)
5 Min.drilled hole size:4mil(0.10mm)
6 Min.Line width:4mil(0.10mm)
Min.Line spacing:4mil(0.10mm)
7 Surface finish/treatment: HASL/HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating.
8 Copper thickness:0.5-7.0 oz
9 Solder mask color: Green/yellow/black/white/red/blue
10 Copper thickness in hole: >25.0 um(>1mil)
11.Outer packing: Standard carton packing
12 Shape tolerance:±0.13
Hole tolerance:PTH: ±0.076 NPTH: ±0.05
13 Cerificate: UL.ISO9001.ISO14001.SGS.ROHS.
14 Special requirements:Buried and blind vias+Controlled impedance+BGA
15 Profilling:Punching.Routing.V-CUT.Beveling
16 Provides OEM Services to all sorts of printed circuit board assembly as we as electronic encased products.
All of the above description is to demonstrate the ability of our factory, if you have specific requirements, please contact us.
Product/Service: PCB, PCBA, printed circuit board, PCB assemble, SMT, FPCB, FPC, Rigid and Flex board, Rigid Printed circuit board.
PCB Board and PCB Assembly service
Your trust sourse for PCB product , established in the year 2001,good quality ensurance. 2 years' certificated goldn supplier of . Can supply with pcb layout,bare pcb board: single layer,2 layer pcb. multilayer pcb,pcb assembly,components source,turnkey pcb board service.
