Specifications
PCB/PCBA manufactureOEM/ODM service+100%test
UL,ROHS,CE,SGS
Pcb lead ime 7-10days
High quality,low price,

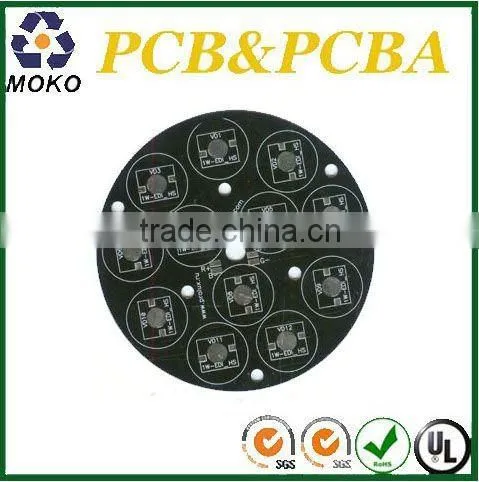

mcpcba
Our PCB got UL,SGS,ROHS,ISO9002 cerfitifcates,and are used to a wide range of fields such as computers,digital porducts, medical equipment,automobiles, communication devices,military, industrial control and aviation.
Product process capability
1,Layer: 1-30
2,Board finished thickness:0.21mm-7.0mm
3,Material: FR-4,CEM-1,CEM-3,High TG,FR4 halogen Free,Rogers
4,Max.finished board size:23*25(580*900mm)
5,Min.drilled hole size:3mil(0.075mm)
6,Min.Line width:3mil(0.075mm)
Min.Line spacing:3mil(0.075mm)
7,Surface finish/treatment: HASL/HASL lead free,HAL,Chemical tin,Chemical Gold,Immersion Silver/Gold,OSP, Gold plating.
8,Copper thickness:0.5-7.0 oz
9,Solder mask color: Green/yellow/black/white/red/blue
10,Copper thickness in hole: >25.0 um(>1mil)
11,Inner packing: Vaccum packing/Plastic bag
Outer packing: Standard carton packing
12,Shape tolerance:±0.13
Hole tolerance:PTH: ±0.076 NPTH: ±0.05
13,Cerificate: UL.ISO9001.ISO14001.SGS.ROHS.
14,Special requirements:Buried and blind vias+Controlled impedance+BGA
15,Profilling:Punching.Routing.V-CUT.Beveling
16,Provides OEM Services to all sorts of printed circuit board assembly as we as electronic encased products.
