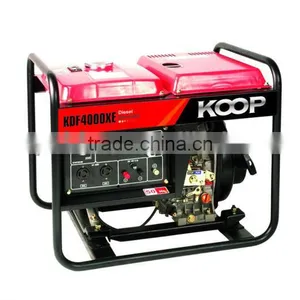

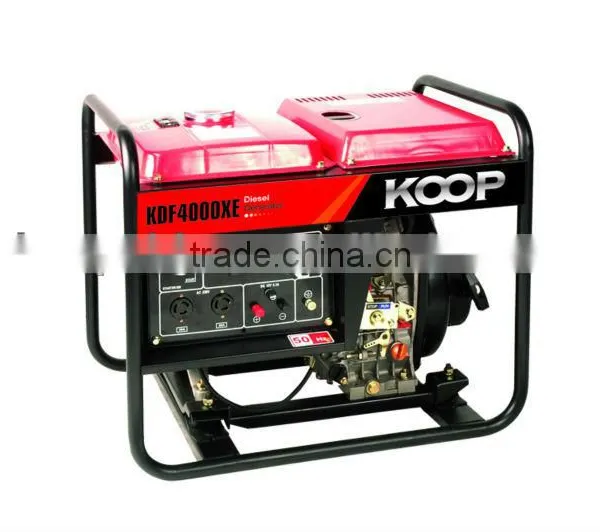

KOOP Open Frame Diesel Generator KDF4000XE
US$ 200 - 800
MOQ: 2 Sets
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
KOOP
Model Number:
KDF4000XE
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
KOOP Open Frame Diesel Generator 3KWUS$ 200 - 800MOQ: 10 Sets -
KDF6500XE Air Cooled Diesel GeneratorUS$ 200 - 800MOQ: 2 Sets
-
Open Frame Air Cooled Diesel Generator KDF6500XEUS$ 200 - 800MOQ: 2 Sets
-
Open Frame Air Cooled Diesel Generator KDF6500XEUS$ 200 - 800MOQ: 2 Sets
-
CE Diesel Generator KDF6500XEUS$ 200 - 800MOQ: 2 Sets
Place of Origin
Jiangsu, China
Brand Name
KOOP
Model Number
KDF4000XE
Output Type
AC Single Phase
Speed
3000/3600
Frequency
50/60hz
Rated Power
3KW
Rated Voltage
220
Specifications
Open Frame Type Air Cooled Diesel Generator. CE Certificated| Model | KDF4000X/XE | |
| Rated Frequency(Hz) | 50 | 60 |
| Rated Voltage(V) | 220,230,240,110/220,115/230,120/240,220/380,230/400,240/415 | |
| Rated Output Power(KVA) | 2.6 | 3 |
| Max Output Power(KVA) | 3 | 3.3 |
| Rated Rotation Speed(rpm) | 3000 | 3600 |
| Power Factor cosΦ | 1/0.8 | |
| Phase Number | Single /Three | |
| Excitation Transistorized | Self-Excitation,brushless | |
| Structure Type | Open frame | |
| Fuel Consumption(g/KW.h) | 370 | |
| Fuel Tank Capacity(L) | 12.5 | |
| Continuous Runing Time(hr)(At Rated Power) | 14 | |
| Noise Level(Dba@7m)(Zero Load~Full Load) | 72~77 | |
| Starting System | X: Recoil Starter;XE:Electric Starter | |
| Fuel Type | 0#(Summer),-10#(Winter),-35#(Chill Cold) Diesel Oil | |
| Lube | SAE10W30(Above CD Grade) | |
| Engine model | X:KD178F | |
| XE:KD178FE | ||
| Engine Type | 1-Cylinder,4-Stroke,Air Cooled, Vertical, Diesel Engine | |
| BorexStroke(mm) | 78x62 | |
| Displacement(cm³) | 0.296 | |
| Compression ratio | 20:1 | |
| Rated Power(KW/rpm) | 3.7/3000 | 4.0/3600 |
| Optional Standard | ATS | |
| Remote Control | ||
| Three Phase | ||
| Wheel and Handle | ||
| Net Weight(Kg) | X:65 | XE:70 |
| Overall Dimension(mm)(LxWxH) | 685x470x570 | |
