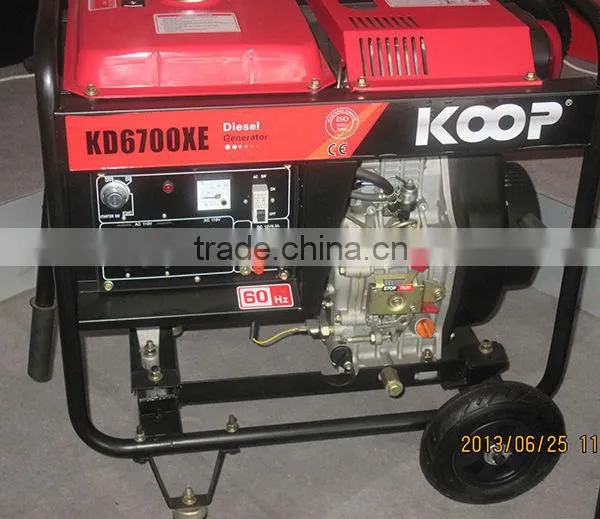

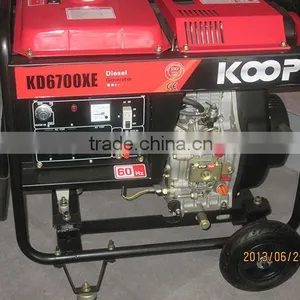

5KW Open Fame Air Cooled Diesel Generator-KDF6700XE
US$ 200 - 900
MOQ: 2 Sets
Key Specifications
Get Latest Price
Condition:
New
Usage:
Automobile
Fuel:
Other, Diesel, Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CE Approved KOOP Air Cooled Diesel Generator-KDF6700XEUS$ 200 - 900MOQ: 2 Sets -
5KW Open Fame Air Cooled Diesel Generator-KDF6700XEUS$ 200 - 900MOQ: 2 Sets
-
6.5kw DieselgeneratorUS$ 500.00 - 500.00MOQ: 5 Sets
-
5kw Diesel GeneratorUS$ 400.00 - 400.00MOQ: 3 Sets
-
5kva Diesel GeneratorNegotiableMOQ: 2 Cartons
Condition
New
Usage
Automobile
Fuel
Other, Diesel, Diesel
Stroke
4 Stroke
Cylinder
Single Cylinder
Cold Style
Other, Air-cooled
Start
Electric Start
Place of Origin
Jiangsu, China
Brand Name
KOOP
Model Number
KDF6700XE
Dimension(L*W*H)
735x485x620mm
Weight
100
Certification
CE
Warranty
One years
Specifications
1.Compact and Easy Move2.Longer Service Life
3.Easy Maintance
4.CE Certificated
Professional Manufacturer of high quality
1.Air Cooled Diesel Engine:
- Single Cylinder:KD170F(E),KD178F(E),KD186FA(E),KD188FB(E).
- Two Cylinder:KD292F
2.Air Cooled Diesel Generator:From 2KW~12KW Open Frame and Silent Type
3.Diesel Water Pump:2",3",4".
4.High pressure Water Pump:1.5",2".
5.Construction Machinery.
| Model | KDF6700X/XE | |
| Rated Frequency(Hz) | 50 | 60 |
| Rated Voltage(V) | 220,230,240,110/220,115/230,120/240,220/380,230/400,240/415 | |
| Rated Output Power(KVA) | 4.5 | 5 |
| Max Output Power(KVA) | 5 | 5.5 |
| Rated Rotation Speed(rpm) | 3000 | 3600 |
| Power Factor cosΦ | 1/0.8 | |
| Phase Number | Single /Three | |
| Excitation Transistorized | Self-Excitation,brushless | |
| Structure Type | Open frame | |
| Fuel Consumption(g/KW.h) | 340 | |
| Fuel Tank Capacity(L) | 12.5 | |
| Continuous Runing Time(hr)(At Rated Power) | 7 | |
| Noise Level(Dba@7m)(Zero Load~Full Load) | 75~79 | |
| Starting System | X: Recoil Starter;XE:Electric Starter | |
| Fuel Type | 0#(Summer),-10#(Winter),-35#(Chill Cold) Diesel Oil | |
| Lube | SAE10W30(Above CD Grade) | |
| Engine model | X:KD186FA | |
| XE:KD186FAE | ||
| Engine Type | 1-Cylinder,4-Stroke,Air Cooled, Vertical, Diesel Engine | |
| BorexStroke(mm) | 86x72 | |
| Displacement(cm³) | 0.418 | |
| Compression ratio | 19:1 | |
| Rated Power(KW/rpm) | 6/3000 | 6.6/3600 |
| Optional Standard | ATS | |
| Remote Control | ||
| Three Phase | ||
| Wheel and Handle | ||
| Net Weight(Kg) | X:95 | XE:100 |
| Overall Dimension(mm)(LxWxH) | 735x485x620 | |
