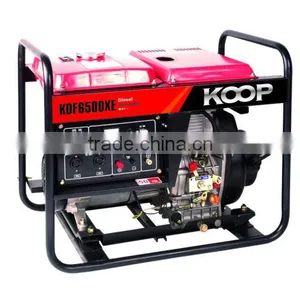

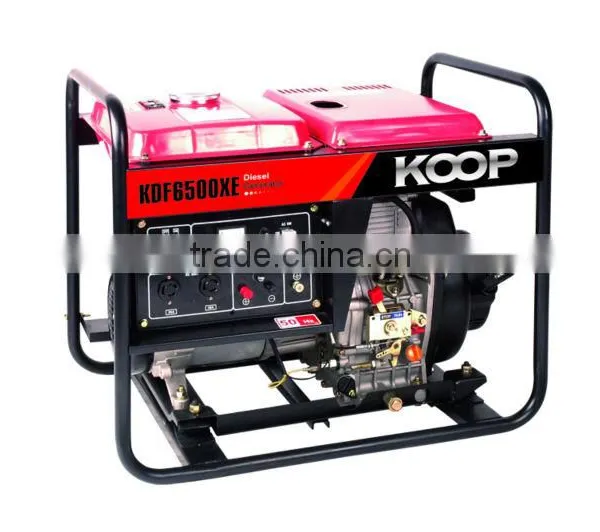

Diesel Generator KDF6500XE

Name: Diesel Generator KDF6500XE
Brand: KOOP
SKU: 106325223
Availability: InStock

US$ 200 - 800 MOQ: 2 Sets

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

KOOP

Model Number:

KDF6500XE

Changzhou Koop Power Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name KOOP

Model Number KDF6500XE

Output Type AC Single Phase

Speed 3000/3600

Frequency 50/60HZ

Rated Power 4.5

Rated Voltage 220V

Specifications

Open frame Air Cooled Diesel Generator, Portable, Easy Maintenance

Generator Set, Generating Set

Model	KDF6500X/XE
Rated Frequency(Hz)	50	60
Rated Voltage(V)	220,230,240,110/220,115/230,120/240,220/380,230/400,240/415
Rated Output Power(KVA)	4.2	4.5
Max Output Power(KVA)	4.5	5
Rated Rotation Speed(rpm)	3000	3600
Power Factor cosΦ	1/0.8
Phase Number	Single /Three
Excitation Transistorized	Self-Excitation,brushless
Structure Type	Open frame
Fuel Consumption(g/KW.h)	360
Fuel Tank Capacity(L)	12.5
Continuous Runing Time(hr)(At Rated Power)	7.5
Noise Level(Dba@7m)(Zero Load~Full Load)	75~79
Starting System	X: Recoil Starter;XE:Electric Starter
Fuel Type	0#(Summer),-10#(Winter),-35#(Chill Cold) Diesel Oil
Lube	SAE10W30(Above CD Grade)
Engine model	X:KD186F
	XE:KD186FE
Engine Type	1-Cylinder,4-Stroke,Air Cooled, Vertical, Diesel Engine
BorexStroke(mm)	86x70
Displacement(cm³)	0.406
Compression ratio	19:1
Rated Power(KW/rpm)	5.7/3000	6.3/3600
Optional Standard	ATS
	Remote Control
	Three Phase
	Wheel and Handle
Net Weight(Kg)	X:95	XE:100
Overall Dimension(mm)(LxWxH)	740x490x620
