Specifications

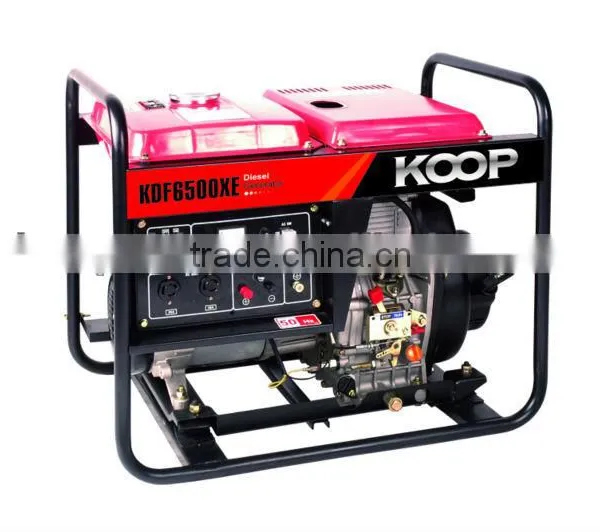

CE EPA approved, 5KVA Open frame diesel generator, 3 phase self-excitation, electric/recoil starter optionalWe are a manufactory of diesel engine and generator. So we can not only to control our products quality, but also to offer the competitive price for our customers.
5KVA diesel generator
CE EPA approved, 5KVA Open frame diesel generator, 3 phase self-excitation,
electric/recoil starter
1. CE approved, powered by KOOP advanced air-cooled diesel engine.
2. Large fuel tank, ensuring hours of continuous output...
3. Advanced direct fuel injection system.
4. Large silent muffler & air-cleaner, reducing exhaust and intake noise.
5. A variety of specially-designed control panels available for different markets.
model: KDF6500X/XE
rated frequency: 50/60
rated voltage(v): 380/220,400/230,420/240
rated output power(kva): 4.2/4.5
max output power(kva): 4.5/5.0
rated rotation speed(rpm): 3000/3600
power factor cos: 1
phase number: single/three
pole number: 2
excitation transistorized: self-excitation, brushless
ATS type: without ATS, optional
structure type: open-frame
fuel consumption(g/kw.h): 360
fuel tank capacity(L): 12.5
continuous running time(hr)(at rated power): 7.5
noise level(dBA@7m)(zero load~full load): 75-79
net weight(kg): X:104 XE:129
overall dimension(mm)(L*W*H): 735*485*670
starting system: X:: recoil starter; XE: electric
The specification of diesel engine:
Model |
KD186F/FE |
Type |
Vertical, 1-cylinder, 4-stroke, air-cooled |
Combustion system |
Direct injection |
Bore×storke [mm(in)] |
86×70 (3.39×2.76) |
Displacement [L(cc)] |
0.406 (406) |
Compression ratio |
19:1 |
Rated power [KW/rpm] |
5.7/3000,6.3/3600 |
Rated power [HP/rpm] |
7.7/3000,8.6/3600 |
Rated speed (rpm) |
3000/3600 |
Starting system |
F: Recoil starter; E: Electric starter |
Fuel tank capacity [L(US. gal)] |
5.5 (1.45) |
Lube capacity [L(US. gal)] |
1.65 (0.44) |
Fuel consumption [g(ml)/KWh] |
3000rpm: 275 (376) |
3600rpm: 281 (385) | |
Fuel |
0 (summer), -10 (winter) diesel oil |
Lube |
SAE10W30 (above CC grade) |
Overall dimension [mm(in)](L×W×H) |
420×440×495 (16.53×17.32×19.49) |
Net weight [kg(lbs)] |
Recoil starter type: 48 (105.6) |
Electric starter type: 53 (116.6) | |
Rotation direction (view from flywheel) |
Clockwise |
