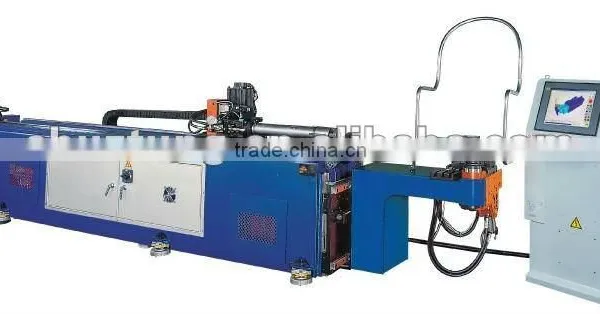

Pipe Bending Machine3 stacks mold and 4 AXES SERVO CONTROL for pipe feeing,turning, bending & bending arm right/left shifting
Pipe Bending Machine:
Feature:

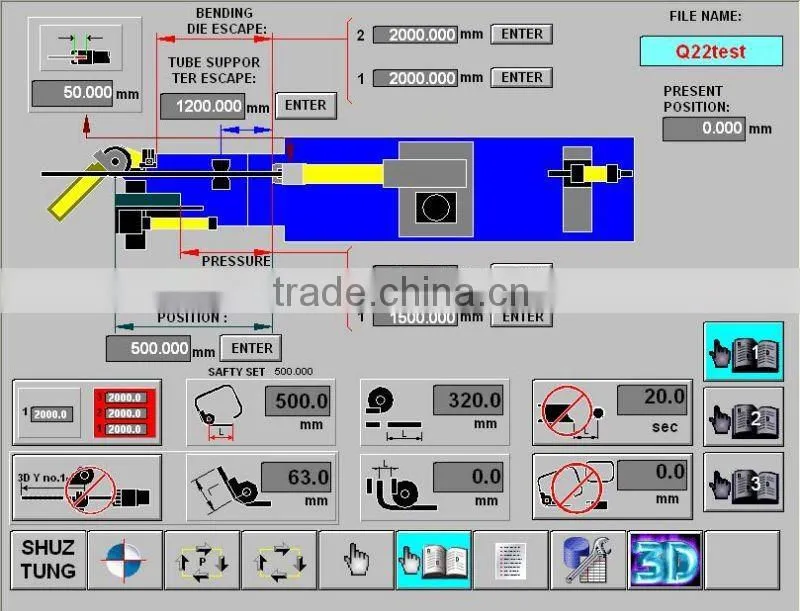

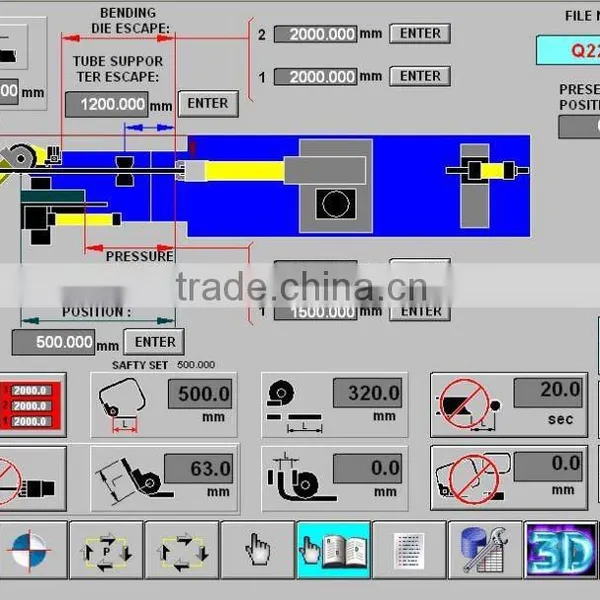

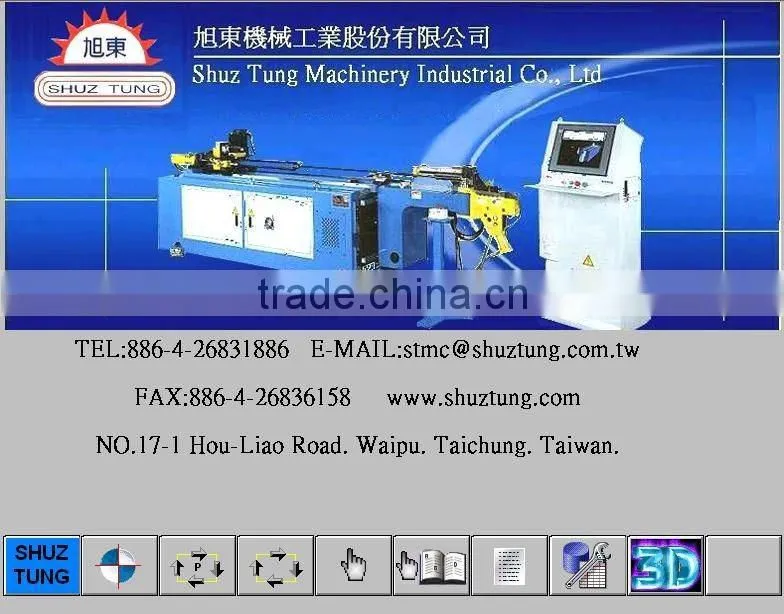

1. LCD touch screen:
A. 17" color touch screen with Chinese, English display. (Multiple language for options)
B. Adopts PC based 6 axes controller for user-friendly programming. Operator can control from WIM XP directly.

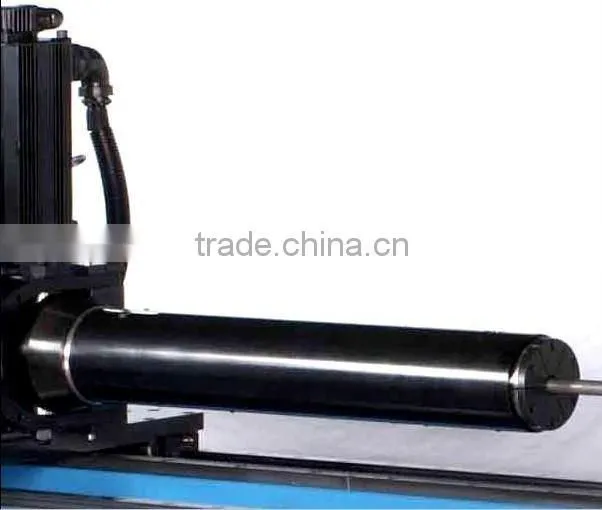

2. Collect Chuck:
A. The collect chuck is a 4 piece quickly released type and is available open type for various shapes of pipes.
B. Repetitive feeding without using a mandrel means free limitation of length.

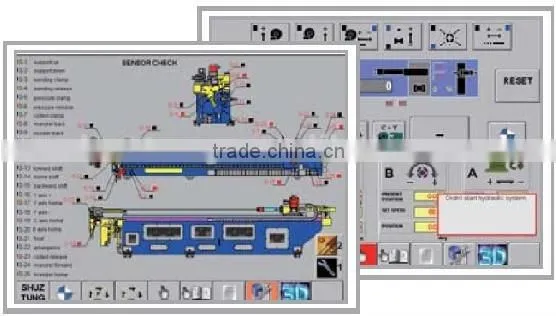

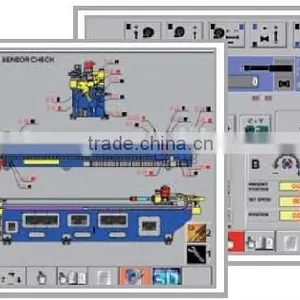

3. Error Message:
Error description and flashing alarm on abnormal operational section offer critical information for instant trouble shooting.

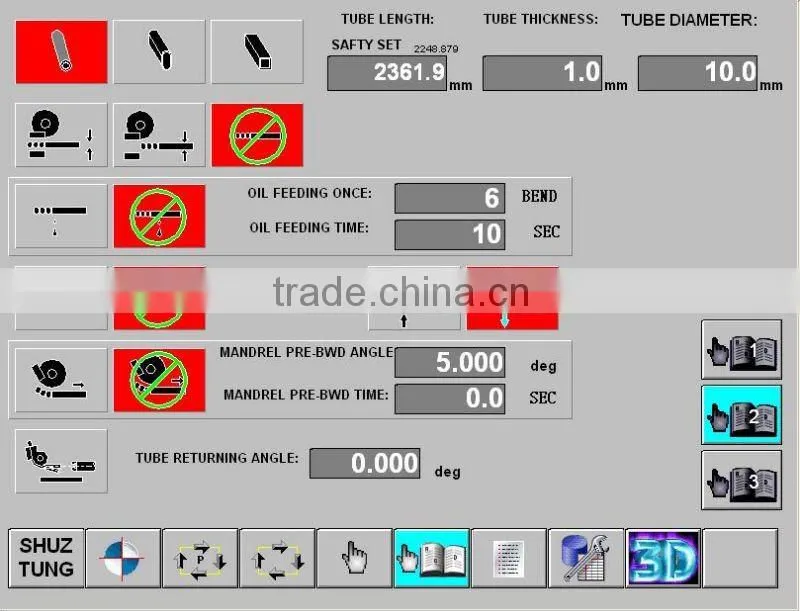

4. Parameter list:
A. Able to set up spring back compensation.
B. Able to set up parameters of unmandrellling, booster, mandrel lubrication and spring back angle.
5. Specification:
A. Tube information, die specifications and machine settings can be saved for reference.
B. With contrastive table for programs, tubes and dies for easy identification.
C. Data can be stored in HD or USB drive, The PC is equipped with 40GB memory

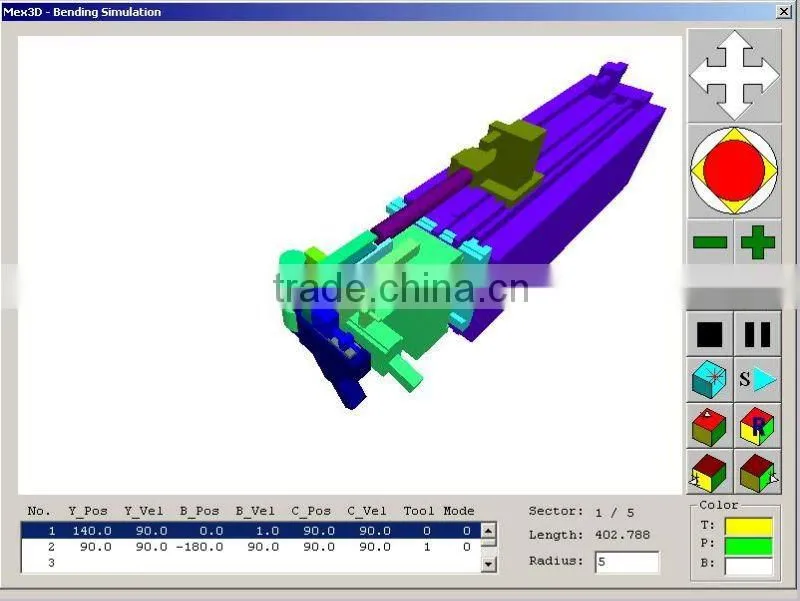

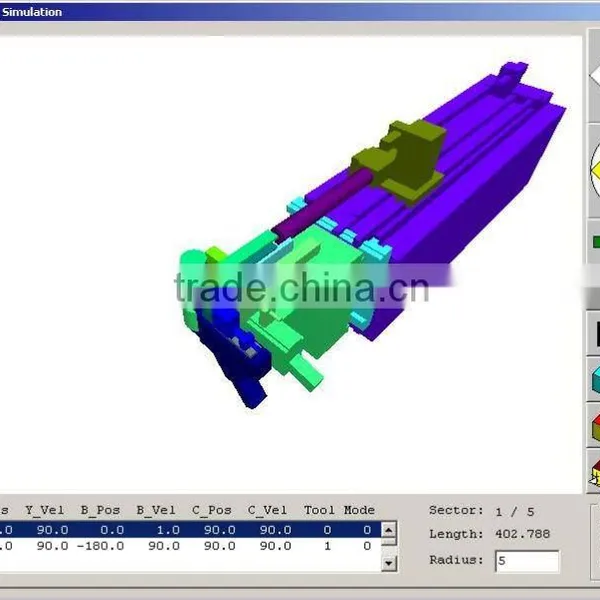

6. 3D simulation:
3D simulation can execute programs without actual operations thereby saving costs.
7. SPECIFICATION
HORSE POWER |
22HP |
MAX. BENDING CAPACITY |
Ø38 x2.0MM |
MAX. BENDING RADIUS |
200MM |
MAX. BENDING ANGLE |
190° |
ONE TIME FEEDING LENGTH |
2500MM |
LENGTH OF MANDREL |
3500MM |
BENDING SPEED |
150°/SEC |
BENDING ACCURACY |
± 0.05° |
FEEDING SPEED |
1-1000MM/SEC. |
FEEDING ACCURACY |
± 0.1MM |
TURNING SPEED |
240° |
TURNING ACCURACY |
± 0.1° |
TOTAL MOLD HEIGHT |
210MM |
RADIUS DIFFERENCE BETWEEN STACKS |
45MM |
DIMENSION (CM) |
350 x 107 x 130 |
WEIGHT (KG) |
2500 |
