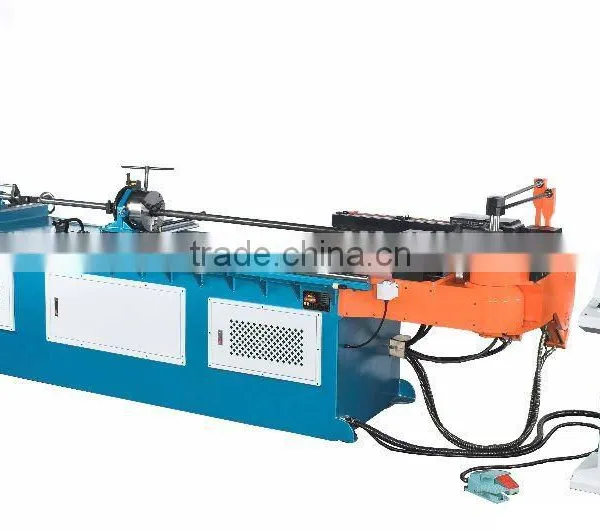

Help CenterNC Pipe Bending Machine
Related Products
Specifications

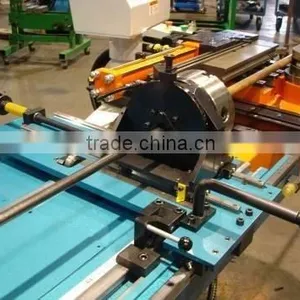

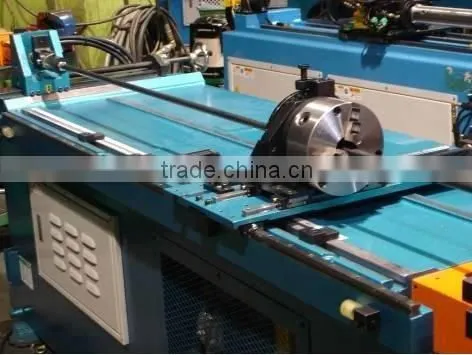

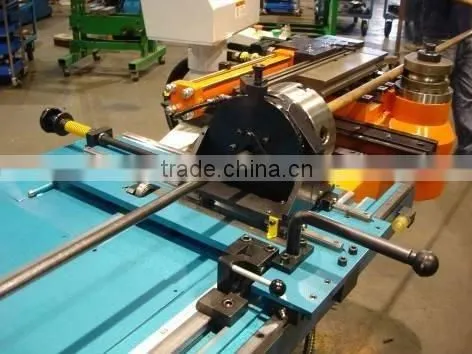

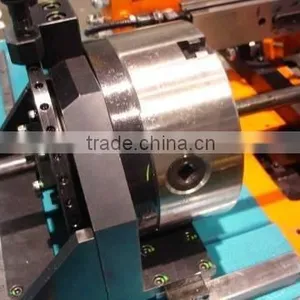

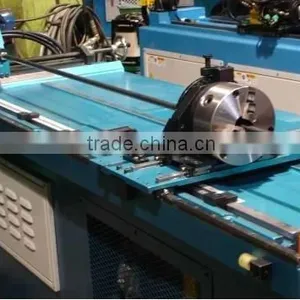

Pipe Bending Machine1.Equipped special length & turning angel adjusting device
2.Max. Bending Capacity: O.D.65x2.2T(mm)
Pipe Bending machine
Specification:
1.) Designed with strong clamping and bending capacities for mass production requirements.
2.) PLC-BASED digital control for setting single or multiple degree bends.
3.) Equipped with user-friendly touch screen for easy operation.
4.) Displayed alarm conditions on the screen for trouble-shooting.
5.) Able to select parameter options for mandrel pre-reverse, booster (option) and spring back angles.
6.) Overhead tie-bar equipped.

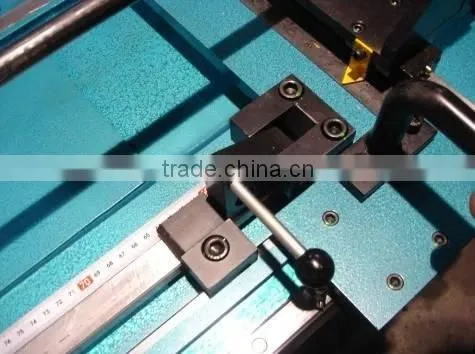

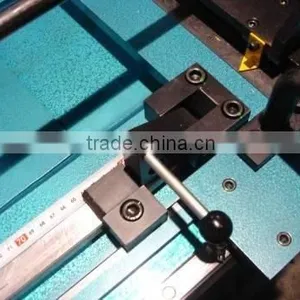

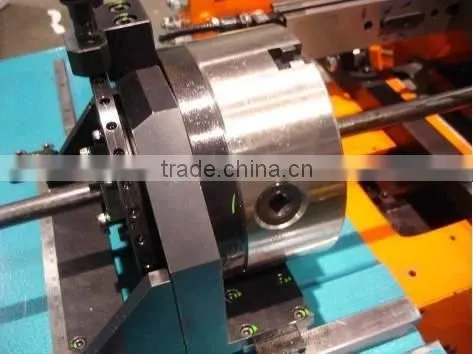

7.) Manual setting for angle rotating and length feeding.
8.) Additional design with stronger machine body for the extra devices.
9.) Easy operation for manual rotating and length feeding.
10.) Capacity:
MAX. BENDING CAPACITY |
Ø65x2.2MM |
RANGE OF BENDING RADIUS (CLR) |
60MM~450MM |
RANGE OF BENDING |
190° |
LENGTH OF MANDREL |
2800MM |
LENGTH OF POSITIONING |
2690MM |
MANUAL ROTATION |

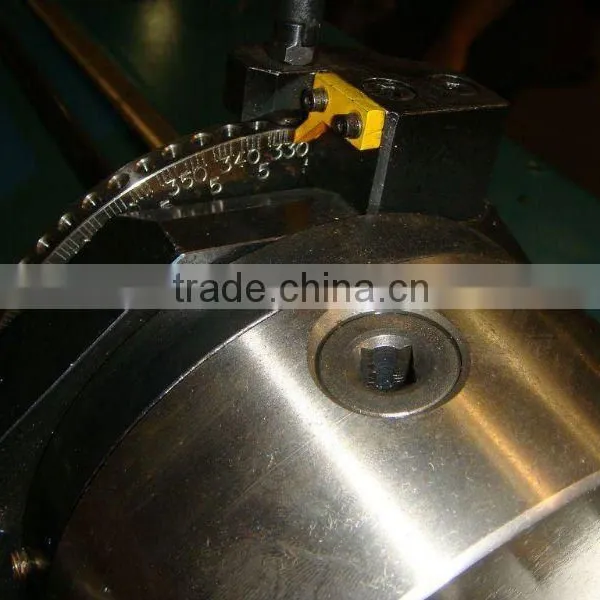

72 DIVISION = 5° 360° BY MANUAL SETTING |
BENDING SPEED |
20°/SEC. |
BENDING ACCURACY |
± 0.1° |
BENDING ACCURACY |
±0.25MM |
NUMBER OF PROGRAM |
99 |
