Home > Manufacturing & Processing Machinery > Cutting & Fold-bend Machine > Bending Machine > CNC Bending Machine

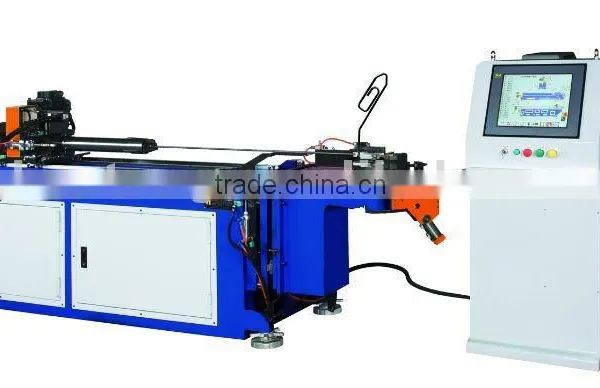

CNC Bending Machine

Name: CNC Bending Machine
Brand: SHUZ TUNG
SKU: 106250125
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Taiwan, China

Brand Name:

SHUZ TUNG

Model Number:

CNC16BR2

Contact Supplier Request Quote Chat Now

Shuz Tung Machinery Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Taichung

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Taiwan, China

Brand Name SHUZ TUNG

Model Number CNC16BR2

Machine Type Beading Machine

Raw Material Pipe

Material / Metal Processed Other, Mild steel, stainless steel, alloy, aluminum, copper

Power Cnc

Automation Automatic

Certification ISO 9001:2000

Specifications

cnc bending machine:
4 AXES SERVO CONTROL for pipe feeing, turning, bending & bending arm right/left shifting.

cnc bending machine:

Feature:

1. LCD touch screen

A. 17" color touch screen with Chinese, English display. (Multiple languanges for options)

B. Adopts PC based 6 axes controller for user-friendly programming. Operator can control from WIM XP directly.

2. Collect Chuck:

A. The collect chuck is a 4 piece quickly released type and is available open type for various shapes of pipes.

B. Recetitive feeding without using a mandrel means free limitation of length.

3. Error Message:

Error description and flashing alarm on abnormal operational section offer critical information for instant trouble shooting.

4. Parameter list:

A. Able to set up spring back compensation.

B. Able to set up parameters of unmandrellling, booster, mandrel lubrication and spring back angle.

5. Specification:

A. Tube information, die specifications and machine settings can be saved for reference.

B. With contrastive table for programs, tubes and dies fro easy identification.

C. Data can be stored in HD or USB drive, The PC is equipped with 40GB memory

6. 3D simulation:

3D simulation can execute programs without actual operations thereby saving costs.

7. SPECIFICATION

HORSE POWER	11HP
MAX. BENDING CAPACITY	Ø16 x1.2MM
MAX. BENDING RADIUS	80MM
MAX. BENDING ANGLE	190°
LENGTH OF MANDREL	1200MM
BENDING SPEED	214°/SEC
BENDING ACCURACY	± 0.05°
FEEDING SPEED	1-1200MM/SEC.
FEEDING ACCURACY	± 0.1MM
TURNING SPEED	360°
TURNING ACCURACY	± 0.1°
TOTAL MOLD HEIGHT	80MM
RADIUS DIFFERENCE BETWEEN STACKS	25MM
DIMENSION (CM)	280 x 85 x 120
WEIGHT (KG)	1500
