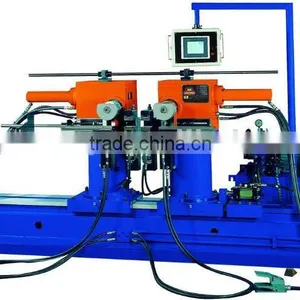

Double Heads Pipe Bending Machine

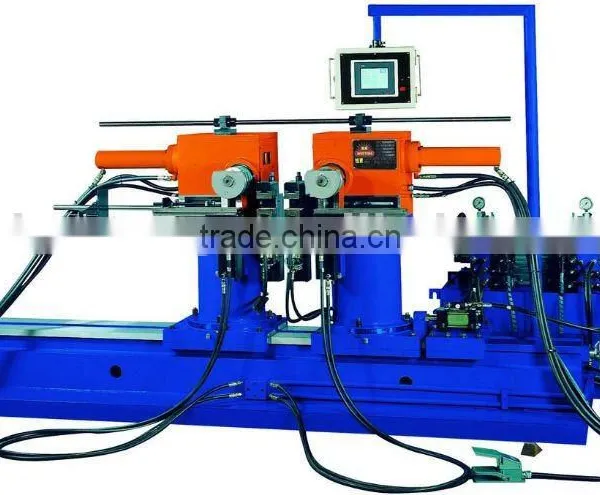

Double Heads Pipe Bending Machine photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
SHUZ TUNG
Model Number:
DDB38
Payment & Shipping
Payment Methods:
Port of Shipment:
Taichung
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Taiwan, China
Brand Name SHUZ TUNG
Model Number DDB38
Machine Type Beading Machine
Raw Material Pipe
Material / Metal Processed Other, Mild steel, stainless steel, alloy, aluminum, copper
Power Hydraulic
Automation Manual
Certification ISO 9001:2000

Specifications

Pipe Bending Machine
1. Max. bending capacity: 38mm
2. Max. Bending angle: 190 degree
3. Available bending radius(mm): 30-150

Pipe bending machine

Specification:

Double Heads Pipe Bending Machine

1. Two Times Finish

2. Touch monitor display: Angle automatic control, angle control divided into two sets ( left and right ) which is available to change the angle on the panel any time, if necessary. On the computer panel, it can program setting 5 sets left and 5 sets right continuous bending pipe angle.
3. Computer built in both English and Chinese display, it is alternative and easy to operate.
4. Hydraulic power: Equipped with two connecting pump, each with one set hydraulic unit and circuit (in left and right side), which is available to control left and right angle separately.
5. When bending jobs finished, at times of radial arms position reset with one hydraulic pressure stabilizer system to prevent machine vibration, causing the machine damage. Therefore, expand the machine service life.

6. Capacity:

Model Max. distance between 2 shafts (mm) Max. Bending Capacity (mm)  Max. Bending Angle (°)  Available Bending Radius (mm)  Hydraulic Pump HP
1500 1500 Ø38  190  30~150  7 1/2-4P
2000 2000 Ø38  190  30~150  7 1/2-4P
2500 2500 Ø38  190  30~150  7 1/2-4P
