Home > Manufacturing & Processing Machinery > Cutting & Fold-bend Machine > Bending Machine > CNC Pipe Bending Machine

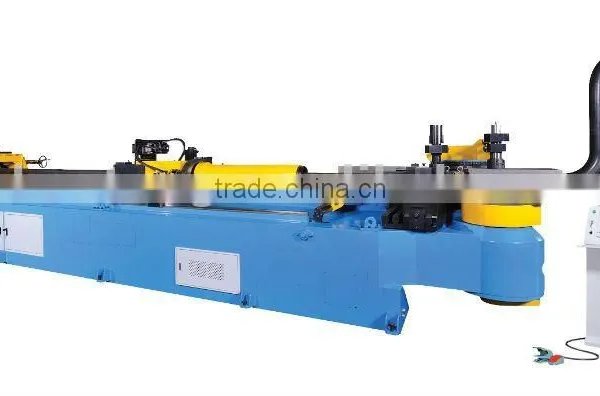

CNC Pipe Bending Machine

Name: CNC Pipe Bending Machine
Brand: SHUZ TUNG
SKU: 106250079
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Taiwan, China

Brand Name:

SHUZ TUNG

Model Number:

CNC170B1

Contact Supplier Request Quote Chat Now

Shuz Tung Machinery Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Taichung

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Taiwan, China

Brand Name SHUZ TUNG

Model Number CNC170B1

Machine Type Beading Machine

Raw Material Pipe

Material / Metal Processed Other, Mild steel, stainless steel, alloy, aluminum, copper

Power Cnc

Automation Automatic

Certification ISO 9001:2000

Specifications

Pipe Bending Machine
1). Max. bending capacity:170x7T(mm)
2). 2 axes servo control
3). Bending axie control by hydraulic

Pipe bending machine

Specification:

1.) Equipped 12.1" color touch screen for easy operation.

2.) Adopts PC based controller for user-friendly programming. Operator can control from WIM XP directly.
3.) Function:

a. Collect chuck:

i.) The collect chuck is a 4 piec quickly released type and is available open type for various shapes of tube.

ii.) Repetitive feeding without using a mandrel means free limitation of length.

b. Error message:

i.) Error description and flashing alarm on abnormal operational section offer critical information for instant trouble shooting.

c. Parameter list:

i.) Able to set up spring back compensation.

ii.) Able to set up parameters of unmandrel, booster, mandrel lubrication and spring back angle.

iii.) Able to set up production quantity.

d. Specification:

i.) Tube information, die specifications and machine settings can be saved for reference.

ii.) With contrastive table for programs, tubes and dies for easy identification.

iii.) Data can be saved in HD or USB drive, the PC is equipped with 40GB memory and is able to be expanded upon request.

4.) Capacity:

HYDRAULIC POWER	53HP
MAX. BENDING CAPACITY(MM)	Ø170 x 7.0
RANGE OF RADIUS(MM)	600
RANGE OF ANGLE	190 º
LENGTH OF MANDREL (MM)	5000MM
BENDING ACCURACY	±0.1º
BENDING SPEED	10º/SEC
FEEDING ACCURACY(MM)	± 0.1
FEEDING SPEED	1-600MM/SEC
TURNING ACCURACY	± 0.1º
TURNING SPEED	82º/SEC
DIMENSION (CM)	1,160X290X200
WEIGHT (KGS)	25,000
