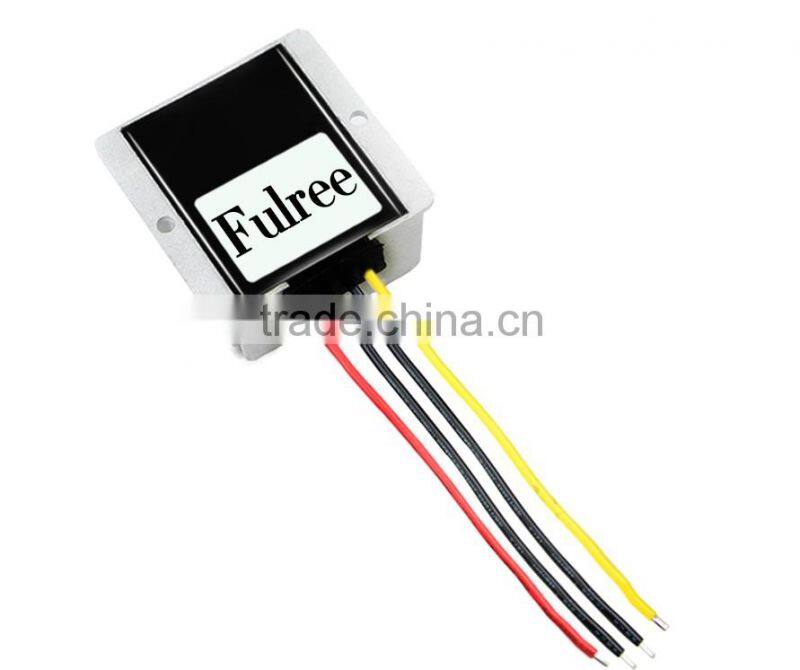

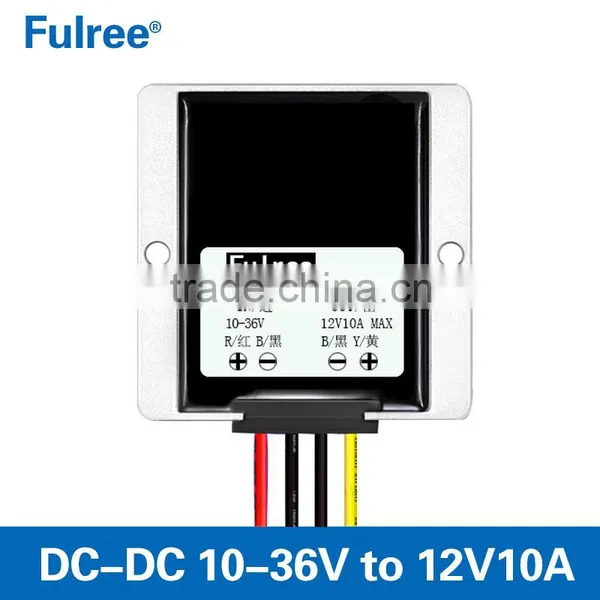

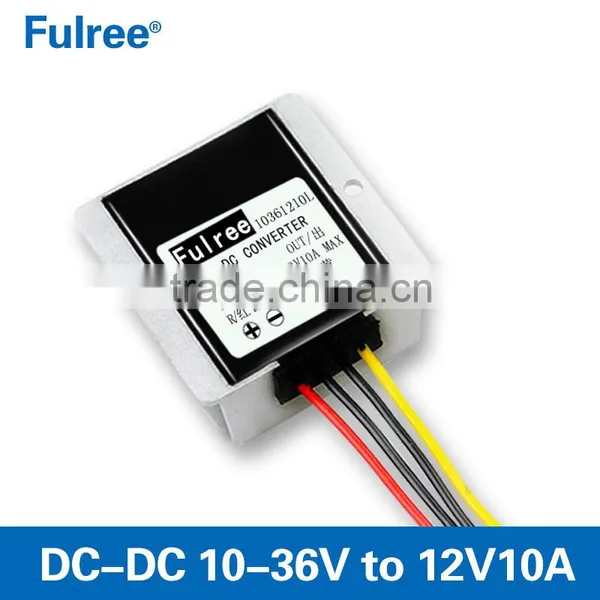

Waterproof 12v to 12v10A dc Regulator,10-36v to 12v Dc-dc Converter Module, Stablizer for Solar Power

Waterproof 12v to 12v10A dc Regulator,10-36v to 12v Dc-dc Converter Module, Stablizer for Solar Power thumbnail-1
Waterproof 12v to 12v10A dc Regulator,10-36v to 12v Dc-dc Converter Module, Stablizer for Solar Power thumbnail-2
Waterproof 12v to 12v10A dc Regulator,10-36v to 12v Dc-dc Converter Module, Stablizer for Solar Power thumbnail-3
Waterproof 12v to 12v10A dc Regulator,10-36v to 12v Dc-dc Converter Module, Stablizer for Solar Power photo-1
Waterproof 12v to 12v10A dc Regulator,10-36v to 12v Dc-dc Converter Module, Stablizer for Solar Power photo-2
Waterproof 12v to 12v10A dc Regulator,10-36v to 12v Dc-dc Converter Module, Stablizer for Solar Power photo-3
US$ 20 - 26 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
fulree
Model Number:
10361210L
Contact Supplier Request Quote Chat Now
Shenzhen Fulree Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN/HONGKONG
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name fulree
Model Number 10361210L
Output Power 101 - 200W
Output Type Single

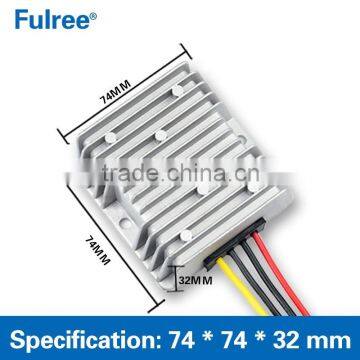

Size 74*74*32mm
Weight 280G
Input Voltage 10-36V
Output Voltage 12V
Type DC/DC Converters
Output Frequency 0-400HZ
Output Current 10A MAX

waterproof 12v to 12v10A dc regulator,10-36v to 12v dc-dc converter module, stablizer for solar power

Model 10361210L
Input rated voltage 12V
Input voltage range 8-36V DC
Efficiency 93% (half load), 91% (full load)
Output voltage 12V
Output current 10A MAX
Output rated power
 120W
Output peak power
 140W
Voltage regulation < 1%
Load regulation < 2%
Working temperature

-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use,

or to enhance heat dissipation)
Module Properties

non-isolated buck module(buck)
Rectification synchronous rectification
Waterproof rating
 IP68
Full load temperature rise: 50°c
Protection Over-current, Over-temperature,  Short-circuit protection,  Instant absorption of high voltage protection

Auto-recovery when device is back to normal operating,

waterproof IP68 design, anti-shock protection
Input Reverse Polarity Protection None (Please Series diode at the input port.)
NW 280G
Product size  74*74*32MM

Other output current

option for DC 12V TO 12V

 4A, 5A, 10A, 12A(pls contact with our sales manager if need)





Attention:
>Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.





 waterproof 12v to 12v10A dc regulator,10-36v to 12v dc-dc converter module, stablizer for solar power

waterproof 12v to 12v10A dc regulator,10-36v to 12v dc-dc converter module, stablizer for solar power

waterproof 12v to 12v10A dc regulator,10-36v to 12v dc-dc converter module, stablizer for solar power
