Home > Electrical & Electronics > Inverter > Power Inverter > 8-40v to 3.3-24v3a Dc-dc Step Down Adjustable Power Supply Buck Module, Dc-dc Step Down Converter

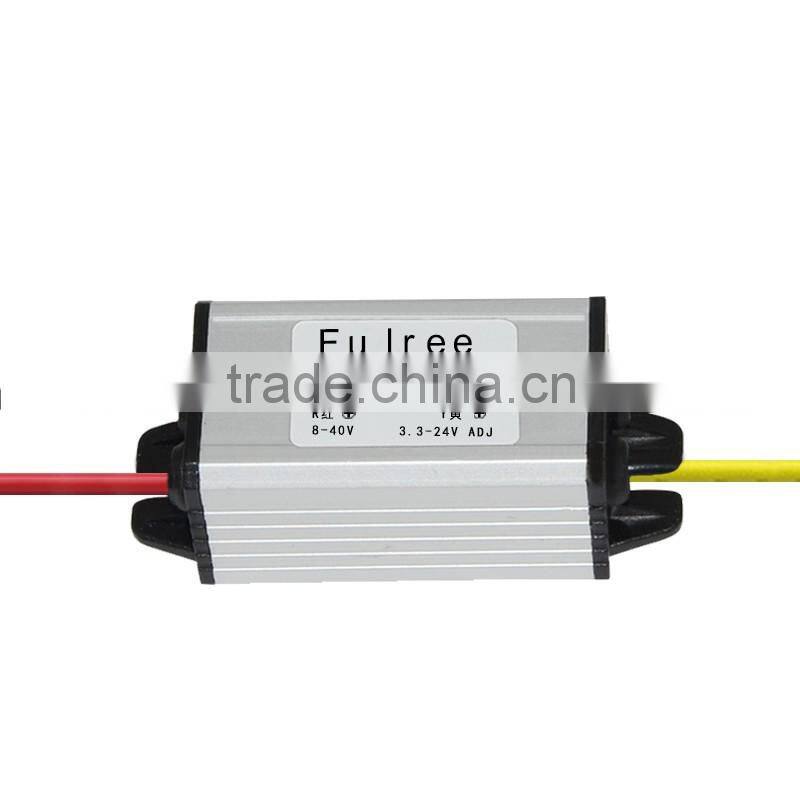

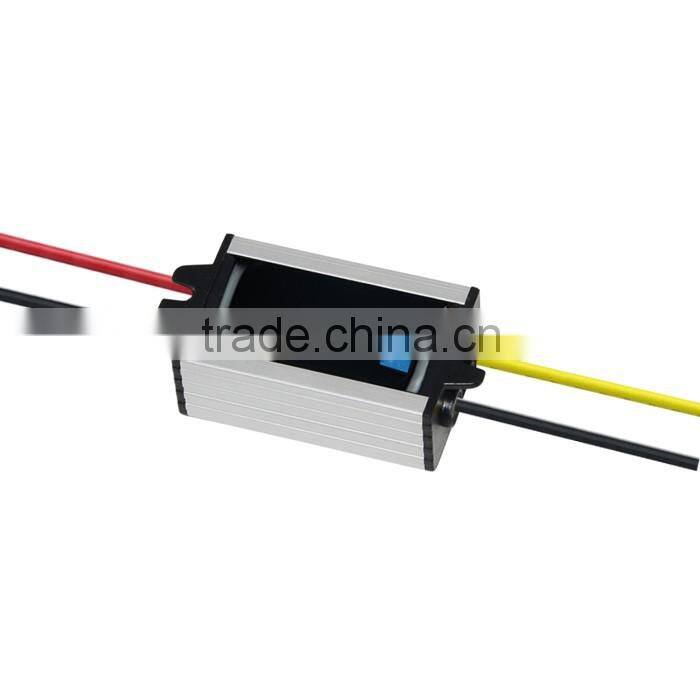

8-40v to 3.3-24v3a Dc-dc Step Down Adjustable Power Supply Buck Module, Dc-dc Step Down Converter
US$ 4.5 - 10
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
fulree
Model Number:
4003ADJ
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN/HONGKONG
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
8-22v to 1.5-15v Dc-dc Step Down Adjustable Power Supply Module, Dc-dc Step Down ConverterUS$ 3.5 - 9MOQ: 1 Piece -
Dc-dc Adjustable Power Supply Module, 8-35v to 1.5-24v5a Adjustable Buck Converter Step Down Module 5aUS$ 5.5 - 10.9MOQ: 1 Piece
-
DC-DC 10A Step-down Adjustable Converter Constant Voltage Constant Current Module, LED Driver ModuleUS$ 6.5 - 10MOQ: 1 Piece
-
New 12v to 24v2a48w Dc-dc Power Step up Converter, 12v to 24v Boost Module, Dc-dc Boost ConverterUS$ 8 - 12MOQ: 1 Piece
-
Waterproof 12v to 48v5a240w Boost Converter, 12v to 48v Dc-dc Converter,step up ModuleUS$ 12 - 18MOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
fulree
Model Number
4003ADJ
Output Power
1 - 50W
Output Type
Single
Size
45*25*21mm
Weight
80g
Input Voltage
8-40v
Output Voltage
3.3-24v adjustable
Type
DC/DC Converters
Output Frequency
0-400HZ
Output Current
3A Max
8-40v to 3.3-24v3a dc-dc step down adjustable power supply buck module, dc-dc step down converter
| Model | 4003ADJ |
| Input rated voltage | 12V24V |
| Input voltage range | 8-40V |
| Efficiency | 93% (half load), 91% (full load) |
| Output voltage | 3.3-24V adjustable(minimum pressure difference:3V) |
| Output current | 3A MAX |
| Output rated power |
15W |
| Output peak power |
18W |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Working temperature |
-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
| Module Properties |
non-isolated buck module(buck) |
| Rectification | synchronous rectification |
| Waterproof rating |
IP68 |
| Full load temperature rise: | 50°c |
| Protection |
Over-current, Over-temperature, Short-circuit protection, Auto-recovery when device is back to normal operating, waterproof IP68 design, anti-shock protection |
| Input Reverse Polarity Protection |
NONE( (Please Series diode at the input port.) |
| NW | 50G |

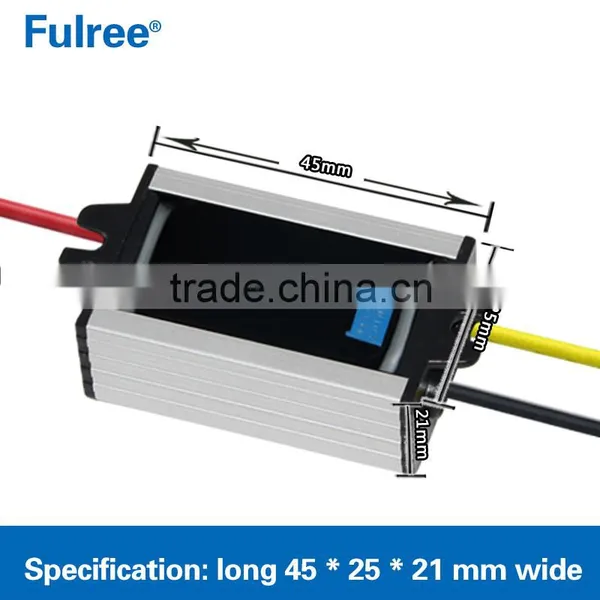

| Product size | 45*25*21mm |
Other DC-DC adjustable converter recommend |
1) 8-22v to 1.5-15v 3A max 2)8-35v to 1.5-24v 5A max (pls contact with our sales manager if need) |
|
Attention: >Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged | |
