Dc-dc Adjustable Power Supply Module, 8-35v to 1.5-24v5a Adjustable Buck Converter Step Down Module 5a

Dc-dc Adjustable Power Supply Module, 8-35v to 1.5-24v5a Adjustable Buck Converter Step Down Module 5a thumbnail-1
Dc-dc Adjustable Power Supply Module, 8-35v to 1.5-24v5a Adjustable Buck Converter Step Down Module 5a thumbnail-2
Dc-dc Adjustable Power Supply Module, 8-35v to 1.5-24v5a Adjustable Buck Converter Step Down Module 5a photo-1
Dc-dc Adjustable Power Supply Module, 8-35v to 1.5-24v5a Adjustable Buck Converter Step Down Module 5a photo-2
US$ 5.5 - 10.9 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
fulree
Model Number:
3005ADJ
Contact Supplier Request Quote Chat Now
Shenzhen Fulree Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN/HONGKONG
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name fulree
Model Number 3005ADJ
Output Power 1 - 50W
Output Type Single

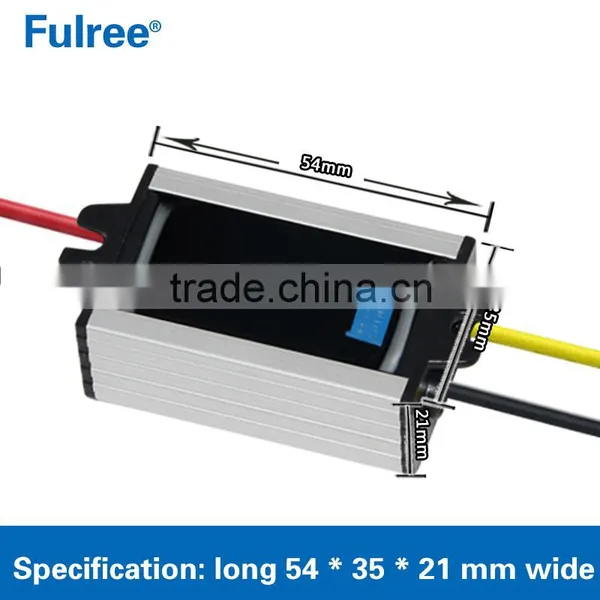

Size 54*35*21.5mm
Weight 80g
Input Voltage 8-35v
Output Voltage 1.5-24v adjustable
Type DC/DC Converters
Output Frequency 0-400HZ
Output Current 5A Max

dc-dc adjustable power supply module, 8-35v to 1.5-24v5a adjustable buck converter step down module 5a

Model 3005ADJ
Input rated voltage 12V24V
Input voltage range 8-35V
Efficiency 93% (half load), 91% (full load)
Output voltage 1.5-24V adjustable(minimum pressure difference:3V)
Output current 5A MAX
Output rated power
 25W
Output peak power
 30W
Voltage regulation < 1%
Load regulation < 2%
Working temperature

-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use,

or to enhance heat dissipation)
Module Properties

non-isolated buck module(buck)
Rectification synchronous rectification
Waterproof rating
 IP68
Full load temperature rise:    50°c
Protection Over-current, Over-temperature,

Auto-recovery when device is back to normal operating,

waterproof IP68 design, anti-shock protection
Input Reverse Polarity Protection
 NONE( (Please Series diode at the input + in need)
Short-circuit protection
 NONE(please series fuse at the input + in need)
NW 50G
Product size  45*25*21mm

Other DC-DC adjustable converter recommend

1) 8-22v to 1.5-15v 3A max

2)8-40v to 3.3-24v 3A max

(pls contact with our sales manager if need)



 Attention:

>Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.






dc-dc adjustable power supply module, 8-35v to 1.5-24v5a adjustable buck converter step down module 5adc-dc adjustable power supply module, 8-35v to 1.5-24v5a adjustable buck converter step down module 5a

dc-dc adjustable power supply module, 8-35v to 1.5-24v5a adjustable buck converter step down module 5a
