Specifications
1.MINI GPS CHIP TRACKER2.For GSM GPRS GPS System tracking Device CF104
3.Waterproof Unit long standby battery 60 daysc
Function:
| No. | Function | No. | Function | No. | Function |
| 1 | Startup | 2 | Location based service(LBS) | 3 | SOS button(You can choose no this function) |
| 4 | Initialization | 5 | Monitor(Voice Surveillance | 6 | Low battery alert |
| 7 | Change the password | 8 | Storage | 9 | State Checking |
| 10 | Authorization | 11 | Data load | 12 | IMEI checking |
| 13 | Single locating | 14 | Geo-fence | 15 | Terminal(local) Time Setting |
| 16 | Get location in real street/address name | 17 | Movement alert | 18 | GPRS setting |
| 19 | Auto track | 20 | Overspeed alert | 21 | Modes switch between "SMS" and "GPRS" |
| 22 | Setting up APN | 23 | Web platform and PC installation tracking software | 24 | GSM/GPS LED indicator |
| 25 | Sleep function | 26 | Cut off the Oil and Power system(You can choose no this function) | 27 | Resume the Oil and Power system((You can choose no this function)) |
| 28 | Waterproof shell | 29 | Built-in large capacity battery to standby 60 DAYS | 30 | Shock sensor alarm(Shock sensor interior) |
| 31 | Tracker's hardware resetting | 32 | IP and Port Setup | 33 |
Advantage :
1.This mini gps chip tracker is a new product based on the GSM/GPRS network and GPS satellite positioning system,which set multiple functions of security, positioning,monitoring surveillance,emergency alarms and tracking in its entirely.It can track and monitor remote target by SMS or internet
2.Long battery life gps tracker
|
Waterproof |
Locating and tracking service for cars trucks,container trucks,special vehicles, cargo and criminal investigation officer |
Cut off the Oil and Power system Resume the Oil and Power system ()()() () |
|

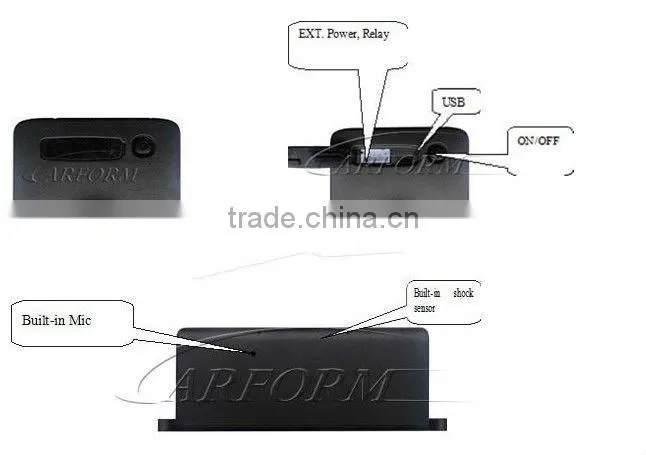

Built in Shock Sensor alarming |
Built-in large capacity battery to standby 60 DAYS |

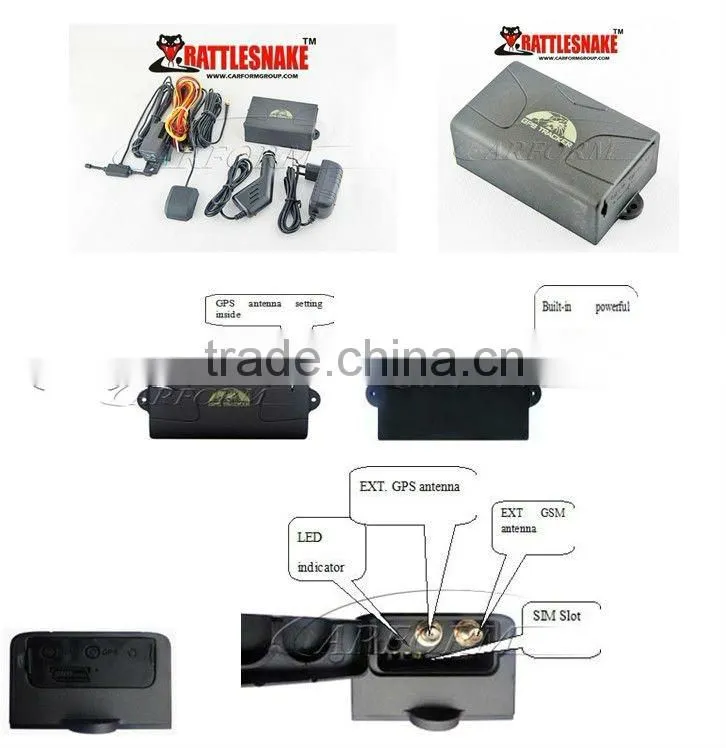

Built-in GPS/GSM antenna |
About us
|
We own highclass R&D and the production facility , as well as the strong technology capacity . Such as SMT, ICT ,and any other quality inspection system , which put forwards the industrial design, circuit design., productionwith moldmaking , and software &hardware develop. Strictly governed by ISO9001 Standard
2.Up to now, our products obtained CE certificate.We always take the principle of "Quality and service are the life of the product", till now our products are exportedto more than 20 countries under our strict quality control and high level service |
|
|
|
As a specialize manufactureand exporter for Automotive Electornic Accessories in China ,for example ,DVR GPS Natigator and Tracker,Car alarm,CANBUS specialist and OBD ,Car parking sensor,Car central locking system ,Motorcycle alarm & Motorcycle HID,different car sensors etc. High product quality,reasonable prices |

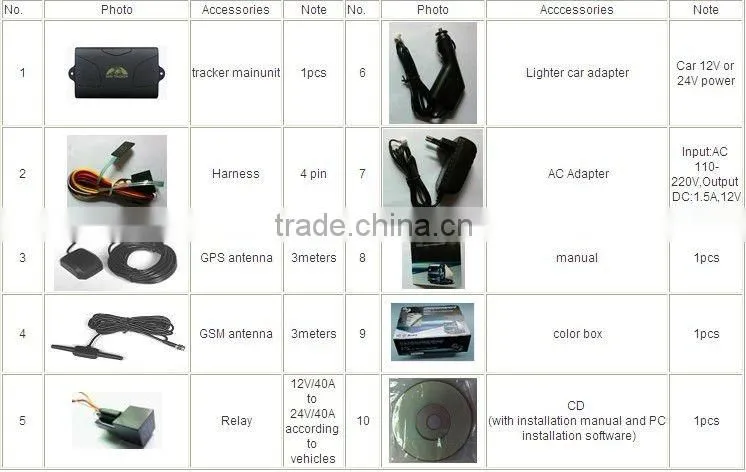

long battery life gps tracker the whole kits accessories
Packing:
|
|
Size | QTY | Weight |
| Color box | 13cm*19cm* 5.8cm | 1pcs | 0.9kgs |
| Shipping carton | 53.4cm*39.9cm*30.5cm | 40pcs | 36.1kgs |
| 20GP container |
28CBM | 17230pcs | 15507kgs |
Specification
| Content | Specs. | Content | Specs. | Content | Secs. |
| Dim. | 94mm*60mm*38mm | GPS sensitivity | -159dBm | GPS chip | SIRF3 chip |
| Weight | 300g | GPS accuracy | 5m | Storage Temp. | -40°C to +85°C |
| Network | GSM/GPRS | GPS Start time | Cold status:45s Hot status 1s |
Operation Temp. | -20°C to +65°C |
| Band | 850/900/1800/1900Mhz | Voltage of car power system | DC 12-24V input | Humidity | 5%-95% non-condensing |
| GSM/GPRS Module | SIM900B | Battery | 3.7V 6000mA/h Polymer battery | Operating Current | Sleep Current:4mA ± 1mA;GSM operating Current:54mA ± 3mAGPRS Current(data transfer):60mA ± 5mA |
| Charge current | 1.2A ± 0.2A |
Charge time | 5h | Standby time | GSM sleep mode:1500h |
1-Working days(not including holiday) usually 3-7days by DHL/UPS/TNT/EMS
if your order is less than 10pcs.
If your order more than 100pcs,
it takes 7-10 days to prepare well, if the order QTY is more than 500sets,
it takes 20-35 days to finish the production, for more QTY, pls check
with our sales about the exact delivery time before sent the payment to us.
2-By China Post Air Mail ,usually need 30-50 working days
to arrive at buyer’s local post office.
3-If your goods will be shipped by sea or by air,
we will send you the packing list and invoice before shipment,
then you can inform us your shipping fowardrer in China,
or you can let us arrange our shipping forwarder to ship the goods for you.
Payment
1-T/T
2-L/C
3-WESTER UNION
4-PAYPAL
5-ALIPAY (welcome to buy the sample or small order online)
