Specifications

1.Built-in GSM, GPS antenna
2.Support GPS and LBS
3.Tiny size,built-in 1030MA polymer battery , easy to hide

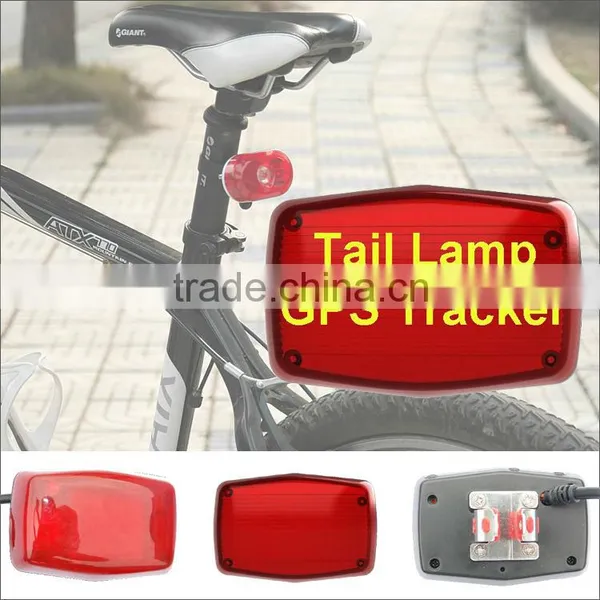

 2014 Taillight shape, easy to hide, waterproof design and outdoor installation GPS tracker 304B used for motorcycle and bicycle



Summary

Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or internet

 Features

• Taillights shape, easy to hide, waterproof design, and outdoor installation.
• Built-in GSM, GPS antenna.
• Support GPS and LBS (location based service) double tracking solution
• Support SMS / GPRS / Internet Network data transmission (GPRS/Internet instructions includes in CD in package
• Support configures the settings remotely1.2.5 Set multiple functions of security, tracking, monitoring surveillance, emergency alarms  and management in its entirety.



Applications

Used widely for motorcycle and other moving objects tracking





Hardware Description

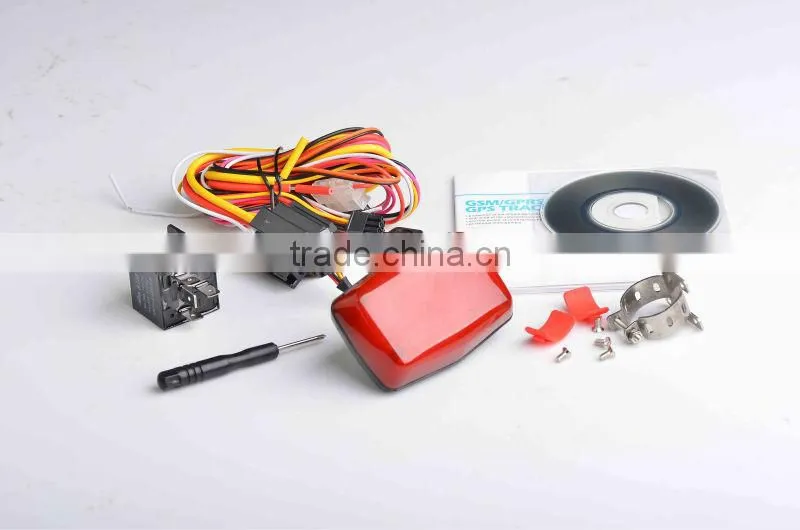

Accessories( Different type at different prices)

This device is divided into the following two types according the accessories and its function:

Type A: 6 PIN hardness, tracking, monitoring, ACC, cut off oil and power.

Type B: Add remote controller to ARM & DISARM on the basis of type A.





Specs

Content	Specs
Dim.	7.5×5.0×2.4cm
Weight	75g
Network	GSM/GPRS
Band	850/900/1800/1900Mhz
GPS sensitivity	-159dBm
GPS accuracy	5m
Time To First Fix	Cold status  45s Warm status  35s  Hot status  1s
Car charger	12V~24V
battery	Chargeable 3.7V 1000mAh Li-ion battery
Storage Temp.	-40°C to +85°C
Operation Temp.	-20°C to +70°C
Humidity	5%--95% non-condensing

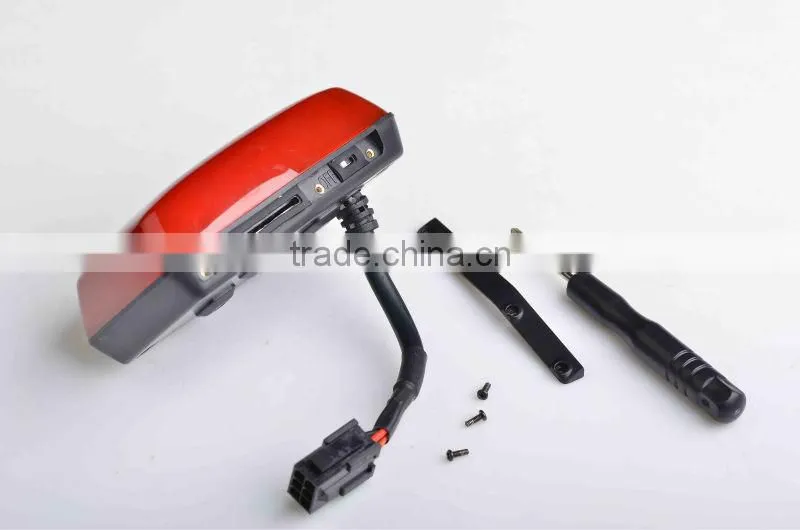

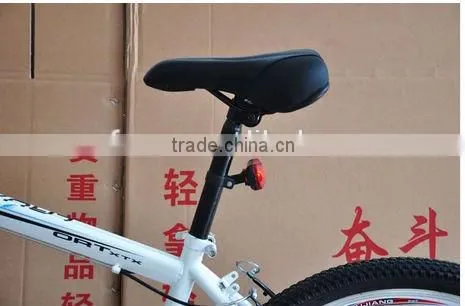

Detail photo
