Specifications
1.GPS/GSM car tracker alarms CF1072.Car alarm function&Fuel level measurement
3.Oil leadage or theft alarm
Function:
| No. | Function | No. | Function | No. | Function |
| 1 | Startup | 2 | Location based service(LBS) | 3 | SOS button |
| 4 | Initialization | 5 | Monitor(Voice Surveillance | 6 | Low battery alert |
| 7 | Change the password | 8 | Storage | 9 | State Checking |
| 10 | Authorization | 11 | Data load | 12 | IMEI checking |
| 13 | Single locating | 14 | Geo-fence | 15 | Terminal(local) Time Setting |
| 16 | Get location in real street/address name | 17 | Movement alert | 18 | GPRS setting |
| 19 | Auto track | 20 | Overspeed alert | 21 | Modes switch between "SMS" and "GPRS" |
| 22 | Setting up APN | 23 | Web platform and PC installation tracking software | 24 | GSM/GPS LED indicator |
| 25 | Power off alarm | 26 | Cut off the Oil and Power system | 27 | Resume the Oil and Power system |
| 28 | Arm/disarm | 29 | Door alarm | 30 | Shock sensor alarm |
| 31 | ACC alarm | 32 | Silent mode | 33 | Alarm without GSM network service |
| 34 | Tracker's hardware resetting | 35 | IP and Port Setup | 36 | Fuel alarm(Should to buy the fuel sensor) |
| 37 | Temperature alarm(Should to buy the temperature sensor) | 38 | Support Camera(Should to buy the camera) | 39 | Support SD card(Should to buy the SD card, MAX. capacity is 4G) |
| 40 | Remote control function | 41 | Alarming LED indicator | 42 | View photos on cell phone |
| 43 | Dailer | 44 | Find vehicle via remote control | 45 | Sound and light Deterrence |
| 46 | Bonnet alarm | 47 | Footbrake alerts | 48 | Alerts Resend |
| 49 | Car trigger Memory/informing | 50 | Auto rearming/Auto arming | 51 | Automatic Central Locking System |
| 52 | Park warning | 53 | Modes switch "TRACK" "MONITOR" and "CALL" |

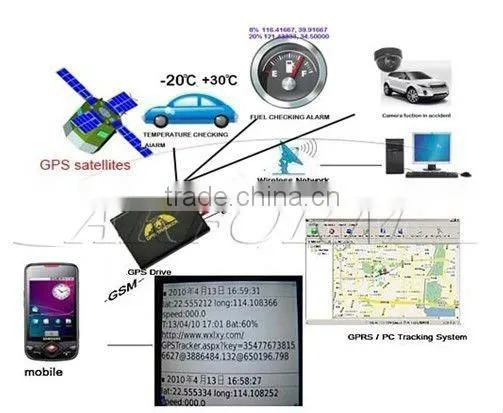

And there is 4 tracking solutions for gps tracker
- online gps sim card tracker
Advantage :
This gps tracker is a new product based on the GSM/GPRS network and GPS satellite positioning system,which set multiple functions of security, positioning,monitoring surveillance,emergency alarms and tracking in its entirely.It can track and monitor remote target by SMS or internet. Used widely for positioning and tracking vehicle and other moving bojects.
|
SMS/GPRS dual-mode switching |
Cut off the Oil and Power system Resume the Oil and Power system |
Temperature detection(Should to buy the temperature sensor |
|
Photo Snapshot automactially upon alarm trigger and view photo by cell phone or web server(Should to buy the camera) |
With all the basic car alarm function. |
Door,Shock Sensor,ACC alarming |
|
Fuel level measurement,Oil leakage or theft alarm(Should to buy the fuel sensor) |
Remote control system |
About us
|
We own highclass R&D and the production facility , as well as the strong technology capacity . Such as SMT, ICT ,and any other quality inspection system , which put forwards the industrial design, circuit design., productionwith moldmaking , and software &hardware develop. Strictly governed by ISO9001 Standard
2.Up to now, our products obtained CE certificate.We always take the principle of "Quality and service are the life of the product", till now our products are exportedto more than 20 countries under our strict quality control and high level service |
| |
|
As a specialize manufactureand exporter for Automotive Electornic Accessories in China ,for example ,DVR GPS Natigator and Tracker,Car alarm,CANBUS specialist and OBD ,Car parking sensor,Car central locking system ,Motorcycle alarm & Motorcycle HID,different car sensors etc. High product quality,reasonable prices |

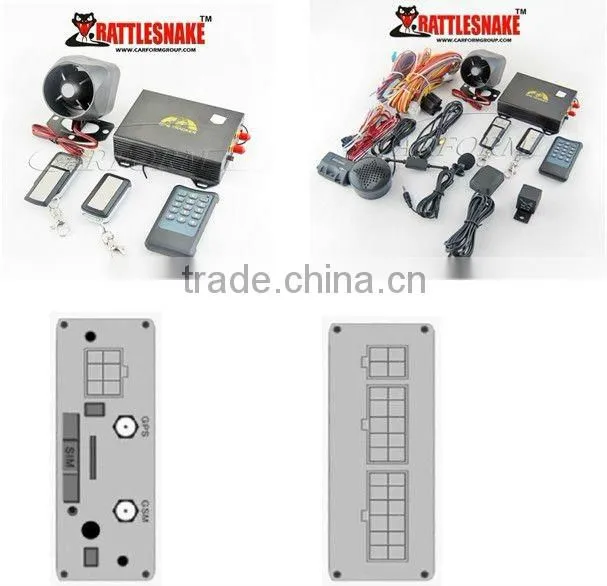

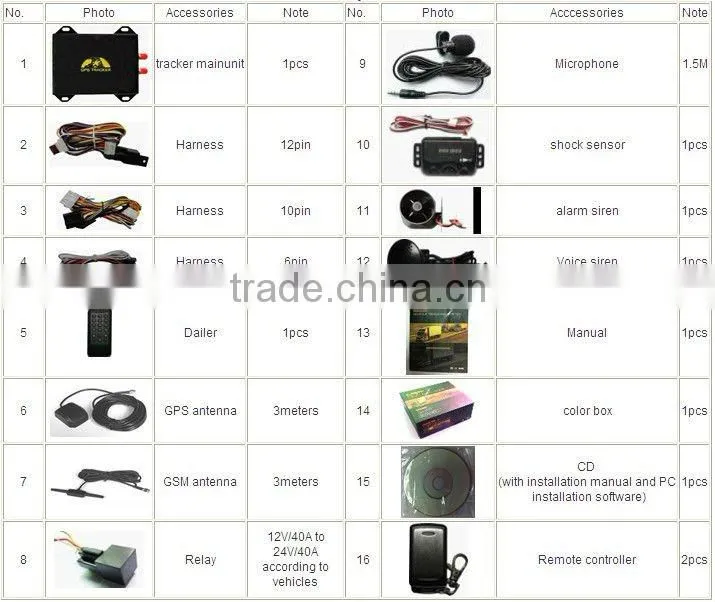

CF107 gps tracker whole kits Includes
This gps tracker not inclue need to order extra
Specification
| Content | Specs. | Content | Specs. | Content | Secs. |
| Dim. | 110*82mm*28mm | GPS sensitivity | -159dBm | GPS chip | SIRF3 chip |
| Weight | 220g | GPS accuracy | 5m | Storage Temp. | -40°C to +85°C |
| Network | GSM/GPRS | GPS Start time | Cold status:45s Warm status:35s Hot status 1s |
Operation Temp. | -20°C to +65°C |
| Band | 850/900/1800/1900Mhz | Voltage of car power system | 12 V | Humidity | 5%-95% non-condensing |
| GSM/GPRS Module | SIM900B | Backup battery | Chargeable changeable 3.7V 800Ah Li-ion battery | Interface | 15 digital outputs;8digital inputs; 1 analog input; 1 single BUS; 1 serial port |
1-Working days(not including holiday) usually 3-7days by DHL/UPS/TNT/EMS
if your order is less than 10pcs.
If your order more than 100pcs,
it takes 7-10 days to prepare well, if the order QTY is more than 500sets,
it takes 20-35 days to finish the production, for more QTY, pls check
with our sales about the exact delivery time before sent the payment to us.
2-By China Post Air Mail ,usually need 30-50 working days
to arrive at buyer’s local post office.
3-If your goods will be shipped by sea or by air,
we will send you the packing list and invoice before shipment,
then you can inform us your shipping fowardrer in China,
or you can let us arrange our shipping forwarder to ship the goods for you.
