Vehicle Realtime Gps Tracker System

Vehicle Realtime Gps Tracker System thumbnail-1
Vehicle Realtime Gps Tracker System photo-1
US$ 68 - 74 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Type:
Gps Tracker
Use:
Automotive
Screen Size:
Other, No
Contact Supplier Request Quote Chat Now
Guangzhou Carform Electronics Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Gps Tracker
Use Automotive
Screen Size Other, No
Function Other, Auto Tracker
Place of Origin Guangdong, China
Brand Name BATTLESNAKE
Model Number CF106-B

Specifications

1.Mini gps chip tracker
2.GSM GPRS GPS System tracking Device CF106-B
3.Fuel system checking alarm&Temperature sensor

Function:

No. Function No. Function No. Function
1 Startup 2 Location based service(LBS) 3 SOS button
4 Initialization  5 Monitor(Voice Surveillance 6 Low battery alert
7 Change the password 8 Storage 9 State Checking
10 Authorization  11 Data load 12 IMEI checking
13 Single locating  14 Geo-fence  15 Terminal(local) Time Setting
16 Get location in real street/address name 17 Movement alert 18 GPRS setting
19 Auto track  20 Overspeed alert  21 Modes switch between "SMS" and "GPRS"
22 Setting up APN  23 Web platform and PC installation tracking software  24 GSM/GPS LED indicator
25 Power off alarm  26 Cut off the Oil and Power system 27 Resume the Oil and Power system
28 Arm/disarm  29 Door alarm 30 Shock sensor alarm
31 ACC alarm 32 Silent mode 33 Alarm without GSM network service
34 Tracker's hardware resetting  35 IP and Port Setup 36 Fuel alarm(Should to buy the fuel sensor)
37 Temperature alarm(Should to buy the temperature sensor)  38 Support Camera(Should to buy the camera)  39 Support SD card(Should to buy the SD card, MAX. capacity is 4G)
        40 Remote control function



And there is 4 tracking solutions for Vehicle Realtime gps tracker system



-SMS tracking on cellphone with a googlemap link to view current location on map on cellphone screen.



-Get absolute address by SMS



-PC Installation software tracking.



-Web server online tracking

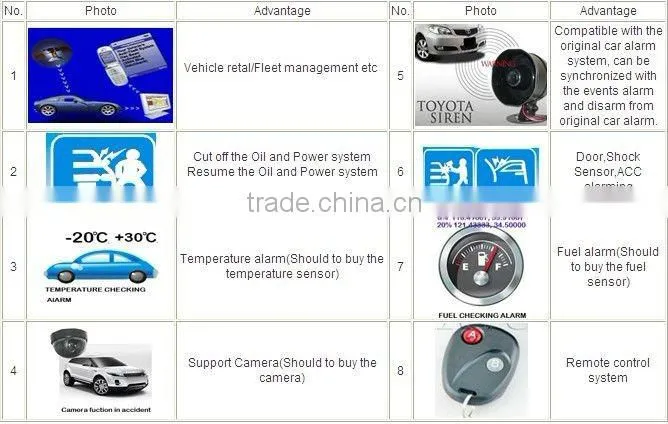

Advantage :

This vehicle gps tracker is a new product based on the GSM/GPRS network and GPS satellite positioning system,which set multiple functions of security, positioning,monitoring surveillance,emergency alarms and tracking in its entirely.It can track and monitor remote target by SMS or internet



Vehicle Realtime gps tracker system






 Vehicle Realtime gps tracker system



About us

We own highclass R&D and the production facility , as well as the strong technology capacity . Such as SMT, ICT ,and any other quality inspection system , which put forwards the industrial design, circuit design., productionwith moldmaking , and software &hardware develop. Strictly governed by ISO9001 Standard



2.Up to now, our products obtained CE certificate.We always take the principle of "Quality and service are the life of the product", till now our products are exportedto more than 20 countries under our strict quality control and high level service

 Vehicle Realtime gps tracker system

As a specialize manufactureand exporter for Automotive Electornic Accessories in China ,for example ,DVR GPS Natigator and Tracker,Car alarm,CANBUS specialist and OBD ,Car parking sensor,Car central locking system ,Motorcycle alarm & Motorcycle HID,different car sensors etc.

High product quality,reasonable prices



 GPS106B vehicle gps tracker system whole kits accessories


 Vehicle Realtime gps tracker system



Not inclue need to order extra



Vehicle Realtime gps tracker system



Specification

Content Specs. Content Specs. Content Secs.
Dim. 110*82mm*28mm GPS sensitivity -159dBm GPS chip SIRF3 chip
Weight 220g GPS accuracy 5m Storage Temp. -40°C
to +85°C

Network GSM/GPRS GPS Start time Cold status:45s
Warm status:35s
Hot status 1s		 Operation Temp. -20°C
to +65°C

Band 850/900/1800/1900Mhz Voltage of car power system 12 V Humidity 5%-95% non-condensing
GSM/GPRS Module SIM900B Backup battery Chargeable changeable 3.7V 800Ah Li-ion battery  Interface 15 digital outputs;8digital inputs; 1 analog input; 1 single BUS; 1 serial port
Delivery:

1-Working days(not including holiday) usually 3-7days by DHL/UPS/TNT/EMS

if your order is less than 10pcs.

If your order more than 100pcs,
it takes 7-10 days to prepare well, if the order QTY is more than 500sets,

it takes 20-35 days to finish the production, for more QTY, pls check
with our sales about the exact delivery time before sent the payment to us.
2-By China Post Air Mail ,usually need 30-50 working days

to arrive at buyer’s local post office.
3-If your goods will be shipped by sea or by air,

we will send you the packing list and invoice before shipment,

then you can inform us your shipping fowardrer in China,

or you can let us arrange our shipping forwarder to ship the goods for you.

Shipping

Vehicle Realtime gps tracker system

Payment

Vehicle Realtime gps tracker system

1-T/T
2-L/C
3-WESTER UNION
4-PAYPAL
5-ALIPAY (welcome to buy the sample or small order online)
