Home > Products > Machinery and Spare Parts > YFMC-720A/920A/1100A Manual Laminating

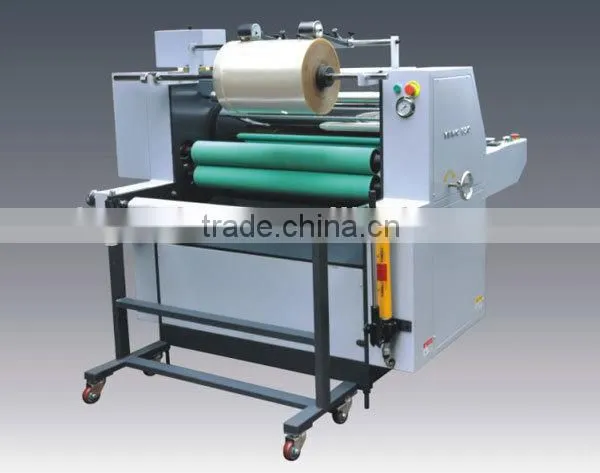

YFMC-720A/920A/1100A Manual Laminating
- 5 Set / Sets per Month
- Shanghai
- T/T Credit Card
-
Leizhan Disc sludge thickener for paper pulp making production line
-
2013HOT SELL Stainless steel structure Disc thickener for paper pulp making production line
-
Disc pulp filter machine of fluting and kraft paper production line
-
Leizhan waste paper recycle equipment ZNP series disc thickener/paper processing equipment/paper pulp machinery
-
disc thickener/paper pulp industrial use
-
disc thickener used for washing and thickening/paper making industry
Product Details
| Condition: | New | Type: | Laminating Machine | Computerized: | Yes |
| Place of Origin: | Shanghai, China | Brand Name: | GAOHE | Model Number: | GH-1000CC |
| Voltage: | 380VAC | Power(W): | 16KW | Dimension(L*W*H): | 6620*1575*1500mm |
| Weight: | 2000KGS | Warranty: | 1 YEAR | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
vApplications: To suit two kinds of film:pre-glued film and glueless film
Roller Diameter: 268mm/320mm
Configuration:
1.SCHNEIDER frequency converter is equipped for infinitely variable speed, and operator can change the machine’s speed easily and guarantee the machine’s running stable.
2.One-piece construction design makes the machine run more stably, and lengthens the machine’s lifetime.
3.Manual paper feeding.
4.Magnetic regulating plate can be adjusted easily to regulate manual paper feeding.
5.High precision of chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
6.Hydraulic pressuring system provides big and steady pressure to guarantee good laminating quality.
7.Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
8.Film perforating wheel perforates film edge to make the separation of laminated paper easy.
9.Laminated paper is rolled up automatically by the winding spindle. Winding speed is adjustable upon.
Technical Parameter:
| Model | YFMC-720A | YFMC-920A | YFMC-1100A |
Max aminating width | 680mm | 880mm | 1040mm |
Max laminating Speed | 0-30 m/min | 0-30 m/min | 0-30 m/min |
Laminating temprature | 60-130°C | 60-130°C | 60-130°C |
Power | 11kw | 13kw | 16kw |
| Voltage | 380V | 380V | 380V |
Total Weight | 600kg | 700kg | 900kg |
Overall Dimensions | 2100*1300*1600mm | 2100*1500*1600mm | 2100*1700*1600mm |
Contact Us
- Shanghai Gaohe Imp. & Exp. Co., Ltd.
- Contact nameVincent Xie
- Phone86-21-62611152
- AddressRm. 208, Bldg. 5, No. 100, Zixiu Rd.
-
