Home > Manufacturing & Processing Machinery > Paper Machinery > Paper Making Machine > Flute Laminator

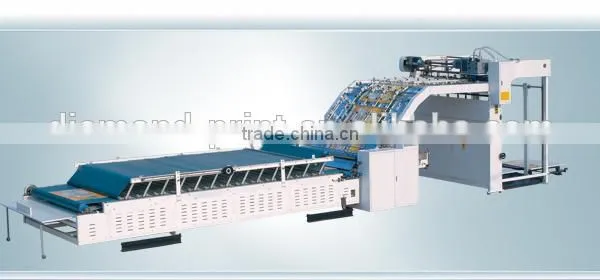

Flute Laminator

Name: Flute Laminator
Brand: DIAMOND
SKU: 106069955
Availability: InStock

US$ 38,800 - 40,500 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Corrugating Machine

Computerized:

Yes

Contact Supplier Request Quote Chat Now

Shanghai ProMega Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Corrugating Machine

Computerized Yes

Place of Origin Shanghai, China

Brand Name DIAMOND

Model Number PML 1300

Voltage 380V

Power(W) 13.5KW

Dimension(L*W*H) 12800X2250X2655mm

Weight 10000KGS

Certification CE SGS

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Front led passing board
Faster speed
Accurate position
Double servo motors
automatic glue supply recyclable glue circulation

1. PM Series Automatic Flute Laminator adopts unique pressing spring front lay registration design compliant with PLC control system which makes machine run at high lamination precession and low rate of breaking down.

2. The machine uses frequency converter for speed regulation, PLC central control, simulation to digit program system.

3. Double servo motors are used to control bottom sheets to get to the front lay timely and accurately. Thus the machine accuracy is ensured even in operation and adjusting conditions.

4.Balance-tested rollers, tight assembling technique, plus timing belts driving mechanic system makes the machine run at low noise with high precision.

5.The machine adopts automatic glue supply and recyclable glue circulating system.Self-developed high-strength feeder compliant with high configuration electric system makes the machine run at low malfunction.

6.The electric parts used are all world wide available brand or well-known Chinese brand.

7.All material are inspected according to ISO-9001 standard and the key parts such as bearings are imported ones.

8.The face sheet for this machine can be 150-450 GSM. The bottom sheet can be A, B, C, D,E,F flute corrugated sheet as well as 3 ply board or 5 ply card board with the maximum thickness not more than 8mm.

Specifications:

Model	PML-1300	PML-1450	PML-1650
Maximum size	1300×1300mm	1450×1300mm	1650×1450mm
Minimum size	400×400mm	400×400mm	400×400mm
Appropriate paper	(Top Sheet)150-450g/SQM (Card) (Bottom Sheet)+250g/SQM ABCDEF(Flute)	(Top Sheet)200-450g/SQM (Card) (Bottom Sheet)+250g/SQM ABCDEF(Flute)	(Top Sheet)200-450g/SQM (Card) (Bottom Sheet)+250g/SQM ABCDE(Flute)
Max. Speed	6000Sheets/h	6000Sheets/h	6000Sheets/h
Total power	13.5kw	13.5kw	15kw
Overall dimension	12800×2250×2655mm	12800×2400×2655mm	16000×2650×2700mm
