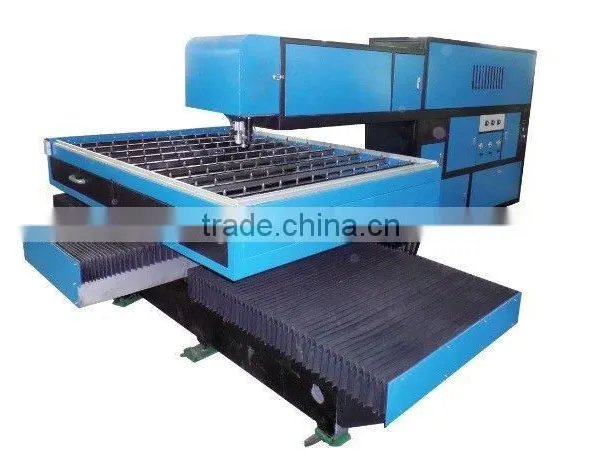

HIGH-END VERSION LASER CUTTING MACHINE FOR DIE BOARD MAKER
MPS-DS, the high-end version of medium power laser cutting machine, adopts the principle of constant light path design.it keeps laser in the process of device running, materials are fixed on the platform with the moving platform, thus, it can ensure the stability of the optical path.
The advantage of this laser cutting machine:
1. The laser cutting machine equipped with the laser generators produced by the factory itself.
2. Imported precision ball screw and imported servo drives, Running high precision;
3. The open processing platform can improve the plank usage as much as possible;
4. Sealed machine tool structure makes the precision deiving part not easy to be contaminated;
5. Unique exhaust system also can improve the processing environment.
PARAMETERS OF APPARATUS | |||
Model |
MPS-DS-1212-S400 |
MPS-DS-1212-S600 |
MPS-DS-1212-S800 |
Laser type |
Co2 direct-current excitation glass apparatus |
||
Laser wavelength |
10.6um |
||
Working area |
1250x1250mm |
||
Positioning accuracy |
±0.06mm |
||
Repeated Positioning accuracy |
±0.02mm |
||
Power supply |
220V ±5% 50Hz |
||
The total power |
10kw |
12kw |
14kw |
Total weight |
1.5T |
1.6T |
1.7T |
Area of size |
3800mmx5000mmx1700mm |
||

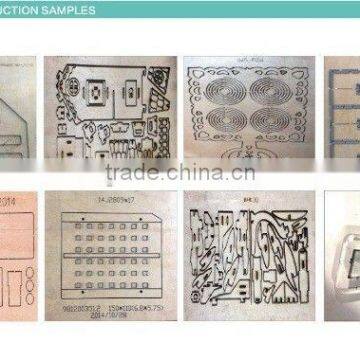

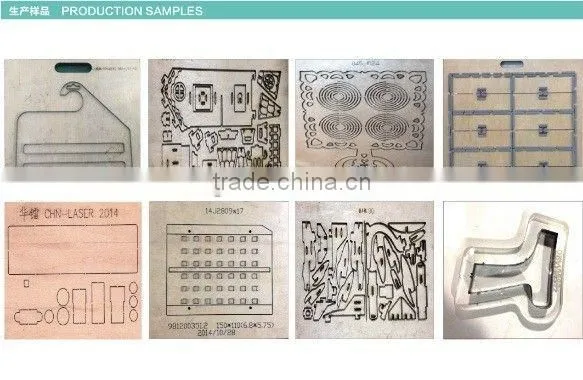

Our laser equipment is mainly used in automatic packaging and printing, stickers, electronic industry such as high precision die-cutting plate processing. This machine has leading technology in the domestic market. we keep improving all the idea of independent development and design, change the situation that middle power laser depends on import for a long time in history, small investment can do high-end laser die board.
Without preheating, equipment can directly start running; cost-effective, stable performance; operation process does not need to add carbon dioxide gas, easy maintenance, low operating cost.
Device Configuration
Mechanical optical shutter system ( provide power procssing mode stability)
The oiling system ( make qequipment maintenance becomes more simple)
Pneumatic splint system (maximize the use rate of plywood)
Parameters of the Main Material | |||
Model |
MPS-DS1218-S400 |
MPS-DS1218-S600 |
MPS-DS1218-S800 |
20mm-22mm Coated Birch Board |
10-12 |
15-18 |
24-28 |
17mm-18mm Common poplar board |
24-27 |
36-40 |
48-54 |
6mm-10mm PVC |
40-70 |
90-120 |
150-180 |
2mm-3mm Carbon steel |
50-70 |
90-120 |
150-180 |
