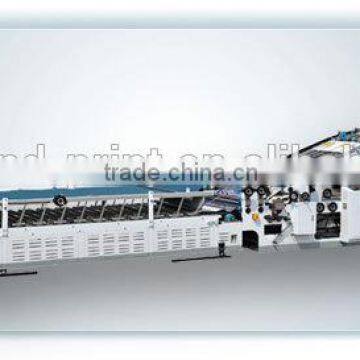

Flute Laminator

Name: Flute Laminator
Brand: DIAMOND
SKU: 106069961
Availability: InStock

US$ 38,800 - 40,500 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Laminating Machine

Computerized:

Yes

Contact Supplier Request Quote Chat Now

Shanghai ProMega Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Laminating Machine

Computerized Yes

Place of Origin Shanghai, China

Brand Name DIAMOND

Model Number PMP 1300

Voltage 380/3 PHASE

Power(W) 13.5KW

Dimension(L*W*H) 14000X2300X2700MM

Weight 6800 KGS

Certification CE SGS ISO9001

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

converter for speed regulation, PLC central control
Double servo motors
glue supply and recyclable glue circulating system

Performance of the machine:

1. PMP Series Automatic Flute Laminator adopts chain pusher and back registration system together with spring blade side lay and vacuum sucking conveying system makes this series of machine fit for a larger range of paper, high precision while remaining the features of easy operation and maintenance.

2. The core designed rubber roller together with knurled steel roller enhances the evenness of gluing, strength of stickiness, as well as lowering the production cost.

3. Balance-tested rollers, tight assembling technique, plus timing and tooth belt driving mechanic system makes the machine run at low noise with high precision.

4. The machine adopts automatic glue supply and recyclable glue circulating system.

5. Self-developed high-strength feeder compliant with high configuration electric system makes the machine run at low malfunction and stable. The electric parts used are all world wide available brand or well-known Chinese brand.

6. All material are inspected according to ISO-9001 standard and the key parts such as the harmonic gear and bearings are imported ones.

7. The bottom sheet for this machine can be A, B, C, D, E, F flute corrugated sheet. It can do 3 or 5 ply board to sheet lamination or board to board lamination. The range for top paper can be 200-600 GSM with top paper advance or alignment function.

Specifications:

Model	PMP-1300	PMP-1450	PMP-1600
Maximum size	1300×1100mm	1450×1100mm	1600×1450mm
Minimum size	350×350mm	350×350mm	450×450mm
Laminate precision	≤±1.5mm	≤±1.5mm	≤±1.5mm
Speed	6000Sheets/h	6000Sheets/h	6000Sheets/h
Total power	12kw	12kw	13kw
Length	12.5m	12.5m	15m
Total weight	6.8T	7.2T	8.0T
