folding and gluing machine
Introduction

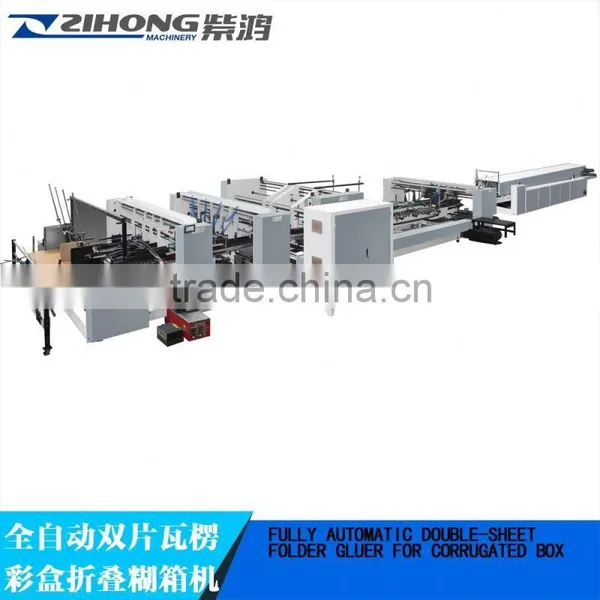

ZH-580PC is a multi function model,suitable for card board,E flute corrugated board,can di two fold,four
fold,and bottom lock.This model has correction device prefolding deivce and bottom lock device.Can make
four corner six corner box by adding sprary glue system.Has UV destroying device and dust remove device
for better gluing effect.
Technical Parmeters
Model |
ZH-580PC |
Suitable material |
Card board,E flute corrugated board |
Feeding method |
Automatic continuous feeding |
Max mechanical speed |
350m/min |
| Overall dimension |
14000*1550*1450mm |
| Weight |
6.5T |
| Power consumption |
11.8KW |
| Glue type | Solvent |
Paper Alignment System:
- Automatic alignment system to correct the paper feeding,avoding the paper going to sides.
- UV destroying deivce and dust remove device for better gluing effect.
Bottom Lock Section
- Big-volume design,when the machine is running at high speed,the glue will not go out or leaking .Optional
- bottle is good for long time operation.
- Lock-bottom assembly mechanism with high elastic hookers is of deal design,fast and easy operation.
:

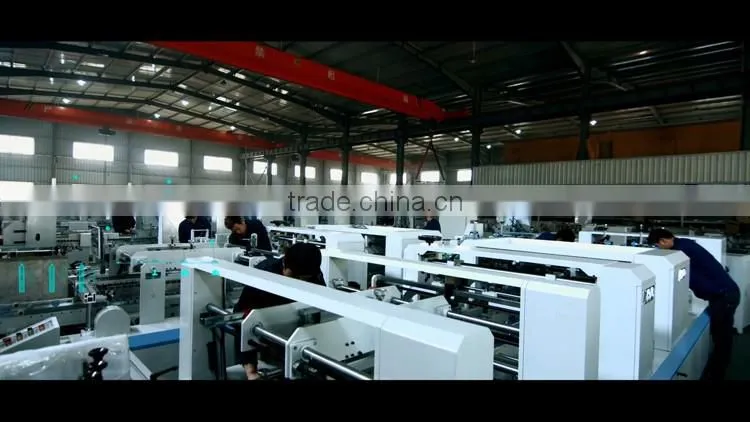

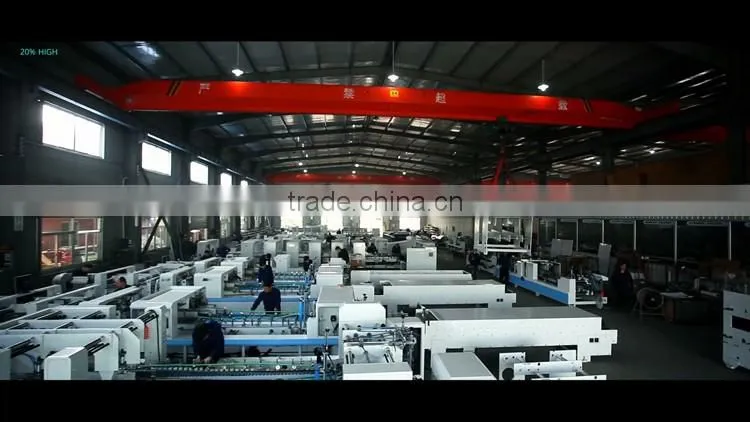

About Factory
Warranty Service:
Machines are new (or unused) and the guarantee period will be given thirteen months from shipment date. During
this period, the seller will offer free maintenance and free spare parts that caused by the machine’s quality,
but the buyer must pay the courier cost. Parts damaged because of mishandling and consumable parts are not
covered by any warranty.
