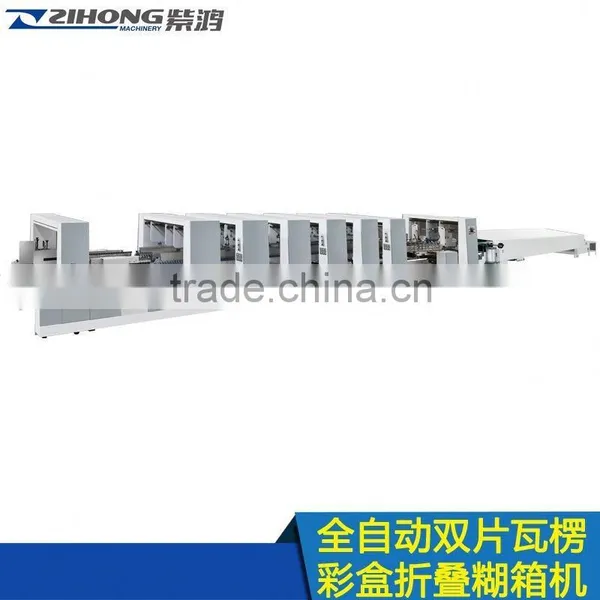

Help CenterZH-780PC-China High Quality 4 & 6 Corner Cardboard Corrugated Box Folder Gluer Machinemodular Type
Related Products
-
ZH-780PC Folder Machine To Make Cardboard Currogated Boxesmodular TypeUS$ 45,693 - 45,693MOQ: 1 Set -
ZH-580PC-Automatic 4 & 6 Corner Box Cardboard Corrugated Box Folding Gluing MachinegroupingUS$ 45,693 - 45,693MOQ: 1 Set
-
ZH-580PC -Automatic High Speed 4 & 6 Corner Box Cardboard Corrugated Box Making MachinegroupingUS$ 45,693 - 45,693MOQ: 1 Set
-
ZH-580AC-4/6 Corner Corrugated Pizza Box Folding Gluing Machine Modular TypeUS$ 45,693 - 45,693MOQ: 1 Set
-
ZH-780AC Express Folder Gluer Machine 6 Cornersmodular TypeUS$ 45,693 - 45,693MOQ: 1 Set
folder gluer machine
Introduction
ZH-780AC is a multi function model,suitable for card board,EBA flute corrugated board.This model has correction
device and bottom lock device.Can make electrical adjusting .Has UV destroying device and dust remove device
for better gluing effect.
Technical Parmeters
Model |
ZH-780PC |
Suitable material |
Card board,E flute corrugated board |
Feeding method |
Automatic continuous feeding |
Max mechanical speed |
350m/min |
| Overall dimension |
14000*1550*1450mm |
| Weight |
6.5T |
| Power consumption |
11.8KW |
| Glue type | Solvent |
Machine Configuration
1)Main motor:TECO Taiwan
2)Inverter:Siemens
3)Timing belt and pulley:Optibelt German
4)Bearing:NSK
5)Main axis:Taiwan chorme plated steel bar
6)Wall thickness:20mm tempered
7)Feeding belt:Habasit Switcherland
8)Transfer belt:NITTA Japan
9)Plain belt:NITTA Japan
10)Low voltage apparatus:Omron/Fuji
11)Fasten bolts:Level 12.9 Taiwan
Optional Configuration
12)High frequency Plasma
13)Yaskawa servo system(for 4/6 corner box)
14)HHS glue sprary system (for 4/6 corner box)

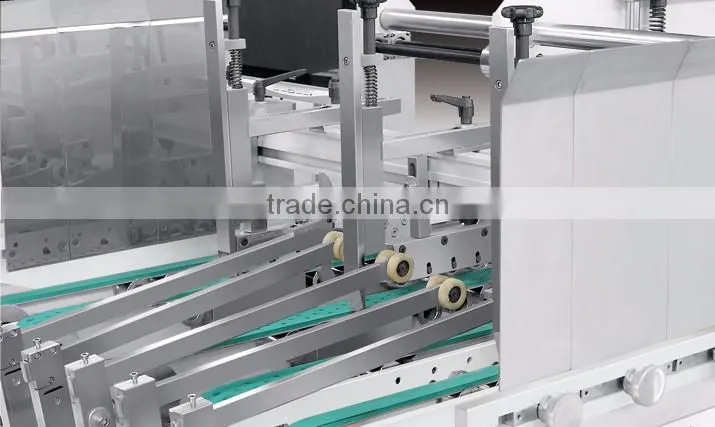

Feeder Section:
Equipped with vibrating motor.
With independent transmission,low noise,with front adjustable wheels,max working capacity can be achieved.
Feeding knives and left and right registers fixing bar are controlled up and down by pneumatic system easily.
Feeding knifes are equipped with pnematic mechanism for smoother feeding.
:
About Factory
Warranty Service:
Machines are new (or unused) and the guarantee period will be given thirteen months from shipment date. During
this period, the seller will offer free maintenance and free spare parts that caused by the machine’s quality,
but the buyer must pay the courier cost. Parts damaged because of mishandling and consumable parts are not
covered by any warranty.
