ZH-580PC -Automatic High Speed 4 & 6 Corner box cardboard corrugated Box making machinegrouping

corrugated box making machine

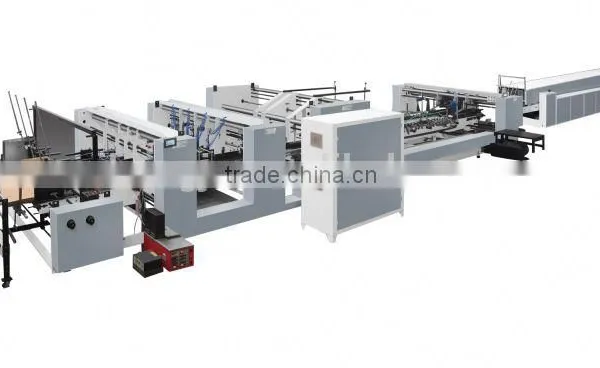

Introduction

ZH-580PC is a multi function model,suitable for card board,E flute corrugated board,can di two fold,four

fold,and bottom lock.This model has correction device prefolding deivce and bottom lock device.Can make

four corner six corner box by adding sprary glue system.Has UV destroying device and dust remove device

for better gluing effect.

Technical Parmeters

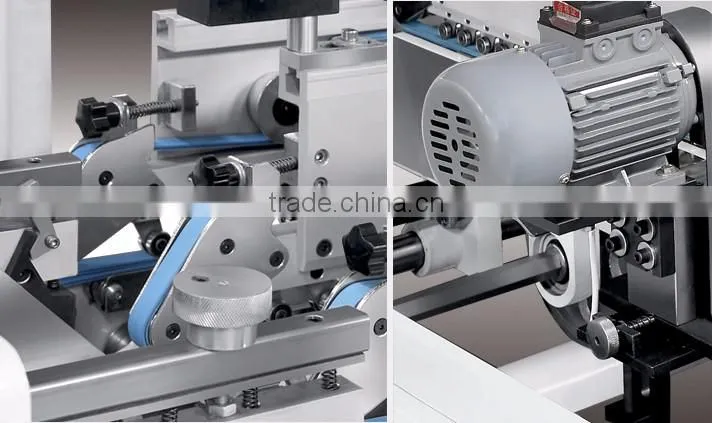

Paper Alignment System:

• Automatic alignment system to correct the paper feeding,avoding the paper going to sides.
• UV destroying deivce and dust remove device for better gluing effect.

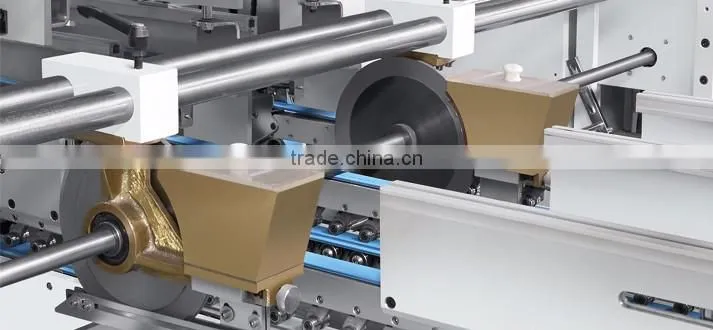

Bottom Lock Section

• Big-volume design,when the machine is running at high speed,the glue will not go out or leaking .Optional
• bottle is good for long time operation.
• Lock-bottom assembly mechanism with high elastic hookers is of deal design,fast and easy operation.

Configuration

1)Main motor:TECO Taiwan

2)Inverter:Siemens

3)Timing belt and pulley:Optibelt German

4)Bearing:NSK

5)Main axis:Taiwan chorme plated steel bar

6)Wall thickness:20mm tempered

7)Feeding belt:Habasit Switcherland

8)Transfer belt:NITTA Japan

9)Plain belt:NITTA Japan

10)Low voltage apparatus:Omron/Fuji

Optional Configuration

12)High frequency Plasma

13)Yaskawa servo system(for 4/6 corner box)

14)HHS glue sprary system (for 4/6 corner box)

:

About Factory

Warranty Service:

Machines are new (or unused) and the guarantee period will be given thirteen months from shipment date. During

this period, the seller will  offer free maintenance and free spare parts that caused by the machine’s quality,

but the buyer must pay the courier cost. Parts damaged because of mishandling and consumable parts are not

covered by any warranty.
