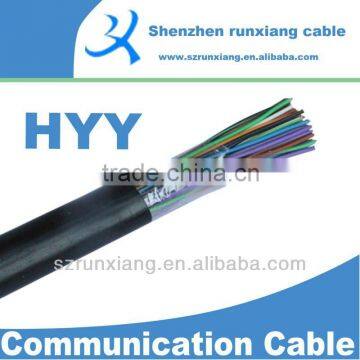

Communication Cable HYY/HYA/HBYV Telephone Cable

FOB Price

Negotiable / Meter

10000 Meters(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	szrunxiang
Model Number	RX-HYA CABLE

1.STANDARD:YD/T322;GB/T13849;IEC708-1
2.SOLID BARE COPPER CONDUCTOR
3.HDPE-PVC INSULATION
4.PVC SHEATH
5.CORE TWISTED

HYA CABLE

ELECTRICAL PROPERTIES
ITEM	UNITS	INDEX
Single-wire DC resistance of Max. +20°C	Ω/km	Conductor Diameter(mm) 0.32 0.40 0.50 0.60 0.70 0.90 236 148 95 65.8 48 29.5
wire of DC the resistance unbalance +20°C (the average not larger than the maximum)	%	2.5 1.5 1.5 1.5 1.5 1.5 6 5 5 5 5 4
Insulation resistance of the minimum +20°C Between each insulated conductor and other grounded and shielded insulated conductors	MΩ.km	Non-filling filling ≥10000 ≥3000
Insulation electric strength Between the wires(3s/60s) Between the conductor and the shield(3s/60s)	kV	2.0/1.0 6.0/3.0
Working capacitance Below 10 pairs of cable:average/maximum over 10 pairs of cable:average/max	nF/km	52.0+-2.0/57.0 52.0+-4.0/58.0
capacitive unbalance Between wire and wire:max Between wire and ground:small average Between wire and ground: max	pF/km	0.32 0.4 0.5 0.6 0.7 0.9 250 250 250 200 200 200 570 570 570 490 490 490 2630
