Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Communication Cable > HYY Newest 2012 Year Belden CW 1308 Outdoor 4 Pair Telephone Cable

HYY Newest 2012 Year Belden CW 1308 Outdoor 4 Pair Telephone Cable

Name: HYY Newest 2012 Year Belden CW 1308 Outdoor 4 Pair Telephone Cable
Brand: szrunxiang
SKU: 105887455
Availability: InStock

HYY Newest 2012 Year Belden CW 1308 Outdoor 4 Pair Telephone Cable thumbnail-1

HYY Newest 2012 Year Belden CW 1308 Outdoor 4 Pair Telephone Cable photo-1

US$ 1 - 3.1 MOQ: 500 Meters

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

szrunxiang

Model Number:

RX-HY CABLE

Contact Supplier Request Quote Chat Now

Shenzhen Runxiang Telecommunication Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name szrunxiang

Model Number RX-HY CABLE

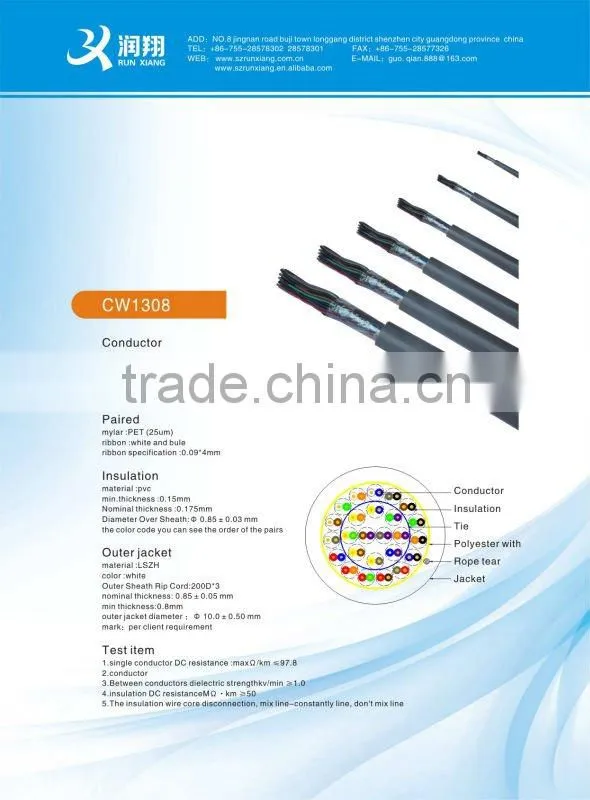

CW1308 Indoor Copper Telephone Cable

Product Description

1. Reference Standard :YD/T322-1996

2. Use the occasion :Pipeline overhead

3. Rated Temperature :-30 ~ +60 °C

4. Operating temperature :-5°C

5. Rated Voltage :30 V

6. Application :

Mainly used to transmit audio, 150 kHz and below the analog

signal and the 2048 kbit / s and the following digital signal

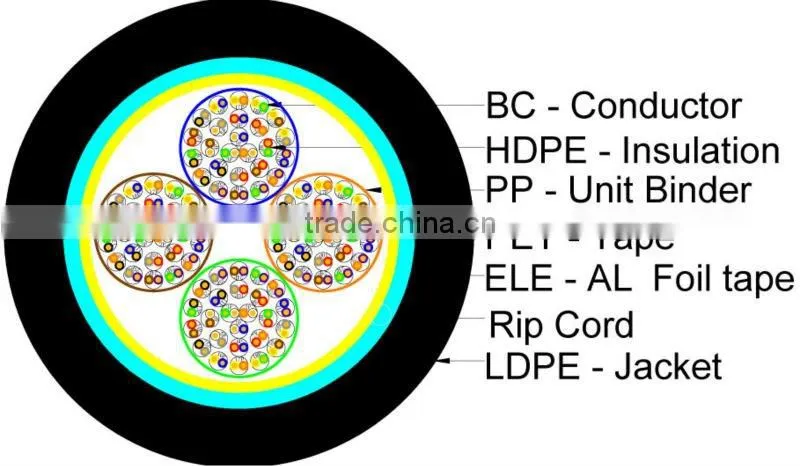

Product Structure

Conductor		Unit building
Pairs	50P	The cable core Structure		See Cable(A end)Cross Section
Conductor	100Root	Nominal number pairs		50P
Wire Gage	24awg	Structural arrangement		2×(12+13)
Stranding	Solid	Unit binder color		1.Blue 2.Blue 3.Orange 4.Orange
Material	BC-Bare Copper	Polyester Tape		PET
Diameter	Φ 0.50±0.01 mm	Shield		ELE
Insulation		Jacket
Material	HDPE	Material		LDPE
Diameter	Φ 0.86±0.02 mm	Color		Black
Twisted Pair		Rip Cord		500D×3
Twisted Pair Length	≤ 155mm	Nominal Thickness		1.50±0.05 mm
Pair Color Code	See Pair Color Code Chart	Diameter		Φ 16.0±0.50 mm a a a
Other Characteristics	Cable Net Weight	Product Length(m /Wooden Drum)
	300 kg/km	300	500		1000

Polyethylene Jacket Mechanical Characteristics

Test Material Units Spec

1. Tensile strength, in value MPa ≥ 10.0

Thermal aging before it is processed % ≥ 350

Thermal aging treatment % ≥ 300

Thermal aging treatment temperature °C 100±2

Thermal aging treatment time h 24×10

3. Heat shrinkage % ≤5

Treatment temperature °C 100±2

Processing time h 4

4. Operating Temperature Range °C -40 To +60

Electrical Characteristics

Test Item	Units	Spec
Conductor DC Resistance 20°C	Ω/km	≤95
Unbalance of Pair DC Resistance 20°C	%	≤5.0
Dielectric Strength between Pairs	kv/min	≥1.0
Insulation Resistance	MΩ·km	≥10×103
Working capacitance	nF/km	≤58
Short or Open of the loop	—	None
Shield continuity	—	Continuity
