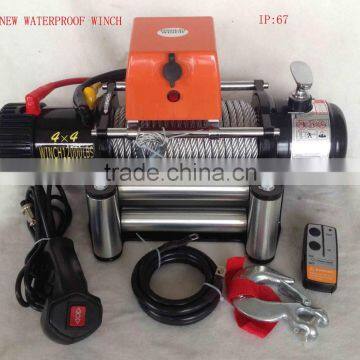

12000lbs WATERPROOF electric winch / electric car winch / warn winch

FOB Price

US$ 170 - 200 / Unit

5 Units(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

high quality electric winch 12000lbs

1. 12v or 24V DC ;

2. water proof (IP:67);

3. Low noise(with patent brake system; Patent No: 201410553072.9 );

4. Aluminum control box(color: custom);

5. double-way brake model;

6. 3 years warranty.

Product Description:

JL-12000 LBS

Specification

Single line rated pull	12000lbs (5454kgs)
Motor	6.0hp/4.5kw, series wound
Control	Remote switch
Extra wireless remote switch	Optional
Gear train	3 stage planetary
Gear reduction ratio	196:1
Braking	Automatic load-holding brake
Drum size	Diameter 2.5’’ (63.5mm) x length 9.6’’(224mm)
Cable	3/8’’ (9.5mm) x 85’(26m)
Remote control switch	Included
Battery	Recommended:650 CCA
Net weight	40kgs
Overall dimension(Length x width x height )	20.8’’ x 6.3’’x 9.6’’ (529x160x245mm)
Mounting bolt pattern	10’’ x 4.5’’ (254x114.3mm)

Pull , speed , amps

Line pull and rope capacity in layer
