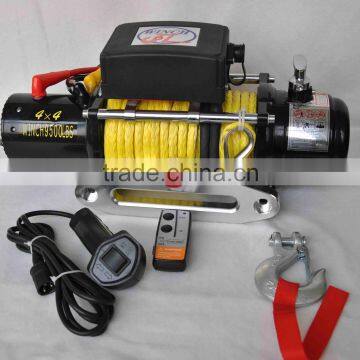

CE approved 9500LBS electric winch / 4X4 off-road 9500LBS winch
- 10000 Piece / Pieces per Month
- Ningbo
- T/T
- 4'' Double L Track Sliding Winch, WLL 5,500lbs
- High Quality Heavy Duty Winch Bar for Flatbed Trailer
- Introduction to Marine Electric Hoisting Winches
- Marine pneumatic winch(Good performance, high pulling force)
- Auto parts Nylon winch for Jeep wrangler JK 2007+ 12500lbs bumper winch for Jeep accessories
- Electric Lifting Winch Marine Hydraulic Winches on Dredging Machine Electric Winch for Sale
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Jingleo | Model Number: | JL 9500 LBS |
Power Source: | Electric | Application: | Auto | Capacity: | 9500lb(4309kg) |
Product Description
9500LBS electric winch ;
1. 12v or 24V DC ;
2. Water proof ;
3. Low noise(silence with patent; Patent No: 201410553072.9 ) ;
4. continuous working time: above 2 hours;
5. Double-way brake model(with 2 choices for installation on auto);
6. 3 years warranty & long life time.
Performance | 12VDC |
Single line rated pull | 9500lb(4310kg) |
Motor | 5.5hp/4.1kw,Series Wound |
Control | Remote switch,12ft(3.7m)lead |
Gear train | 3 Stage Planetary |
Gear reduction ratio | 196:1 |
Clutch | Sliding Ring Gear |
Braking Action | Automatic In-The-Drum |
Drum size | Diameter2.5"(63.5mm) Length 8.8"(224mm) |
Cable | 94ft of 21/64" diameter(28m of 8.3mm diameter) |
Fairlead | 4-Way Roller Fairlead |
Remote Control | Included |
Battery | Recommended:650CCA minimum for winching |
Battery Leads | 2 gauge,72"(1.83m) |
Finish | Black/Dark Grey |
Weight | N.W.84lbs(38kg) G.W. 92lbs((42kg) |
Overall dimensions | 20.82’’ x 6.3’’x 9.64’’ (529x160x245mm) |
Mounting Bolt Pattern | 10.00±0.015"x4.50±0.010"(254x114.3mm) |
Pull , speed , amps
Line pull lbs (kgs) | Line speed ft./min (m/min) | Current A |
0 | 24(7.8) | 80 |
2000(909) | 14.4(4.4) | 180 |
4000(1818) | 10.6(3.25) | 240 |
6000(2727) | 8.5(2.6) | 280 |
8000(3636) | 7.0(2.15) | 330 |
9500(4309) | 6.4(1.95) | 350 |
Line pull and rope capacity in layer
Layer | Rated line pull lbs (kgs) | Total rope on drum ft(M) |
1 | 9500(4309) | 16.2(5.0) |
2 | 7700(3493) | 39.3(12.0) |
3 | 6500(2954) | 68.9 (21.0) |
4 | 5700(2585) | 91.8(28.0) |
