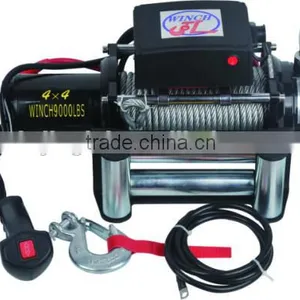

12V electric winch;
1. 12v or 24V DC ;
2. Water proof ;
3. Low noise(silence with patent; Patent No: 201410553072.9 );
4. continuous working time: above 2 hours;
5. Double-way brake model(with 2 choices for installation on auto);
6. 3 years warranty & long life time.
Product Description:
JL-9000 LBS
Specification
Single line rated pull |
9000lbs (4090kgs) |
Motor |
5.5hp/4.0kw, series wound |
Control |
Remote switch |
Extra wireless remote switch |
Optional |
Gear train |
3 stage planetary |
Gear reduction ratio |
184:1 |
Braking |
Automatic load-holding brake |
Drum size |
Diameter 2.5’’ (63.5mm) x length 9.6’’(224mm) |
Cable |
21/64’’ (8.3mm) x 92’(28m) |
Remote control switch |
Included |
Battery |
Recommended:650 CCA |
Net weight |
38kgs |
Overall dimension(Length x width x height ) |
20.8’’ x 6.3’’x 8.6’’ (530x160x218mm) |
Mounting bolt pattern |
10’’ x 4.5’’ (254x114.3mm) |
Pull , speed , amps
Line pull lbs (kgs) |
Line speed ft./min (m/min) |
Current A |
0 |
24(7.8) |
80 |
2000(909) |
14.4(4.4) |
180 |
4000(1818) |
10.6(3.25) |
240 |
6000(2727) |
8.5(2.6) |
280 |
8000(3636) |
7.0(2.15) |
330 |
9000(4090) |
6.5(2.0) |
360 |
Line pull and rope capacity in layer
Layer |
Rated line pull lbs (kgs) |
Total rope on drum ft(M) |
1 |
9000(4090) |
16.2(5.0) |
2 |
7320(3327) |
39.3(12.0) |
3 |
5500(2500) |
68.9 (21.0) |
4 |
4750(2159) |
91.8(28.0) |
