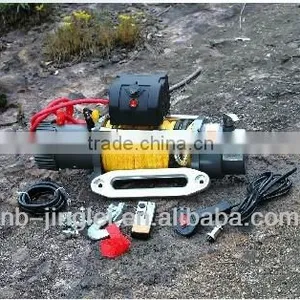

Help Center4WD Winch 3000lbs / Auto Winch / Winch for ATV
Related Products
-
Electric Boat Trailer Winch / 2000lbs Winch / Electric Anchor Winches for BoatsNegotiableMOQ: 15 Units -
110cm(3.6feet ) Round Trampolline / Small Trampolline / TrampollineUS$ 35.00 - 35.00MOQ: 1000 Sets
-
1T Double Gear Puller / Hand Puller / Power PullerUS$ 10 - 30MOQ: 100 Sets
-
Foladable BEACH Prayer Mat / Outdoor Prayer Mat / Prayer Mat With ChairUS$ 1 - 10MOQ: 2000 Pieces
-
Leisure Mat With Chair & Pillow / Outdoor Mat / Thick & Foldable Leisure MatUS$ 1 - 15MOQ: 1000 Pieces
Product Description:
JL-3000A LBS
Specification
Single line rated pull |
3000lbs (1361kgs) |
Motor |
1.2hp, Permanent magnet |
Control |
Remote switch |
Gear train |
Differential Planetary |
Gear reduction ratio |
153:1 |
Drum size |
Diameter 1.24”(D)(31.5mm) ×2.88”(L) (73mm) |
Cable |
5.5mm x 9.2m |
Remote control switch |
Included |
Net weight |
15kgs |
Overall dimension(Length x width x height ) |
11.4’’ x 3.9’’x 4.1’’ (289x100x104mm) |
Pull , speed , amps
Line pull lbs (kgs) |
Line speed ft./min (m/min) |
Current A |
0 |
10.5ft (3.2m) |
12 |
1,000 (454) |
7.2ft (2.2m) |
55 |
2,000 (907) |
3.6ft (1.1m) |
100 |
3,000 (1361) |
2.6ft (0.8m) |
120 |
Line pull and rope capacity in layer
Layer |
Rated line pull lbs (kgs) |
Total rope on drum ft(M) |
1 |
3000 (1361) |
4.9 (1.5) |
2 |
2320 (1052) |
11.5 (3.5) |
3 |
1890 (858) |
19.3 (5.9) |
4 |
1590 (720) |
28.5 (8.7) |
5 |
1380 (620) |
31.0 (9.5) |
