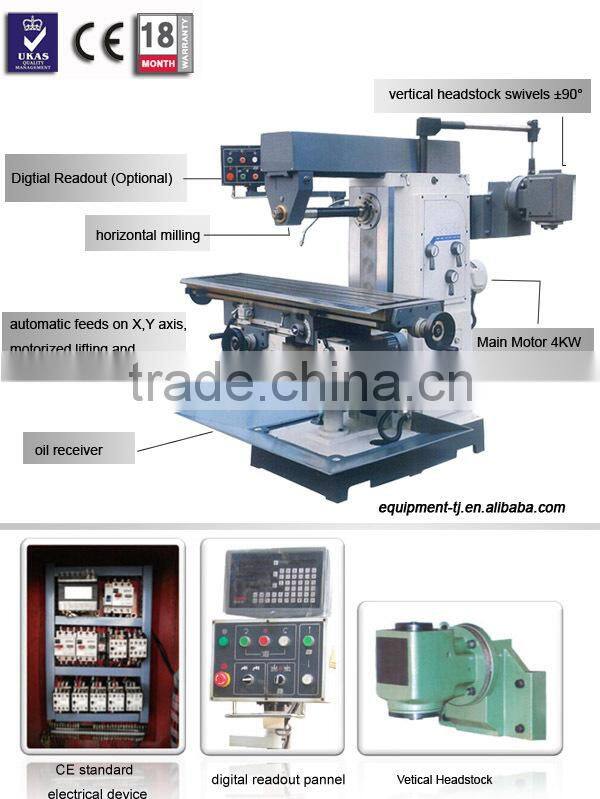

X6036A Universal Knee-type Milling Machine
Work Table Surface and Guideways Hardened by Supersonic Frequency Quenching (depth 2-4MM)
Rectangular Table Guideways With High Stability
Automatic Feeds on X,Y Axis, Motorized Lifting and Falling of Table on Z Axis
Headstock Swivels ±45°
Digital Readout (optional)
Actuator (optional)
Oil Receiver (optional)
18 Months Warranty
CE, ISO Certificated
Easy Operation
Customized Color
1 .Specification
| Specifications | X6036A Universal Knee-type Milling Machine |
| Spindle Taper | 7:24 ISO 50 |
| Distance From Horizontal Spindle To Worktable (mm) | 0-400mm |
| Spindle Speeds(R.P.M) | (12 step) 60-1800 |
| Table Size(mm) | (1370)1250*360 |
| Table Travel (Horizontal/Cross/Vertical) | 750/320/400mm |
| Feeding Range of Longitudinal, Cross Travel | (8 steps)30-740mm/min ( Rapaid) 1080mm/min |
| Auto-feeding of Z-axis | 590mm/min |
| T-slot (Number-width-distance) | 3-18mm-80mm |
| Main Motor | 4KW |
| Motor for Repaid Device of Table (X.Y) | 750W |
| Motor for Vertical Device of Table (Z) | 1100W |
| Overall Dimension | 1900*1720*1850mm |
| N.W./G.W.(Kg) | 2100/2300 |
2.Accessories
3.Optional Cutters
4.Product Usage
5. Application Areas
Wooden cases / Pallets.
N.W.:1200Kg
G.W.:1350Kg
X6036A Milling Machine Standard Packing List
NO. | Name | Specification | Q’ty |
1 | China Milling machine | X6036A | 1 |
2 | Mill chuck |
| 1 |
3 | Inner-hexagonal spanner | 5 10 | 1 |
4 | Wrench | S21-24/S27-30 | 1 |
5 | Machine vice | 200 | 1 |
6 | Milling arbor | φ27 φ32 | 1 |
7 | Draw arbor | M16. M24 | 1 |
8 | Handle |
| 1 |
9 | Operation manual |
| 1 |
10 | Certificate of inspection |
| 1 |
11 | Packing list |
| 1machine |
