ZX6350Z&ZX6350C H/V Radial Milling Machine
- Xingang of Tianjin Port
- T/T D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Tianjin, China | |
| Brand Name | ME | Model Number | ZX6350Z | |
| Type | Universal | CNC or Not | Normal | |
| Voltage | 220V/240V/380V; 50-60Hz | Power(W) | 1.5 /(0..85/1.5)Kw | |
| Dimension(L*W*H) | 400*230*380mm | Weight | N.W./G.W.: 460KG/470KG | |
| Certification | CE,ISO9001:2008 | Warranty | 18 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Wooden Cases/Pallets
Product Description
ZX6350Z&ZX6350C H/V Radial Milling Machine
We Manufacture. Stock. Distribute

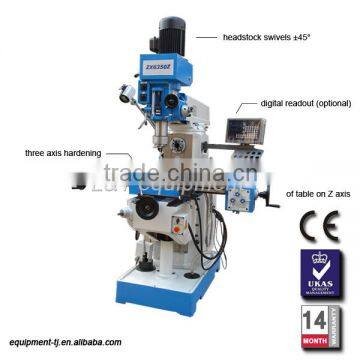

·Vertical Milling Spindle auto-feeding
·Headstock swivels ± 45 °
·Rotary Table and Head
·Arrow Diagram Refers Special Accessories
MILLING MACHINE
Specifications | ZX6350Z Horizontal Milling Machine |
Max. Drilling Dia. (mm) | 50,30 |
Spindle Taper | MT4,R8,ISO30,ISO40 |
Max. Vertical Milling Dia. | 25 |
Max. Boring Dia. | 120 |
Distance Spindle to Table Surface | 140-490 |
Spindle Speed Range(Vertical/Horizontal) | 90-2000/38-1310 |
Spindle Travel | 120 |
Table Size (mm) | 1120*280 |
Table Travel (X.Y.Z) (mm) | 600*260 |
Overall Dimension (mm) | 1400*1630*2350 |
Main Motor Power(Vertical/Horizontal) (KW) | 2.2;2.2 |
N.W./G.W.(Kg) | 1200/1350 |
MILLING MACHINE
Packing List ZX6350Z Horizontal/Vertical Milling Machine
| No. | Name | Model | Qty |
| 1 | Milling Machine | ZX6350Z | 1 |
| 2 | Drill Chuck | Φ16 | 1 |
| 3 | Inner Hexagon Spanner | 5, 6, 8, 10 | 1 |
| 4 | Wedge Shifter | 1 | |
| 5 | Reduction Sleeve | 1 | |
| 6 | Draw Bar | 2 | |
| 7 | Spindle Arbor | 1 | |
| 8 | Wrench | S21-21, S16-18, S8-10 | 1 |
| 9 | Mill Chuck | 1 | |
| 10 | Mill bar | 2 | |
| 11 | Vice | 160 | 1 |
| 12 | Operation Manual | 1 | |
| 13 | Quality Certificate | 1 | |
| 14 | Packing List | 1 |
* You can also choose optional accessories, please contact our sales for details.
MILLING MACHINE

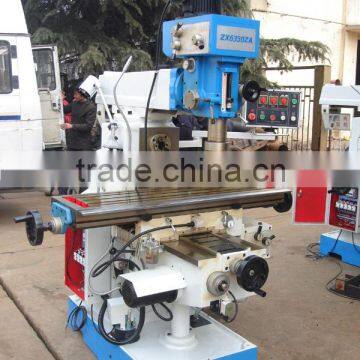

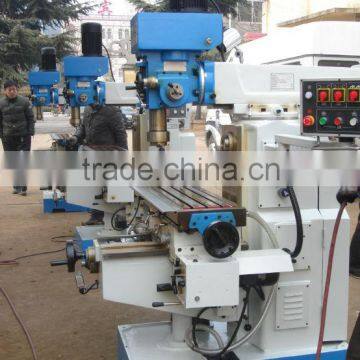

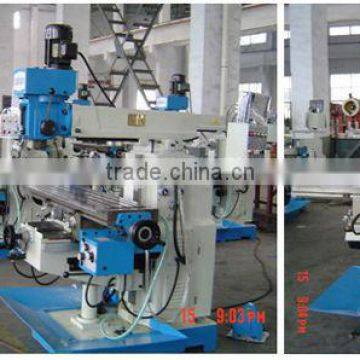

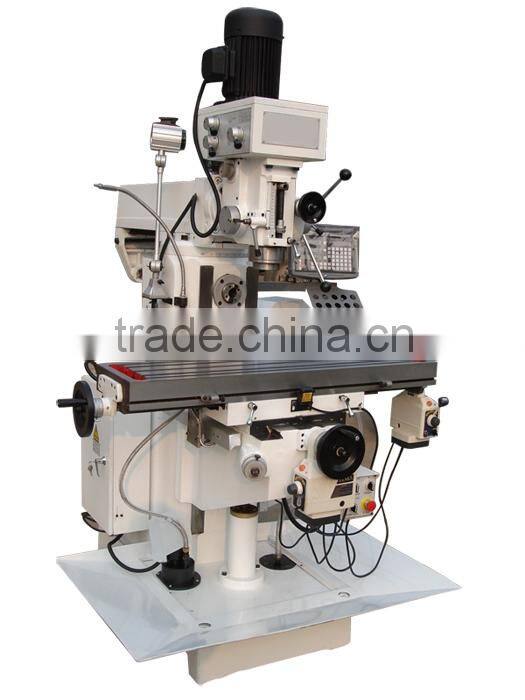

Product Picture

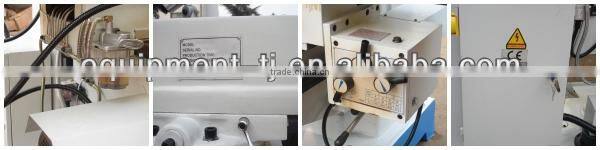

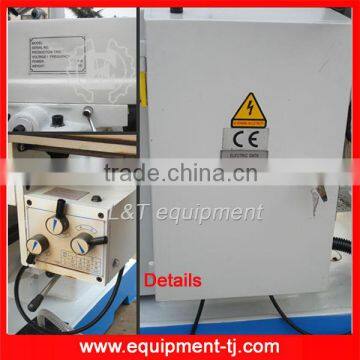

Details

MILLING MACHINE
Accessories
MILLING MACHINE

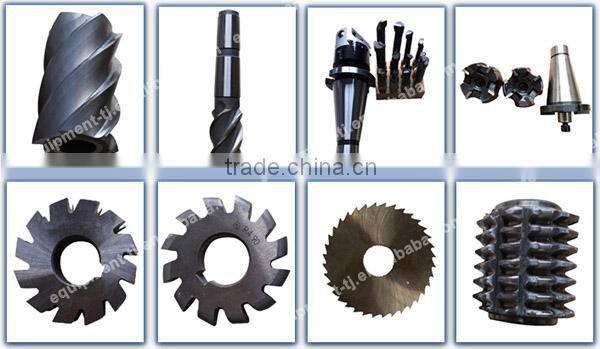

Optional Cutters
pallets or wooden cases

milling machine

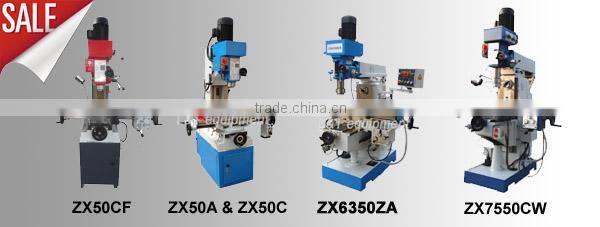

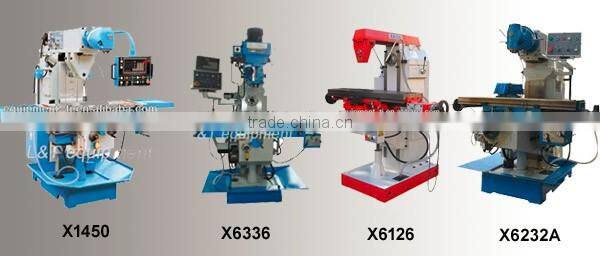

Other Hot Sale Model Choices
Click Here Click Here Click Here Click Here
Click Here Click Here Click Here Click Here

ZX6350Z Vertical Horizontal Milling Machine
Company Profile
Our company is a major import and export enterprise located in the port city Tianjin, China. Awarded multiple contracts by the World Bank and the Asian Development Bank, we have provided products worthy of billions of dollars to domestic and overseas partners on an annual basis since 1994. Our corporate mission is to promote our business by continually exceeding our customers' expectations for service and reliability. Our company currently exports more than 400 categories of products to more than 100 countries worldwide. Our main export products are machine tools and accessories, valves, engineering machinery, universal machinery, agricultural machinery, electric motors, water-submersible pumps, diesel generating sets, conveyor pulleys, hydraulic cylinders, survey equipment, and so on. With the rapid development of the Chinese market in recent years, internal demand for foreign products has expanded exponentially. To serve this demand, our company now imports an extensive range of products, including heavy forging equipment, paint sprayers, industrial lubricants, industrial liquid soap, laboratory apparatuses, flexible bus bars, fire extinguishing facilities, and power generator sets. We are continually looking for reseller partners to distribute our products and supplier partners to expand our product base. Please contact us if you have a need. We look forward to serving you. ISO9001:2008 certified.
