ZX5325C Drilling Milling Machine Benchtop Milling Machine
We Manufacture. Stock. Distribute
Hot Sale Easy Operation.
Rotary Table and Head.
CE ISO Certificated.
Good helper for your machining and maintanance work in your workshops.
L&T 20-Years Export Experience.
Knowledge and experience make the difference.

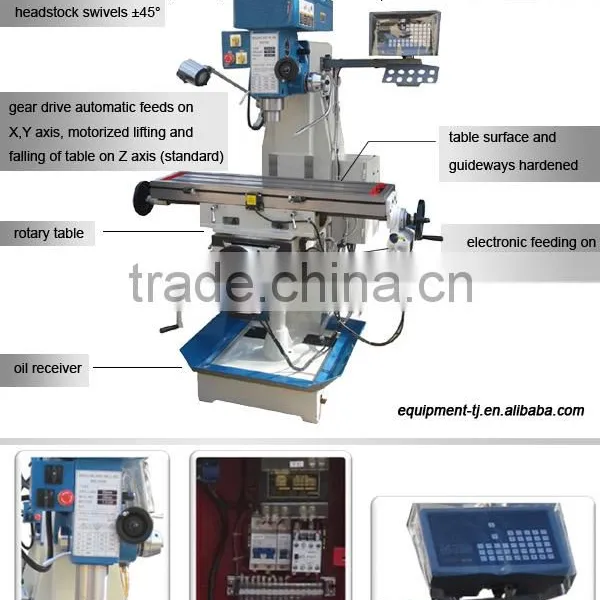

Gear Drive Milling Head
Dovetail Table Guideways Withstand Larger Overturning Moment
Work Table Surface and Guideways Hardened by Supersonic Frequency Quenching
Quenching Depth 2-4MM
Rotary Table and Head
Digital Readout (optional)
Actuator (optional)
Oil Receiver (optional)
CE ISO Certificated
18 Months Warranty
Professional Design, Easy Operation
Manual Milling Machine
Specifications
Specifications |
ZX5325C Drilling Milling Machine |
Max. Drilling Dia. (mm) |
50 |
Spindle Horizontal Milling Dia. |
100 |
Max. Vertical Milling Dia. |
32 |
Max. Boring Dia. |
100 |
Spindle Taper |
MT4,R8 |
Spindle Speed Range |
115-1750 |
Spindle Travel |
125 |
Table Size (mm) |
260*1000 |
Table Travel (X.Y.Z) (mm) |
450*280*380 |
Main Motor Power (KW) |
0.85/1.5 |
Overall Dimension (mm) |
1250*1120*2100 |
N.W./G.W.(Kg) |
700/760 |
Accessories
Optional Cutter
Standard Packing List
| No. | Name | Specification | Qty | Remarks |
| 1 | Drill chuck | Φ1~Φ13 | 1 | |
| 2 | Connecting bar with clamping apparatus | ISO40 or MT4 or ISO20 | 1 | |
| 3 | Boring bar | ISO40 or MT4 or ISO20 | 1 | |
| 4 | Iron wedge | 1 | ||
| 5 | Pull rod | M14 | 1 | |
| 6 | Six edges spanner | S6 S8 | 1 | |
| 7 | Double- head spanner | 19~17 24 | 1 | |
| 8 | Reduction sleeve | 4/3 3/2 | 1 | |
| 9 | Machine vice | 160 | 1 | |
| 10 | Milling chuck | ISO40 or MT4 or ISO30 | 1 | |
| 11 | Power feed | Special apparatus | ||
| 12 | Operation instruction | 1 | ||
| 13 | Packing list | 1 | |
* You can also choose optional accessories, please contact our sales for details.
Wooden Cases / Pallets
