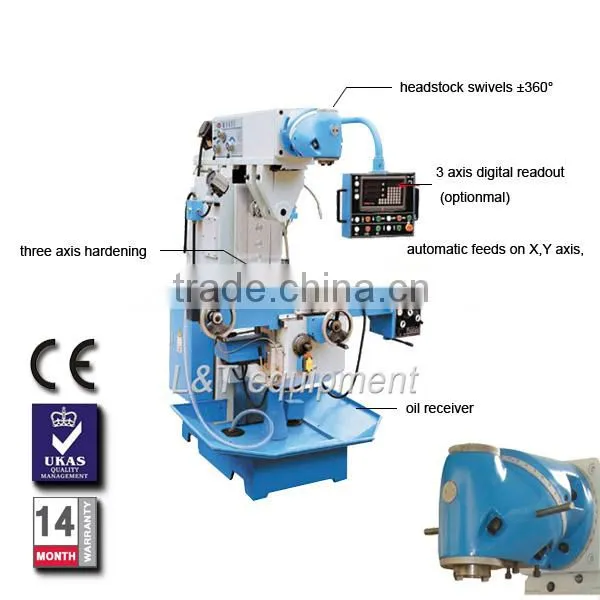

X1450 Universal Milling Machine
Work Table Surface and Guideways Hardened by Supersonic Frequency Quenching (depth 2-4MM)
Work Table Made by HT200-250 High Strength Cast Iron
Automatic Feeds on X,Y Axis, Motorized Lifting and Falling of Table on Z Axis
Arrow Diagram Refers Special Accessories
Digital Readout (optional)
Actuator (optional)
Oil Receiver (optional)
18 Months Warranty
CE, ISO Certificated
Easy Operation
Customized Color
milling machine
1 .Specification
| Specifications | X1450 Universal Swivel Head Milling Machine |
| Table Taper (mm) | ISO 40 |
| Max. End Milling (mm) | 25(Vertical) 100(Horizontal) |
| Swivel angle Milling Head (°) | ±360° |
| Range for Spindle Speed (R.P.M) | 35-1600(Vertical) ,40-1300(Horizontal) |
| Distance from Spindle to Table (mm) | 360 |
| Table Size (mm) | 1250*360 |
| Table Travel(X*Y*Z) (mm) | 1000*300*350 |
| T-slot (Number-width-distance) (mm) | 3/14/70 |
| Main Motor Power (KW) | 3 |
| Overall Dimension (mm) | 1470*1670*1850 |
ling machine
2.Accessories
3.Optional Cutters
4.Product Usage
5. Application Areas
Wooden cases /pallets
milling machine
