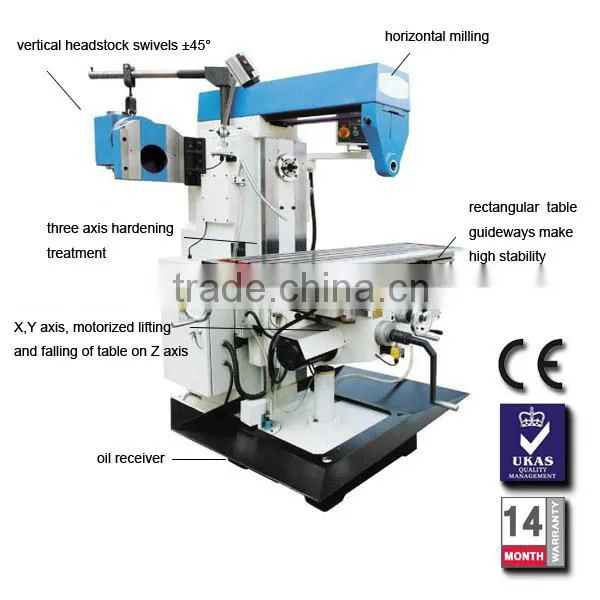

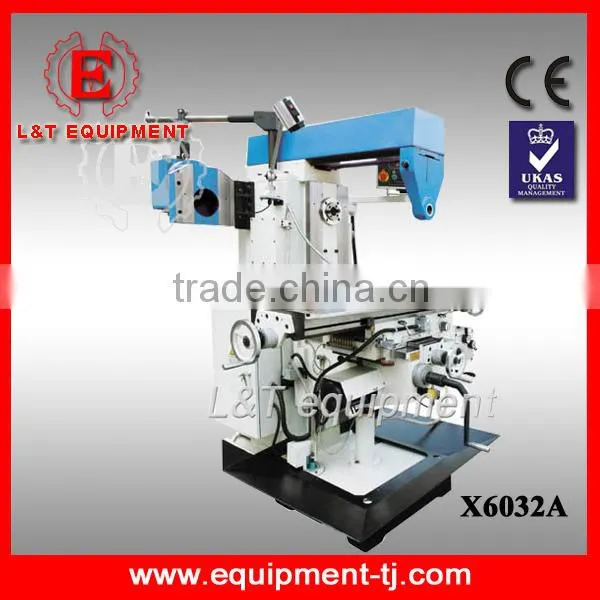

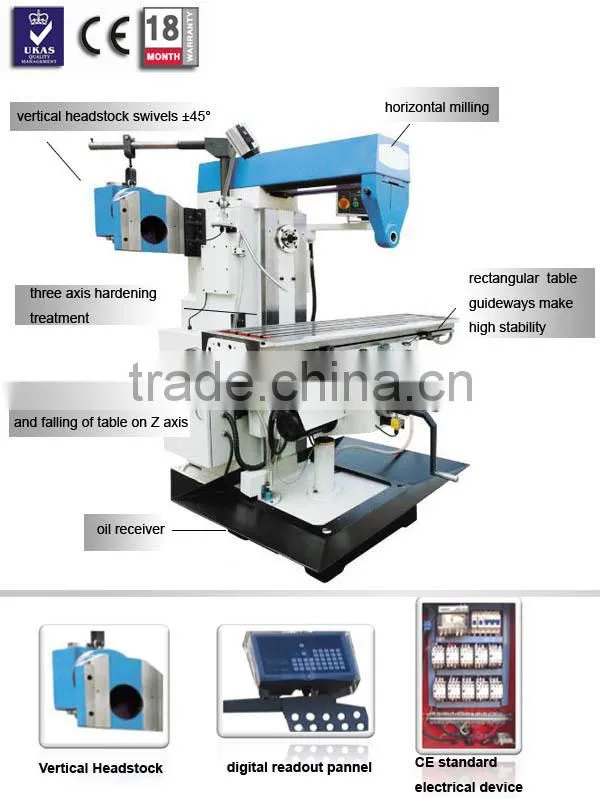

X6032A Milling Machine
Work Table Surface and Guideways Hardened by Supersonic Frequency Quenching (depth 2-4MM)
Rectangular Table Guideways With High Stability
Hardened And Ground Table Surface
Automatic Feeds on X,Y Axis, Motorized Lifting and Falling of Table on Z Axis
Headstock Swivels ±45°
Digital Readout (optional)
Actuator (optional)
Oil Receiver (optional)
18 Months Warranty
CE, ISO Certificated
Easy Operation
Customized Color
milling machine
| Specifications | X6032A Universal Knee-type Milling Machine |
| Spindle Taper | ISO 40 |
| Distance From Horizontal Spindle To Worktable (mm) | 0-450 |
| Spindle Speeds(R.P.M) | (12 step) 40-1300(Horizontal) |
| Table Size(mm) | 1370*320 |
| Table Travel (Horizontal/Cross/Vertical) | 720/300/450 |
| Feeding Rang of Longitudinal, Cross Travel | (8 step)22-555 ( Rapaid 1080) |
| Auto-feeding of Z-axis | 560 |
| T-slot (Number-width-distance) | 3-14-70 |
| Main Motor | 3 |
| Motor for Repaid Device of Table (X.Y) | 750W |
| Motor for Vertical Device of Table (Z) | 750W |
| Overall Dimension | 1700*1500*2000 |
| N.W./G.W.(Kg) | 1800/1900 |
Accessories
Optional Cutters
Product Usage
Application Areas
Wooden cases /pallets
milling machine
