Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > CE Standard X1450 Milling Machine

CE Standard X1450 Milling Machine

L&T Mechanical & Electrical Equipment Co., Ltd.
5Yrs
CE Standard X1450 Milling Machine thumbnail-1
CE Standard X1450 Milling Machine thumbnail-2
CE Standard X1450 Milling Machine thumbnail-3
CE Standard X1450 Milling Machine thumbnail-4
CE Standard X1450 Milling Machine photo-1
CE Standard X1450 Milling Machine photo-2
CE Standard X1450 Milling Machine photo-3
CE Standard X1450 Milling Machine photo-4
US$ 7,000 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Tianjin, China
Brand Name:
ME
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Tianjin, China
Brand Name ME
Model Number X1450
Type Universal
CNC or Not Normal
Voltage 220V/240V/380V; 50-60Hz
Power(W) 3Kw
Dimension(L*W*H) 1470*1670*1850mm
Weight N.W./G.W.: 2450kg/2650kg
Certification CE, ISO9001:2008
Warranty 18 Months
After-sales Service Provided Engineers available to service machinery overseas

 X1450  Milling Machine

Product Description

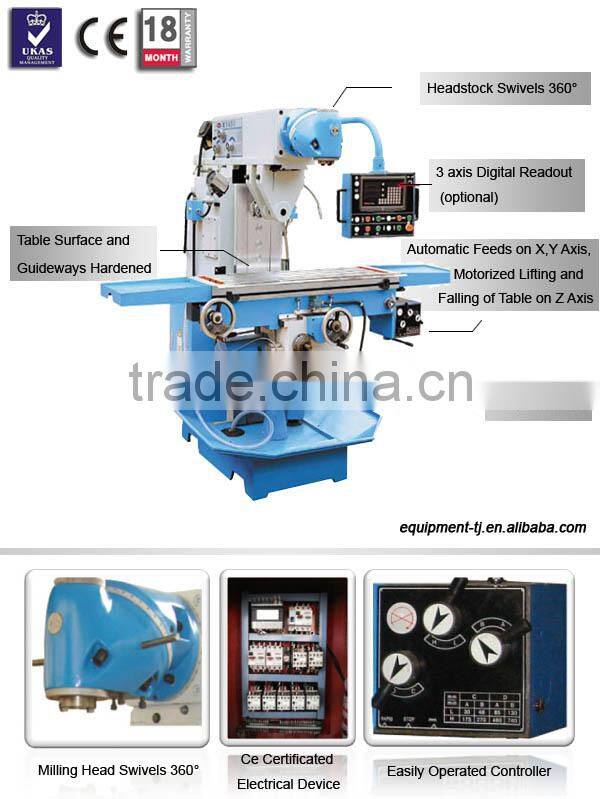

 CE Standard X1450 Milling Machine







Automatic Feeds on X,Y Axis, Motorized Lifting and Falling of Table on Z Axis

Arrow Diagram Refers Special Accessories

Digital Readout (optional)

Actuator (optional)

Oil Receiver (optional)

18 Months Warranty

CE, ISO Certificated

Easy Operation
Customized Color

milling machine

1 .Specification


SpecificationsX1450 Universal Swivel Head Milling Machine
Table Taper (mm)ISO 40
Max. End Milling (mm)25(Vertical) 100(Horizontal)
Swivel angle Milling Head (°)±360°
Range for Spindle Speed (R.P.M)35-1600(Vertical) ,40-1300(Horizontal)
Distance from Spindle to Table (mm)360
Table Size (mm)1250*360
Table Travel(X*Y*Z) (mm)1000*300*350
T-slot (Number-width-distance) (mm)3/14/70
Main Motor Power (KW)3
Overall Dimension (mm)1470*1670*1850





ling machine

2.Accessories

CE Standard X1450 Milling Machine



3.Optional Cutters

CE Standard X1450 Milling Machine



4.Product Usage

5. Application Areas





Packaging & Shipping

 Wooden cases /pallets



 milling machine

Other Hot Sale Model Choices

CE Standard X1450 Milling Machine

                Click Here            Click Here                Click Here                  Click Here





CE Standard X1450 Milling Machine

               Click Here               Click Here                Click Here                  Click Here



CE Standard X1450 Milling Machine

CE Standard X1450 Milling Machine

CE Standard X1450 Milling Machine

CE Standard X1450 Milling Machine

CE Standard X1450 Milling Machine

CE Standard X1450 Milling Machine



   Transaction Steps

 CE Standard X1450 Milling Machine

X1450  Competitive Price Vernier Universal Milling Machine
