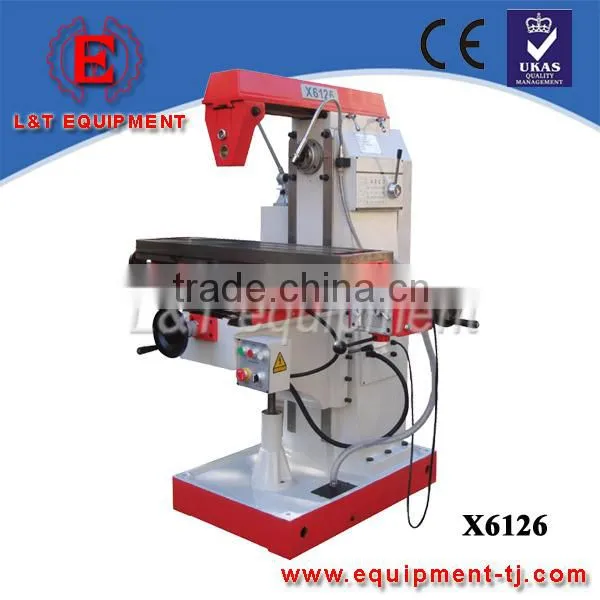

X6126 Milling Machine
We Manufacture. Stock. Distribute
Hot Sale Easy Operation.
CE Iso Certificated.
Good helper for your machining and maintanance work in your workshops.
L&T 20-Years Export Experience.
Knowledge and experience make the difference.

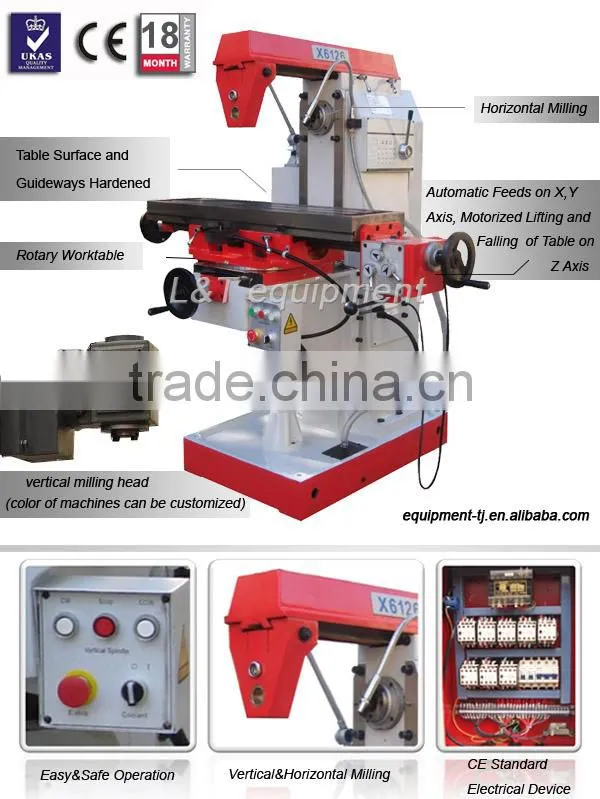

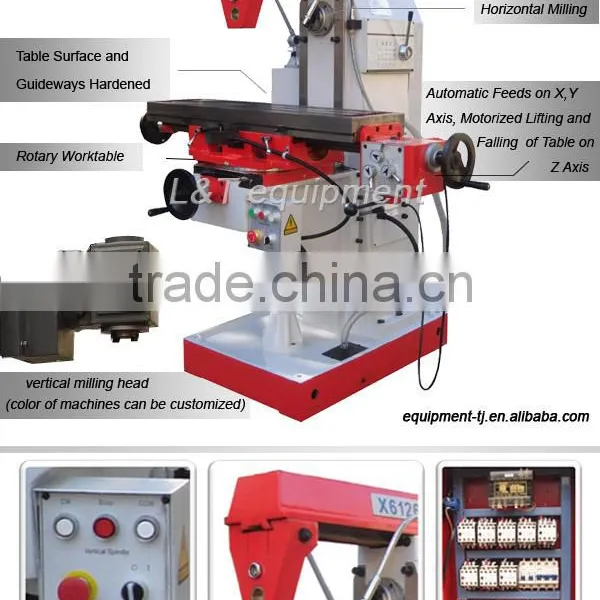

Main Feature
Dovetail Table Guideways Withstand Larger Overturning Moment
Work Table Surface and Guideways Hardened by Supersonic Frequency Quenching (Depth 2-4MM)
Automatic Feeds on X,Y Axis, Motorized Lifting and Falling ofTable on Z Axis
Rotary Table and Head
Gear-drive Milling Head
CE ISO Certificated
Digital Readout (optional)
Actuator (optional)
Oil Receiver (optional)
18 months Warranty
Specifications
Specifications |
X6126 Universal Milling Machine |
Spindle Taper (mm) |
MT4,R8,ISO30,ISO40 |
Distance from Spindle to Vertical Guide (mm) |
240 |
Distance from Spindle to Table Surface (mm) |
20-310 |
Spindle Speeds Range(Vertical/Horizontal)(R.P.M) |
60-2600(8step)/40-1800(8step) |
Table Size (mm) |
1000*260 |
Table Travel (X.Y.Z) (mm) |
600*230*450 |
Motor |
1.5 |
Rotary Angle of Worktable |
±45° |
Speed of Table Longitudinal Feeding |
24-720(8step) |
N.W./G.W.(Kg) |
900/1000 |
Accessories
Optional Cutter
Wooden Cases / Pallets
