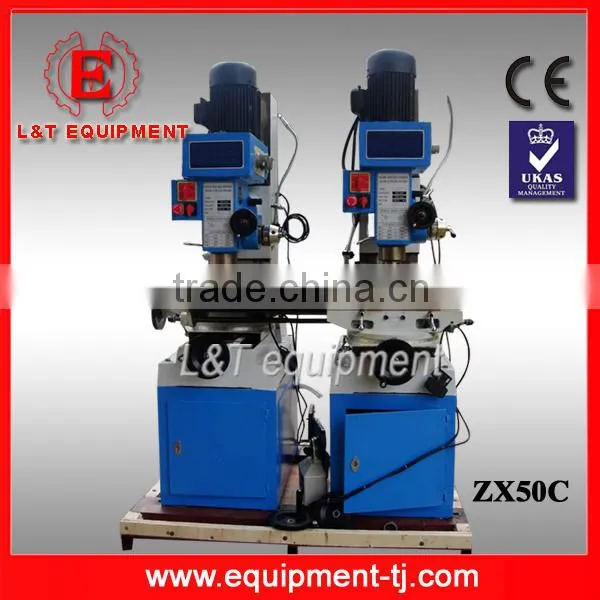

ZX50C Mini Vertical Cheap Milling Machine
china milling machine
We Manufacture. Stock. Distribute
Hot Sale Easy Operation
Rotary Table and Head
CE Iso Certificated
Good helper for your machining and maintanance work in your workshops
·Rotary Table and Head
Specifications |
ZX50A milling machine |
ZX50C milling machine |
Max. Drilling Dia. (mm) |
50 |
50 |
Max. Horizontal Milling Dia. |
100 |
100 |
Max. Vertical Milling Dia. |
32 |
32 |
Max. Boring Dia. |
100 |
100 |
Spindle Taper |
MT4,R8 |
MT4,R8 |
Spindle Speeds Range |
(5 step) 270-2400 |
(5 step) 115-1750 |
Spindle Travel |
120 |
120 |
Table Size (mm) |
800*240 |
800*240 |
Table Travel (mm) |
400*230*380 |
400*230*380 |
Main Motor Power (KW) |
1.5 |
1.5 |
N.W./G.W.(Kg) |
460/540 |
470/550 |

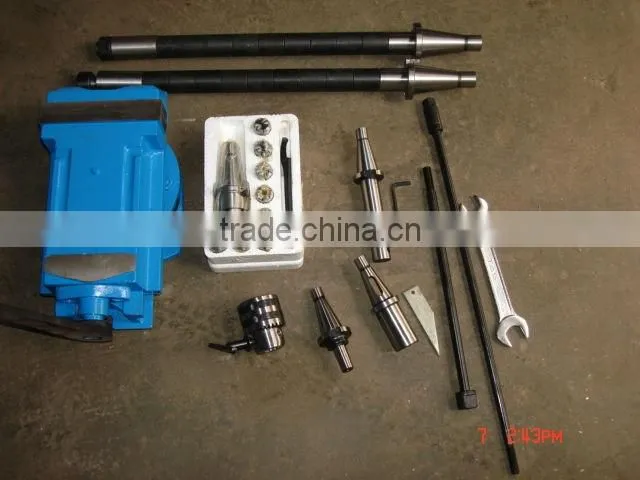

ZX50A&ZX50C Milling Machine Standard Packing List
No. |
Description |
Specification |
Qty |
1 |
ZX50A/ZX50C Milling Machine |
|
1 |
2 |
Drilling Chuck |
16 |
1 |
3 |
Hexagon Spanner |
5 |
1 |
4 |
Wedge Shifter |
|
1 |
5 |
Reduction Sleeve |
|
1 |
6 |
Draw Bar |
|
1 |
7 |
Spindle Bar |
|
1 |
8 |
Wrench |
S21-24 |
1 |
9 |
Machine Vice |
160 |
1 |
10 |
Milling Chuck |
|
1 |
11 |
Operation Manual |
|
1 |
12 |
Quality Certificate |
|
1 |
13 |
Packing list |
|
1 |
L&T
* You can also choose optional accessories, please contact our sales for details.
