ZX6328 Mini Ram Type Universal Milling Machine Machinery
We Manufacture. Stock. Distribute
milling machine

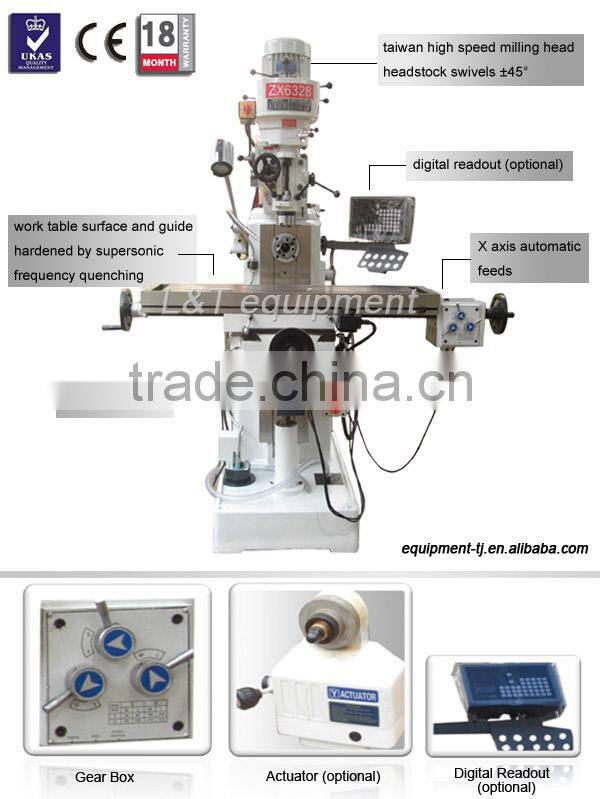

1. Main Feature
Taiwan High Speed Milling Head
Headstock Swivels ±45°
Vertical Milling Spindle Auto-feeding
Work Table Surface and Guideways Hardened by Supersonic Frequency Quenching (depth 2-4MM)
Work Table Made by HT200-250 High Strength Cast Iron
Dovetail Table Guideways Withstand Larger Overturning Moment
Easy Operation
Perfect Painting
CE, ISO certificated
Digital Readout (optional Accessories)
Actuator (optional Accessories)
Oil Receiver (optional Accessories)
Rotary Table (optional Accessories)
milling machine
2. Specifications
Specifications |
ZX6328 H/V Milling Machine |
Spindle Taper (mm) |
ISO 30 |
Distance from Spindle to Worktable (mm) |
140-500 |
Distance from Horizontal Spindle to Worktable (mm) |
0-360 |
Distance from Spindle to Column (mm) |
120-480 |
Spindle Speeds Range(R.P.M) |
(16 step)66-4540V/(12 step)40-1300H |
Table Size (mm) |
1120*280 |
Table Travel (X.Y.Z) (mm) |
600/240/360 |
Feeding Range of Longitudinal, Cross Travel |
(8 step)24-720(Rapid Feed 540) |
T-slot (Number-width-distance) |
3/14/63 |
Main Motor Power (KW) |
2.2V/2.2H |
Overall Dimension (mm) |
1660*1340*2130 |
N.W./G.W.(Kg) |
1250/1350 |
milling machine
3.Packing List (Standard)
Item |
Name |
Model |
Qty
|
1 |
Milling Machine |
|
1 |
2 |
Mill Chuck |
|
1 |
3 |
Reduction Sleeve |
|
1 |
4 |
Wrench |
S17-19 |
1 |
5 |
Wrench |
S21-24 |
1 |
6 |
Machine Vice |
160mm |
1 |
7 |
Inner-Hexagonal Spanner |
5 |
1 |
8 |
Camlock |
|
2 |
9 |
Wedge Shifter |
|
1 |
10 |
Horizontal Milling Bilt |
|
2 |
11 |
Operation Manual |
|
1 |
12 |
Operation Manual (Milling Machine Head) |
|
1 |
13 |
Quality Certificate |
|
1 |
14 |
Packing List |
|
1 |
* You can also choose optional accessories, please contact our sales for details.
milling machine
4. Accessories
milling machine
5. Optional Cutters
6. Product Usage
7. Application Area
milling machine
pallets or wooden cases
