ZX7550W High Quality Drilling Machine with Components
We Manufacture. Stock. Distribute

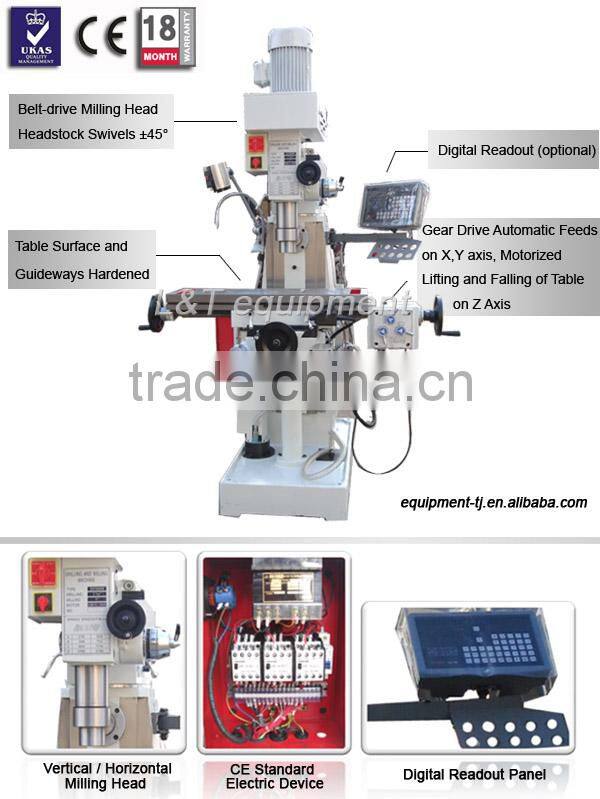

1. Main Feature
Belt-Drive Vertical and Horizontal Milling Head
Dovetail Table Guideways Withstand Larger Overturning Moment
Work Table Surface and Guideways Hardened by Supersonic Frequency Quenching (Depth 2-4MM)
Work Table and Guideways Made by HT200-250 High Strength Cast Iron
Rotary Head
Digital Readout (optional)
Actuator (optioanl)
Oil Receiver (optional)
CE ISO Certificated
18 Months Warranty
Professional Design, Easy Operation
2.Specifications
Specifications |
ZX7550CW |
ZX7550W |
Max. Drilling Dia. (mm) |
50(2") |
50(2") |
Max. Horizontal Milling Dia. |
100 |
100 |
Max. Vertical Milling Dia. |
25 |
25 |
Max. Boring Dia. |
M16 |
M16 |
Max. Tapping Dia. |
ISO30,R8,MT4 |
ISO30,R8,MT4 |
Spindle Taper |
V:115-1750(8) H:60-1350(8) |
V:115-1750(8) H:60-1350(8) |
Spindle Speeds Range (V/H) |
120 |
120 |
Spindle Travel |
800*240 |
800*240 |
Table Size (mm) |
400*230*350 |
400*230*350 |
Table Travel (X.Y.Z) (mm) |
V:0.85/1.5 H2.2 |
V:0.85/1.5 H2.2 |
Main Motor Power (KW) |
1.5(V) 2.2(H) |
1.5(V) 2.2(H) |
N.W./G.W.(Kg) |
850/1000 |
850/1000 |
3.Standard Packing List of ZX7550W Milling Machine
NO. |
Name |
Model |
Qty |
1 |
Drilling & Milling Machine ZX7550W |
1 |
|
2 |
Drill chuck |
Φ16 |
1 |
3 |
Milling Chuck |
1 |
|
4 |
Reduction Sleeve |
2 |
|
5 |
Machine Vice |
160 |
1 |
6 |
Wrench |
S21-24 |
1 |
7 |
Inner-hexagonal spanner |
5 |
1 |
8 |
Camlock |
2 |
|
9 |
Wedge shifter |
1 |
|
10 |
Spindle bar |
1 |
|
11 |
Boring bar |
1 |
|
12 |
Horizontal Drilling Bilt |
2 |
|
13 |
Operation manual |
1 |
|
14 |
Quality certificate |
1 |
|
15 |
Packing list |
1 |
*You can also choose optional accessories, please contact our sales for details.
4. Accessories
5.Optional Cutters
6. Product Usage
7.Application Areas
pallet or wooden case
Manual Milling Machine
