X6228B High Quality Bench Drilling Machine with Parts
We Manufacture . Stock . Distribute
1. Main Feature

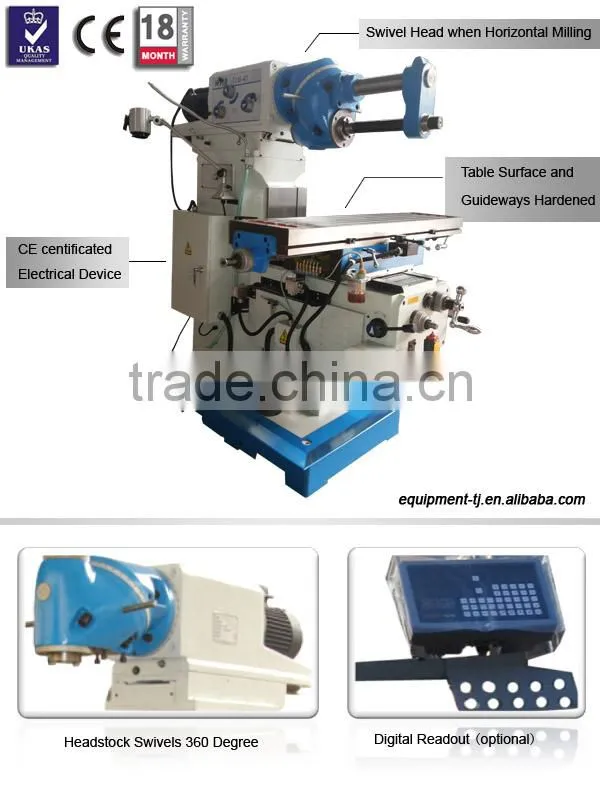

Headstock Swivels 360 Degrees
Vertical and Horizontal Milling
Automatic Feeds on X,Y axis, Motorized Lifting and Falling of Table on Z Axis
Work Table Surface and Guideways Hardened by Supersonic Frequency Quenching (depth 2-4MM)
Work Table Made by HT200-250 High Strength Cast Iron
Dovetail Table Guideways Withstand Larger Overturning Moment
Gear Drive Vertical & Horizontal Milling Head
Easy Operation
CE, ISO certificated
Digital Readout (optional Accessories)
Actuator (optional Accessories)
Oil Receiver (optional Accessories)
2. Specification
Specification |
X6228B |
Table Taper |
7:24 ISO40 |
Distance From Spindle To Table |
100-500 |
Distance From Spindle To Column |
0-500 |
Spindle Speeds |
35-1600 |
Table Size |
1200*280 |
Table Travel (X*Y*Z) |
680*340*400 |
Feeding Range Of Longitudinal, Cross Travel |
(8 Steps)24-450(Rapaid 630) |
Auto-Feeding Of Z-Axis |
(8 Steps)8-140(Rapaid 200) |
T-Slot(Number -Width-Distance) |
3/14/70 |
Swivel Angle Of Swivel Head |
360o |
Main Moto Power |
2.2 |
Overall Dimension |
1700*1560*1880 |
N.W./G.W. |
1480/1680 |
3.Packing List
No. |
Name |
Model |
Quantity |
1 |
Milling Machine X6228B |
1 |
|
2 |
Milling Chuck |
7:24 ISO40 (4,5,6,8,10,12,14,16) |
1 Set |
3 |
Inner-Hexagonal Spanner |
5,12 |
1 Set |
4 |
Milling Tool Bar |
ISO40/Φ 32 |
1 |
5 |
Adapter Shaft |
X622509228 |
1 |
6 |
Tool Bar |
Φ 32 |
1 Set |
7 |
Guide Bar |
X622509201 |
1 |
8 |
Holder |
X622509101,102 |
1 |
9 |
Wrench |
S14-17 S21-24 |
3 |
10 |
Vice |
160 |
1 |
11 |
Bolt |
M12*30 |
4 |
12 |
Operation manual |
1 |
|
13 |
Quality Certificate |
1 |
|
14 |
Packing List |
1 |
* You can also choose optional cutters, please contact our sales for details.
Standard Accessories
Quartz Lamp, Cooling System, 3 Axes Automatically Feed Device (X,Y,Z), Manual Lubrication System, Oil Receiver
4. Sample Picture

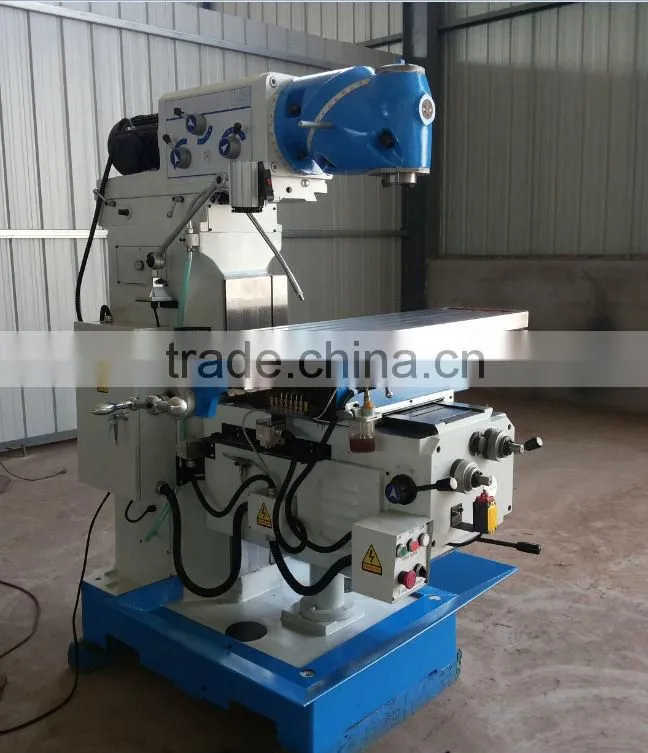

vertival milling

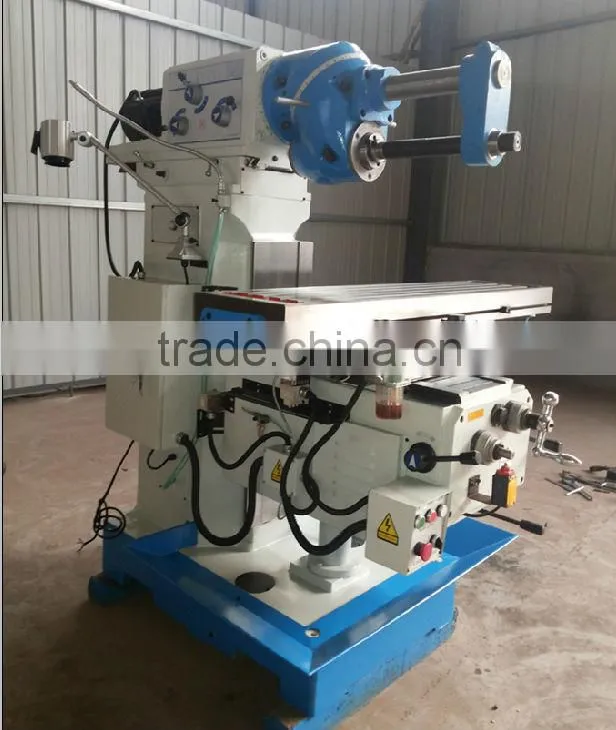

horizontal milling
5. Optional Cutters
6. Product Usage
Wooden cases / Pallets
