Product Details
Place of Origin: | Hunan, China | Brand Name: | fiberglass sleeving | Model Number: | fiberglass sleeving |
Type: | Insulation Sleeving | Material: | Fiberglass |
Product Description

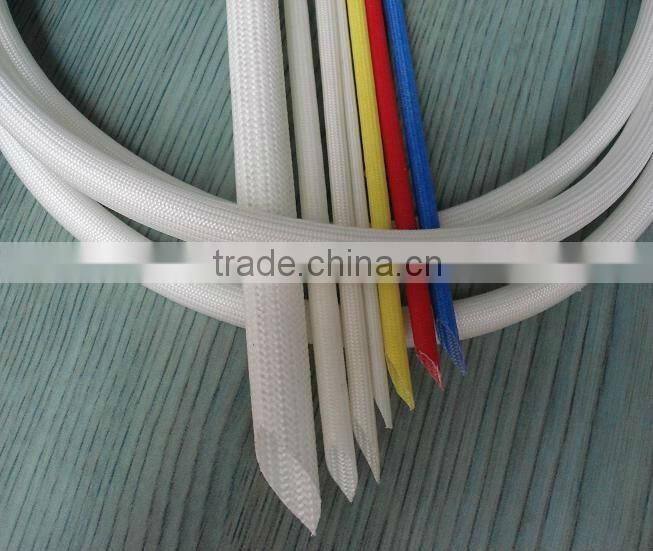

Fiberglass sleeving with silicone resin coating, silicone fiberglass sleeving
SRG-514 SELF-EXTINGUISHABLE
FIBERGLASS SLEEVING WITH SILICONE
RESIN COATING
Description
Silicone Resin sleeving consists of a finely braided fiberglass braid impregnated and coated with a silicone resin. It is designed to perform continuously in the range of temperatures from -75°C to 220°C
Features
•High temperatures up to 220°C
•Maximum flexibility and/or expandibility
•VW-1 and OFS
•Chemical resistance and flammability rating
•Moisture resistance
•Cut-through resistance
•Radiation resistance
•Abrasion resistanceOzone, moisture, corona, weathering, fungus
And chemical resistance
Applications
1. Protective coverings for automotive wiring harnesses and ABS brake wiring.
2. Aerospace and aircraft wiring leads.
3. Heat generating appliances such as coffee pots, hair dryers, toasters, etc.
4. Covering for leads on extrusion plastic molding, die casting machinery, presses, etc.
5. High voltage transformers.
Available
Sizes
In continuous spooled lengths or cut lengths in 1000mm per piece
Colors
Black, yellow, white and natural.
Other colours are available on request
Fiberglass sleeving with silicone resin coating, silicone fiberglass sleeving
Technical Data
Type Name Dielectric temperature burning resistivity | |||||
SRG-1 | Flexible self-extinguishable silicone glassfiber sleeve | C2 | 200°C(-30°C) | UL1441 | 10″Ωcm |
SRG-2 | Flexible self-extinguishable silicone glassfiber sleeve | C1 | 200°C(-30°C) | UL1441 | 10″Ωcm |
SRG-3 | Flexible self-extinguishable silicone glassfiber sleeve | B | 200°C(-30°C) | UL1441 | 10″Ωcm |
SRG-3A | Flexible self-extinguishable silicone glassfiber sleeve | A | 200°C(-30°C) | UL1441 | 10″Ωcm |
Size(mm)
Inner Diametre Wall Thickness | |||
Nominal | Tolerancl | Grade A min | Grade B.C1.C2. min |
0.5-2.5 | +0.25-0.00 | 0.38 | 0.18 |
3-4 | +0.50-0.00 | 0.46 | 0.23 |
5-6 | +0.50-0.00 | 0.5 | 0.28 |
7-9 | +0.60-0.00 | 0.5 | 0.28 |
10-12 | +0.80-0.00 | 0.64 | 0.4 |
14-18 | +0.80-0.00 | 0.68 | 0.48 |
20-30 | +1.00-0.00 | 0.7 | 0.5 |
Breakdown Voltage(V)
Grade Lowest Central Value Lowest Individual Value | ||
A | 7000 | 5000 |
B | 4000 | 2500 |
C1 | 2500 | 1500 |
C2 | 1500 | 800 |
