Home > Chemicals > Fiberglass Products > Other Fiberglass Products > ODM/OEM Avaliable Fiberglass Tubing
US$ 1 - 5
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
fiberglass tubing
Model Number:
fiberglass tubing
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of china
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Good Quality Silicone Rubber Coated Fiberglass Sleeving,silicon Rubber Fiberglass SleevingNegotiableMOQ: 1000 Pieces -
Alkali Free Fiberglass Tape Electrical Insulation Tape Price for Transformer,electrical Insulation TapeUS$ 1 - 50MOQ: 200 Rolls
-
Good Quality Resistant Glass Fiber TapeUS$ 1 - 50MOQ: 200 Rolls
-
Best Non-alkali E-glass Fiberglass Insulation Repair Tape,fiberglass Insulation Tape,insulation Fiberglass TapeNegotiableMOQ: 10 Kilograms
-
Manufacturer High Quality Adhesive Fiberglass Mesh TapeNegotiableMOQ: 500 Kilograms
Place of Origin
Hunan, China
Brand Name
fiberglass tubing
Model Number
fiberglass tubing
Application
fiberglass tubing, Motor,transformer or others
Surface Treatment
fiberglass tubing
Technique
fiberglass tubing
Dimensions
fiberglass tubing
ODM/OEM avaliable fiberglass tubing
Is there any product that you need?
Is it really can be customized as per your requirement?
How to get personalized service?
Let’s find answers...
Technical parameter
fiberglass tubing,fiberglass tubing,fiberglass tubing,fiberglass tubing,fiberglass tubing,fiberglass tubing
Accurate specifications ensure that we provide professional products
| Inner Diameter / WallThickness | |||
| Size | Tolerance | Minimum | Maximun |
| 1~3 | ±0.20 | 0.2 | 0.6 |
| 4~9 | ±0.30 | 0.3 | 0.7 |
| 10~16 | ±0.50 | 0.5 | 0.8 |
| Performance | Index |
| Breakdown Voltage(even) | 4000 |
| 2500 | |
| 1000 | |
| Bending at low temperature | No cracking or detachment of the coating shell be visible after 60 min at -15℃ |
| Bending after heat treatment | No cracking or detachmant of the coating shell be visible after 48±1hr at 155℃±3℃ |
| The other performances | Reference to GB7113-7117-86 |
<
| Property | Requirements | |||
| Proof Voltage (not lower than)kv | under normal conditions | after dampening | after winding | |
| 2.5 kv | 4 kv | 1.2 kv 2kv | 1.5 kv 2.5kv | |
| Coating stability | Temp 20 ℃ the sleeving has been wound around the specified mandrel for 1 hour. The coating should not crack or appear detached. | |||
| The sleeving is treated for 2hours at a temperature of 10 to 15 ℃ below zero. Then has been wound around the specified mandrel immediately. Coating should not crack ar appear detached. | ||||
| The sleeving treated at a temperature of 130 ℃ for 24 hours and is wound around a specific mandrel at the room temperature of 20 ℃ The coating should not crack or appear detached. | ||||
| Oil resistance | The sleeving dipped in transformer oil for 24 hours at a temperature of 105 ℃ . The coating should not crack or appear detached. But the colour of the sleeving is allowed to grow darker. | |||
| Benzene resistance | The sleeving kept in methyl benzene at a normal atmospheric temperature for 4 hours. The coating should not be sticky or show delamination. | |||
Next let us see more details

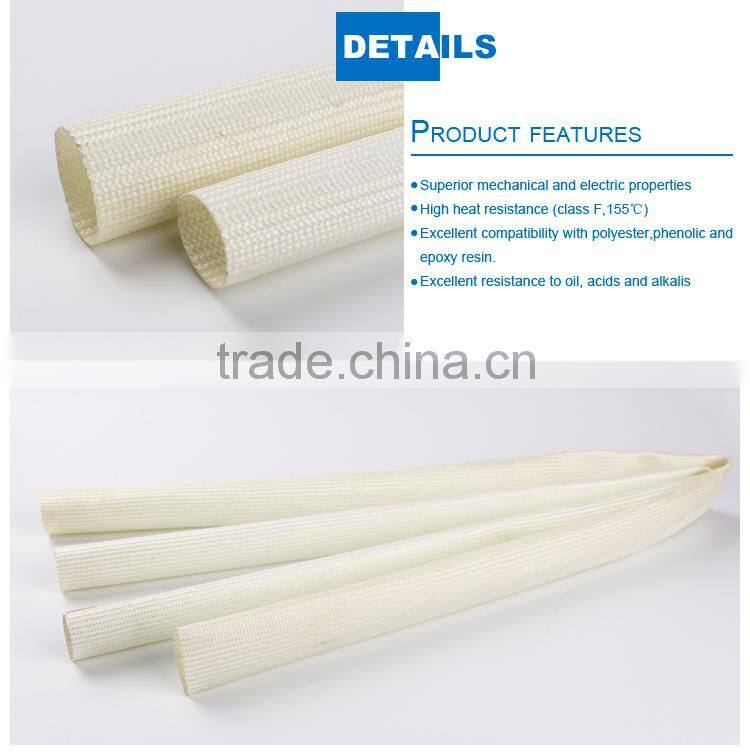

Details&features
fiberglass tubing,fiberglass tubing,fiberglass tubing,fiberglass tubing,fiberglass tubing,fiberglass tubing
fiberglass tubing,fiberglass tubing,fiberglass tubing,fiberglass tubing,fiberglass tubing,fiberglass tubing

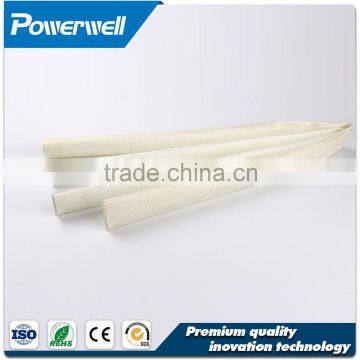

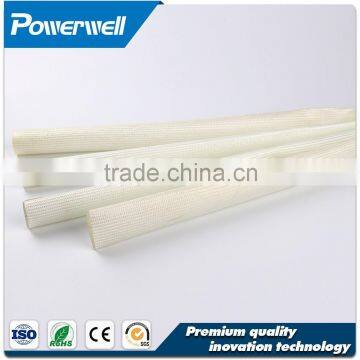

Product description of fiberglass tubing
AG601 fiberglass sleeving is a Class 155°C electrical insulation,manufactured by impregnating and coating a finely braided fiberglass sleeving with a dielectric film of acrylic resin. AG601 sleeving isrecommended as a universal coated sleeving for all thermal requirementsWhere can we use the product?
Product application will make us a direct impression.
Product Application of fiberglass tubing
Widely used in fractional and integral horsepower motors on leads and crossovers. Other uses exist in dry and oilfilled transformers, relays of many types, radio and television circuits.
What about the product line ?
How to ensure the quality ?
Do you want to know more details?
Go on....

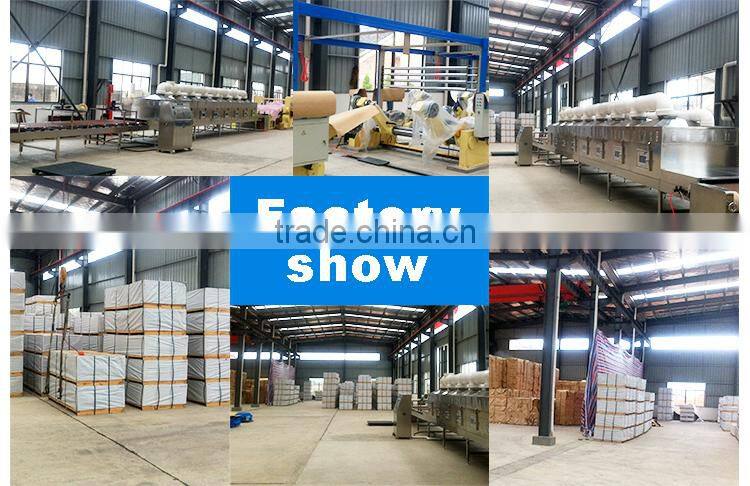

Production Flow
fiberglass tubing,fiberglass tubing,fiberglass tubing,fiberglass tubing,fiberglass tubing,fiberglass tubing
From raw materials to finished products, every process is tested and controlled professionally and seriously by our professional machines and person.
Certifications
fiberglass tubing,fiberglass tubing,fiberglass tubing,fiberglass tubing,fiberglass tubing,fiberglass tubing
Package&shipping
fiberglass tubing,fiberglass tubing,fiberglass tubing,fiberglass tubing,fiberglass tubing,fiberglass tubing
How to send an effective inquiry for saving your time?
Inquiry information
Our Services
fiberglass tubing,fiberglass tubing,fiberglass tubing,fiberglass tubing,fiberglass tubing,fiberglass tubing
1.Response to your inquiries and questions within 24hours.
2.Existing samples provided on free,only charge the freight.
3.High quality products and competitive offer
4.On-time delivery date
