10-port Managed Industrial PoE Fiber Switch With 4 Ports PoE

Shenzhen 3onedata Technology Co., Ltd.
10-port Managed Industrial PoE Fiber Switch With 4 Ports PoE thumbnail-1
10-port Managed Industrial PoE Fiber Switch With 4 Ports PoE photo-1
US$ 1 - 299 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
3ONEDATA/OEM
Model Number:
IPS7110-2GC-4F-4POE
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name 3ONEDATA/OEM
Model Number IPS7110-2GC-4F-4POE

10-port Managed Industrial PoE Fiber Switch with 4 ports PoE       10-port Managed Industrial PoE Fiber Switch with 4 ports PoE

 Introduction
       IPS7110-2GC-4F-4POE is an industrial grade, managed and redundancy Ethernet switch. The switch provides 4 ports 10/100M Ethernet, 4 ports fast Ethernet optical and 2 ports combo Gigabit SFP slots or 10/100/1000Base-T(X) ports, which 4 ports Ethernet supports POE function (IEEE 802.3af/at). It provided some kinds of advanced network managed function, like as: SW-Ring redundancy ring network, VLAN, Trunking, Quality of Service, Speed control, port mirroring and fault alarm. SW-Ring can bring your Ethernet to intelligent redundancy. The -40~75℃ working temperature, can meet all kinds of Industrial environment requirement and provide the solution of the economy.



 Features
1.Support IEEE802.3, IEEE802.3u, IEEE 802.3x,IEEE802.3z/ab, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W
2.Compatible with both IEEE802.3at(30W) and IEEE802.3af(15.4W)
3.Supports 2 Gigabit combo ports, 4 Fast Ethernet copper ports and 4 Fast Ethernet optic fiber ports
4.SW-Ring ring network patent technology (Fault recovery time<20ms)
5.Support RSTP, way exchange time<50ms
6.Support static multicast, IGMP Snooping and GMRP
7.Support Port based VLAN and IEEE 802.1Q VLAN
8.Support QOS absolutely and opposite priority
9.Support WEB, SNMP and Telnet configuration
10.Support port status display, data update.
11.Industrial grade design, -40-75℃work temperature
12.IP40 protection grade, DIN rail mounted



 Specification
StandardIEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z/ab, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W
 Protocol ARP, ICMP, TCP, DHCP, DNS, HTTP, SW-Ring, RSTP, SNMP
Flow ControlIEEE802.3x flow control, Back pressure flow control
Switch Functions Switch function: SW-Ring, QOS, 802.1QVLAN, RSTP, SNMP, Port trunking, static multicast filter, port mirroring, bandwidth management, broadcast storm control, port flow statistics, upgrade online, up and download configuration file, user name access system
SW-Ring: Support Single, Couple, Chain, Dual homing

Switch

Properties

100M forward speed: 148810pps
1000M forward speed: 1488100pps
Transmit mode: store and forward
System exchange bandwidth: 7.6G
MAC address table: 8K
Memory: 1M

Interface

Fast Ethernet Port: 10Base-T/100Base-TX auto speed control, Half/full duplex and MDI/MDI-X auto detect
PoE Pin-out: 1/2(+), 3/6(-)
100M optic fiber port: 100Base-FX, SC/ST/FC connector, support single mode (20/40/60/80Km optional), multi mode (2Km), wavelength: 1310nm, 1550nm
Gigabit Combo port: 1000Base-X SFP slot or 10/100/1000Base-T(X)
Console port: debug serial port carry out CLI command
Alarm port: 2 bit 7.62mm terminal block
1 channel relay alarm output

Transfer Medium

Twisted cable: 100M (standard CAT5/CAT5e cable)

Multi-mode: 1310nm, 2Km

Single-mode: 1310nm, 20/40/60Km

            1550nm, 80/100/120Km

Indicator

Run indicator: Run
Interface indicator: Link (1~10)
POE indicator: 1~4
Power supply indicator: P1, P2
Alarm indicator: Alarm

Power Supply

Input Voltage: 44~57VDC
Type of input: 4 bits 7.62mm terminal block
No-load consumption: 7W@48VDC
Full-load consumption: 68.6W@48VDC
Single PoE port maximum consumption: 30W@48VDC

Environment RequirementWorking temperature: -40~75℃
Storage temperature: -40~85℃
Relative Humidity: 5%~95 %( no condensation)
Physical Characterisitics

Shell: IP40 protect grade, metal shell
Installation: DIN rail mount
Size (W×H×D): 70mm×160mm×130mm
Weight: 1.2kg

Industrial Standard

EMI: FCC Part 15, CISPR (EN55022) class A

EMS: EN61000-4-2 (ESD)

EN61000-4-4 (EFT)

EN61000-4-5 (Surge)

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

CertificationCE, FCC, RoHS, UL508(Pending)
Warranty 5 years
Packing List

1. Industrial PoE Switch(plus terminal block) ×1
2. User manual × 1
3. Documentation and software CD × 1
4. Certificate of quality × 1
5. Warranty card × 1
6. DIN-Rail mounting kit × 1

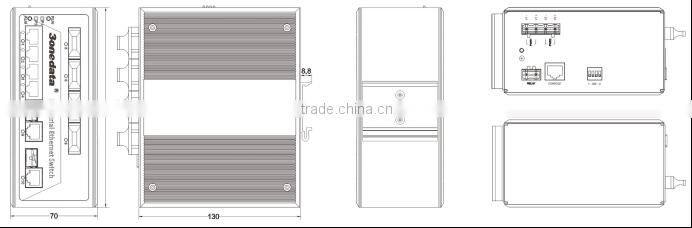

 Dimension
  10-port Managed Industrial PoE Fiber Switch with 4 ports PoE



 Shipping
10-port Managed Industrial PoE Fiber Switch with 4 ports PoE
