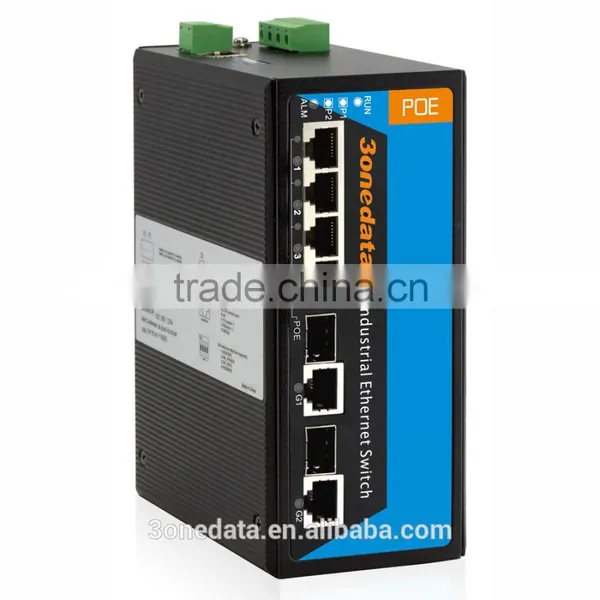

6-port Managed Industrial PoE Switch With 4 Ports PoE

Name: 6-port Managed Industrial PoE Switch With 4 Ports PoE
Brand: 3ONEDATA/OEM
SKU: 105773967

6-port Managed Industrial PoE Switch With 4 Ports PoE thumbnail-1

6-port Managed Industrial PoE Switch With 4 Ports PoE photo-1

US$ 1 - 199 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

3ONEDATA/OEM

Model Number:

IPS716-2GC-4POE

Contact Supplier Request Quote Chat Now

Shenzhen 3onedata Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name 3ONEDATA/OEM

Model Number IPS716-2GC-4POE

6-port Managed Industrial PoE Switch with 4 ports PoE

Introduction

IPS716-2GC-4POE is an industrial grade, managed and redundancy Ethernet switch. The switch provides 4 ports 10/100M Ethernet and 2 ports combo Gigabit SFP slots or 10/100/1000Base-T(X) ports, which 4 ports Ethernet supports POE function (IEEE 802.3af/at). It provided some kinds of advanced network managed function, like as: SW-Ring redundancy ring network, VLAN, Trunking, Quality of Service, Speed control, port mirroring and fault alarm. SW-Ring can bring your Ethernet to intelligent redundancy. The -40~75℃ working temperature, can meet all kinds of Industrial environment requirement and provide the solution of the economy.

Features

1.Support IEEE802.3, IEEE802.3u, IEEE 802.3x,IEEE802.3z/ab, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W

2.Compatible with both IEEE802.3at(30W) and IEEE802.3af(15.4W)

3.Supports 2 Gigabit combo ports and 4 Fast Ethernet copper ports

4.SW-Ring ring network patent technology (Fault recovery time<20ms)

5.Support RSTP, way exchange time<50ms

6.Support static multicast, IGMP Snooping and GMRP

7.Support Port based VLAN and IEEE 802.1Q VLAN

8.Support QOS absolutely and opposite priority

9.Support WEB, SNMP and Telnet configuration

10.Support port status display, data update.

11.Industrial grade design, -40-75℃work temperature

12.IP40 protection grade, DIN rail mounted

Specification
Standard	IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z/ab, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W
Protocol	ARP, ICMP, TCP, DHCP, DNS, HTTP, SW-Ring, RSTP, SNMP
Flow Control	IEEE802.3x flow control, Back pressure flow control
Switch Functions	Switch function: SW-Ring, QOS, 802.1QVLAN, RSTP, SNMP, Port trunking, static multicast filter, port mirroring, bandwidth management, broadcast storm control, port flow statistics, upgrade online, up and download configuration file, user name access system SW-Ring: Support Single, Couple, Chain, Dual homing
Switch Properties	100M forward speed: 148810pps 1000M forward speed: 1488100pps Transmit mode: store and forward System exchange bandwidth: 7.6G MAC address table: 8K Memory: 1M
Interface	Fast Ethernet Port: 10Base-T/100Base-TX auto speed control, Half/full duplex and MDI/MDI-X auto detect PoE Pin-out: 1/2(+), 3/6(-) Gigabit Combo port: 1000Base-X SFP slot or 10/100/1000Base-T(X) Console port: debug serial port carry out CLI command (no enabled) Alarm port: 2 bit 7.62mm terminal block (no enabled) 1 channel relay alarm output
Transfer Medium	Twisted cable: 100M (standard CAT5/CAT5e cable) Multi-mode: 1310nm, 2Km Single-mode: 1310nm, 20/40/60Km 1550nm, 80/100/120Km
Indicator	Run indicator: Run Interface indicator: Link (1~4/G1~G2) POE indicator: 1~4 Power supply indicator: P1, P2 Alarm indicator: Alarm
Power Supply	Input Voltage: 44~57VDC Type of input: 4 bits 7.62mm terminal block No-load consumption: 7W@48VDC Full-load consumption: 68.6W@48VDC Single PoE port maximum consumption: 30W@48VDC
Environment Requirement	Working temperature: -40~75℃ Storage temperature: -40~85℃ Relative Humidity: 5%~95 %( no condensation)
Physical Characterisitics	Shell: IP40 protect grade, metal shell Installation: DIN rail mount Size (W×H×D): 70mm×160mm×130mm Weight: 1.2kg
Industrial Standard	EMI: FCC Part 15, CISPR (EN55022) class A EMS: EN61000-4-2 (ESD) EN61000-4-4 (EFT) EN61000-4-5 (Surge) Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
Certification	CE, FCC, RoHS, UL508(Pending)
Warranty	5 years
Packing List	1. Industrial PoE Switch(plus terminal block) ×1 2. User manual × 1 3. Certificate of quality × 1 4. Warranty card × 1 5. DIN-Rail mounting kit × 1
