8-port Industrial Power over Ethernet Switch
| Introduction |
| IPS318-8POE is an industrial grade, unmanaged and redundancy POE switch. The switch provides 8 ports 10/100M Ethernet, which supports POE function (IEEE 802.3af/at). The switches are classified as power source equipment (PSE), and when used in this way, the switches enable centralization of the power supply, providing up to 30 watts of power per port and reducing the effort needed for installing power. The switches can be used to power IEEE 802.3af/at standard devices (PD), eliminating the need for additional wiring. It support CE, FCC standard, adopt industry standard design, IP40 protection, rugged high-strength metal case, power supply input (48VDC). The switch support IEEE802.3/ IEEE802.3u/ IEEE802.3x/ with 10/100M, full/half-duplex, and MDI/MDI-X auto-sensing, the -40~75℃ working temperature, can meet all kinds of Industrial environment requirement, providing reliable and economic solution for your industrial Ethernet network. |
| Features |
1.Support IEEE802.3, IEEE802.3u, IEEE 802.3x, IEEE802.3af/at, store and forward 2.Support 8 10/100Base-T(x) PoE ports 3.Support IEEE802.3af standard, full-port(PoE) full 15.4W power supply 4.Support IEEE802.3at standard, single-port maximum 30W power supply 5.Ethernet port support 10/100M self-adaption 6.DC48V power input, reverse connection protection 7.Industrial grade design, -40-75℃work temperature 8.IP40 protection grade, DIN rail mounted |
| Specification | |
| Standard | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at |
| Flow Control | IEEE802.3x flow control, Back pressure flow control |
Switch Properties | 100M forward speed: 148810pps |
| Interface | Fast Ethernet Port: 10Base-T/100Base-TX auto speed control, Half/full duplex and MDI/MDI-X auto detect |
| Transfer Medium | Twisted cable: 100M (standard CAT5/CAT5e cable) |
| Indicator | Run indicator: Run |
| Power Supply | Input Voltage: 44~57VDC |
| Environment Requirement | Working temperature: -40~75℃ Storage temperature: -40~85℃ Relative Humidity: 5%~95 %( no condensation) |
| Physical Characterisitics | Shell: IP40 protect grade, metal shell |
| Industrial Standard | EMI: FCC Part 15, CISPR (EN55022) class A EMS: EN61000-4-2 (ESD) EN61000-4-4 (EFT) EN61000-4-5 (Surge) Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Certification | CE, FCC, RoHS, UL508(Pending) |
| Warranty | 5 years |
| Packing List | 1. Industrial PoE Switch(plus terminal block) ×1 2. User manual × 1 3. Certificate of quality × 1 4. Warranty card × 1 5. DIN-Rail mounting kit × 1 |

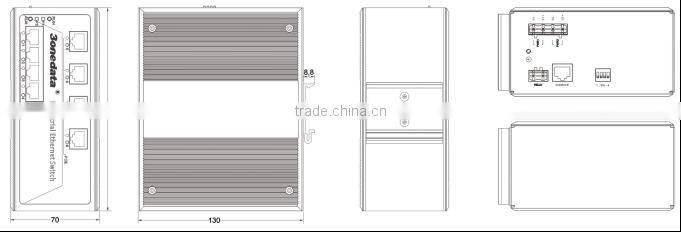

| Dimension |
| |
| Shipping |
|
