Convert V.35 Interface to FE1 Protocol Converter

Specifications

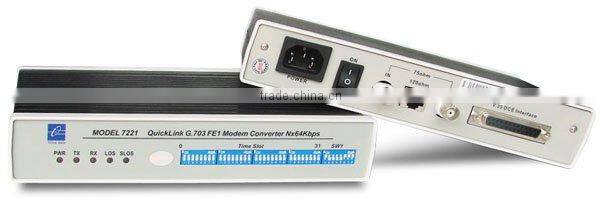

Convert V.35 interface to FE1 protocol converter

1. Convert V.35 interface to E1(2M unframed G.703) interface

2. Support line recovery clock, local clock and equipment clock

3. Support E1 port loop

4. E1 (G.703 ) interface support 120ohm (RJ-45) and 75ohm (BNC double coaxial)

MODEL7221 converter supports the conversion between E1 interface which accord with the ITU-T G.703 standard and V.35 interface, it can receive synchronous data of 2.048Mbps from E1 network, and transmit the data to ROUTER or other devices. The mode of interface is DCE, and it can be connected with DTE or DCE devices.

1.E1 interface

 Standard: Comply with ITU-T G.703

Output tingle displace: accord ITU-TG.735 advice

Input tingle limit: accord ITU-TG.823 advice

Output tingle: accord ITU-T G.823 advice

Signals: BNC: IN, OUT

RJ-45: T+, T-, R+, R-, GND

Working Synchronous serial, lucency transmission

Frame format: unframed

Interface rate: 2.048Mbps

Port coding: HDB3

Port transmission: 2KM

Port protection: 1500V electromagnetism isolate

Port connector: 120 Ohm(RJ-45) and 75 ohm(BNC double coaxial)

2.V.35 interface

Standard: Comply with V.35 (DTE)

Clock: Line clock, Local clock

Port connector: DB-25 female (DB25 to M/34 cable)

Line code: NRZ

Clock selection: Internal clock, V.35 line clock, E1 recovery Clock

Test facility : Bite Local& remote loop test

 3.Environment, Power and Dimension

Working temperature: -25 to 70°C

Storage temperature: -40 to 85°C

Humidity: Relative humidity 5% to 95%

Input power: 220VAC or -48VDC

Consumption: 2W

Power protection: From high voltage/short circuit

L×W×H: 227.4mm×146.3mm×42.7mm

Shell: Plastic

Weight: 260g

Warranty: 5 years

Approvals: FCC, CE, RoHS

L×W×H: 227.4mm×146.3mm×42.7mm

Weight: 260g

Packaging: 1pcs/plastic bubble bag+Carton

Shipping:DHL FEDEX UPS TNT or By Sea (our own logistics can help you to save the shipping fee)

Warranty: 5 years

Approvals:

After sale:50 professional high technical engineer here to solve your any problems once you meet.
