Mini 2T2R 300Mbps Wireless Usb Wifi Adapter With External Antenna With WPS Botton

Mini 2T2R 300Mbps Wireless Usb Wifi Adapter With External Antenna With WPS Botton thumbnail-1
Mini 2T2R 300Mbps Wireless Usb Wifi Adapter With External Antenna With WPS Botton thumbnail-2
Mini 2T2R 300Mbps Wireless Usb Wifi Adapter With External Antenna With WPS Botton thumbnail-3
Mini 2T2R 300Mbps Wireless Usb Wifi Adapter With External Antenna With WPS Botton thumbnail-4
Mini 2T2R 300Mbps Wireless Usb Wifi Adapter With External Antenna With WPS Botton photo-1
Mini 2T2R 300Mbps Wireless Usb Wifi Adapter With External Antenna With WPS Botton photo-2
Mini 2T2R 300Mbps Wireless Usb Wifi Adapter With External Antenna With WPS Botton photo-3

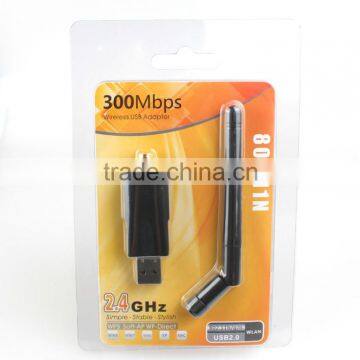

Mini 2T2R 300Mbps Wireless Usb Wifi Adapter With External Antenna With WPS Botton photo-4
US$ 4.8 - 5 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
XHT-3509
Contact Supplier Request Quote Chat Now
Shenzhen Newsky Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OEM
Model Number XHT-3509

mini 2T2R 300Mbps wireless usb wifi adapter with external antenna support WPS function



Packaging & Delivery



Packaging Details: Unit weight: 40g  200pcs/carton N.W: 8kgs G.W: 9kgs Meas: 49*39*39cm
Delivery Detail: 5-7 days

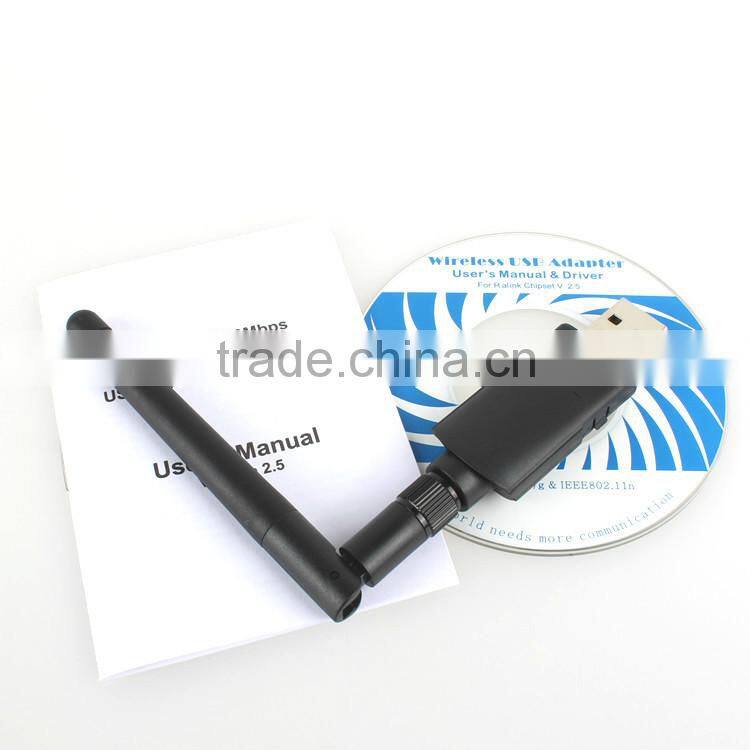

Packaging Details: Driver CD *1pc    USB WiFi Adapter * 1pc   User manual * 1 2 Dbi Antenna * 1

 mini 2T2R 300Mbps wireless usb wifi adapter with external antenna With WPS botton

Product Description



Specifications



1. 2T2R MIMO mode
2. 300Mbps wireless USB adaptor
3. Ralink RT5372 chipset
4. High peak rate wifi adapter
5. Software Ap



Simple  Stable Stylish

2T2R MIMO 300Mbps 802.11n high speed USB WIFI Adapter support Soft-Ap functin

MINI Size Wi-Fi USB Dongle With WPS botton

Support OS: Android, Linux, Mac, Windows7 /8 etc

Application for IP TV, IP Camera, Set top box, Dream Box, Multimedia player, Sound box, Laptop, desktop, etc

Two years quality warranty

7-10  days swift delivery time



Ralink RT5372  2T2R Modes



Main Features:

802.11b: 1, 2, 5.5, 11Mbps;

802.11g: 6, 9, 12, 24, 36, 48, 54Mbps;

802.11n: (20MHz) MCS0-15,Support up to 144Mbps;(40MHz) MCS0-15, Support up to 300Mbps

MIMO, OFDM, Peak rate 300Mbps, Peak throughput: TX 80Mbps, RX 160Mbps



Power Management

Wi-Fi Certification: 802.11 a/b/g, 802.11n, WPA, WPA2, WMM , WMM-PS

WHQL, Cisco CCX



Hardware

Chipset :Ralink RT5372

Host interface: USB2.0/1.1  type A (4 pin header)

LEDS; link/Acticity



RF

Antenna: RP-SMA Detachable 2dBi antenna  (2T2R) (or external use Hirose, or compliance)

Frequency: 2412~2483.5 MHz, ISM band

Transmit Power: 802.11b: 17+/-1.5dBm;  802.11g: 14+/-1.5dBm;

802.11n: (HT20), 13+/-1.5dBm,  802.11n: (HT40), 10+/-1.5dBm,

Receive Sensitivity: 802.11b: -84dBm@11Mbps;  802.11g: -68dBm@54Mbps

                  802.11n: (HT20), -65dBm@MSC7,  802.11n: (HT40), -61dBm@MSC7

Software

Operation System :Windows CE/2000/XP/Vista/7/8; Linux 2.6x; Mac OS X

Security: WEP 64/128, WPA, WPA2, 802.1x, and 802.11i Cisco CCS V1.0, 2.0 and V3.0 Compliant



Operation Conditions

Voltage Range: DC 5.0V ± 5%

Operating Temperature: 0°C - 50°C

Storage Temperature: -20°C - 70°C

Operating Humility: RH 95% (Non-Condensing)

Storage Humidity: RH 95% (Non-Condensing)



Physical Specification

1>Dimentions: 88.5X21X8.9 MM

                               mini 2T2R 300Mbps wireless usb wifi adapter with external antenna With WPS botton

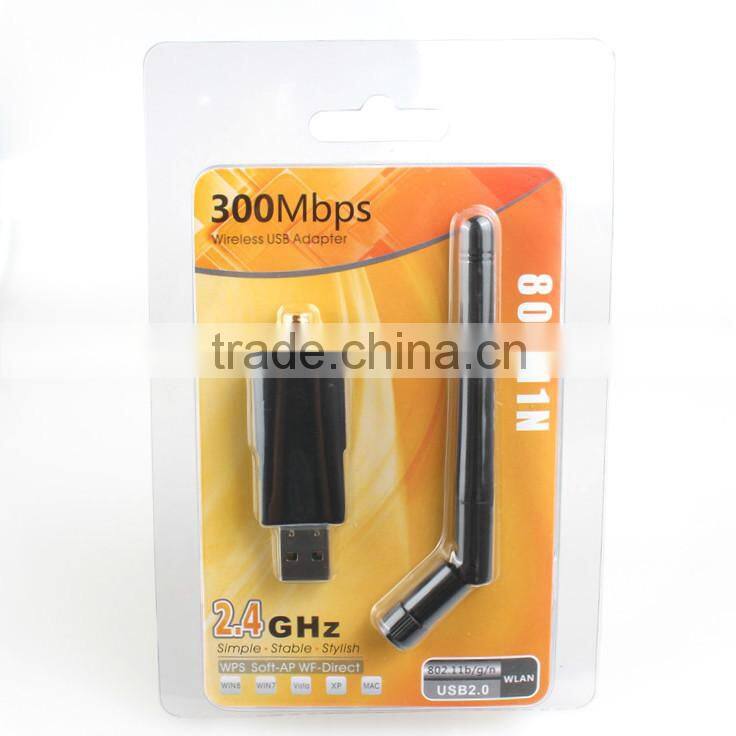

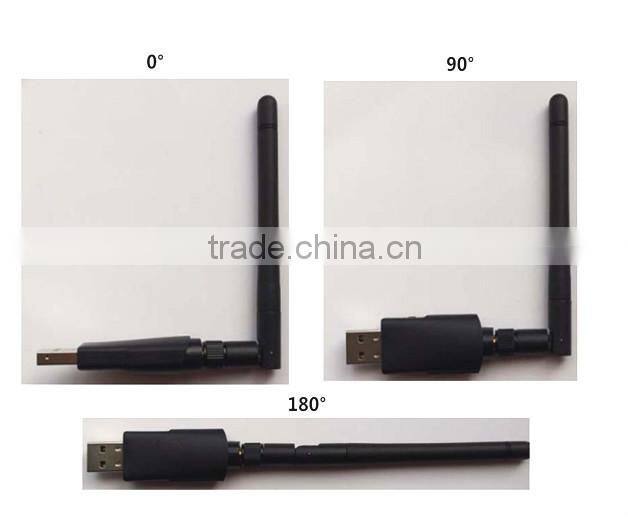

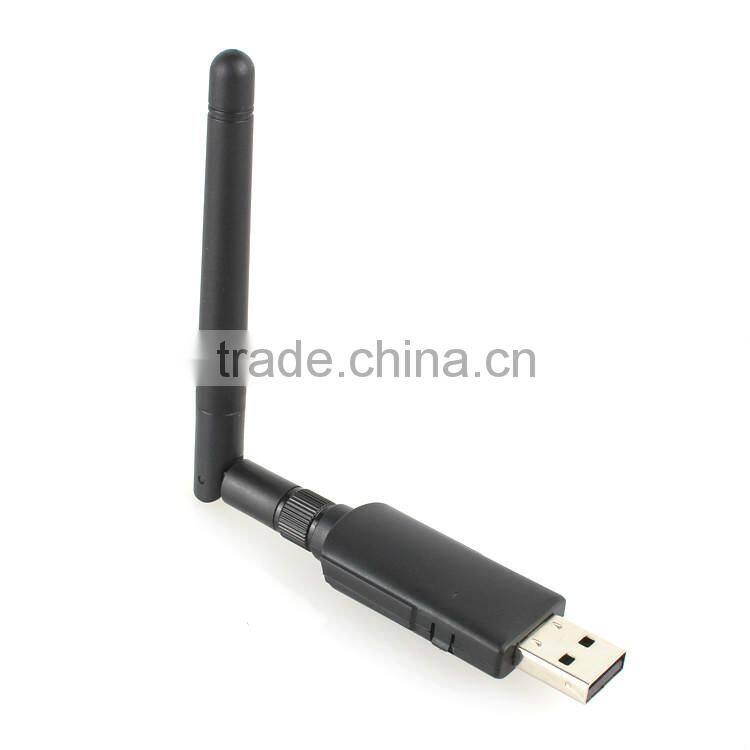

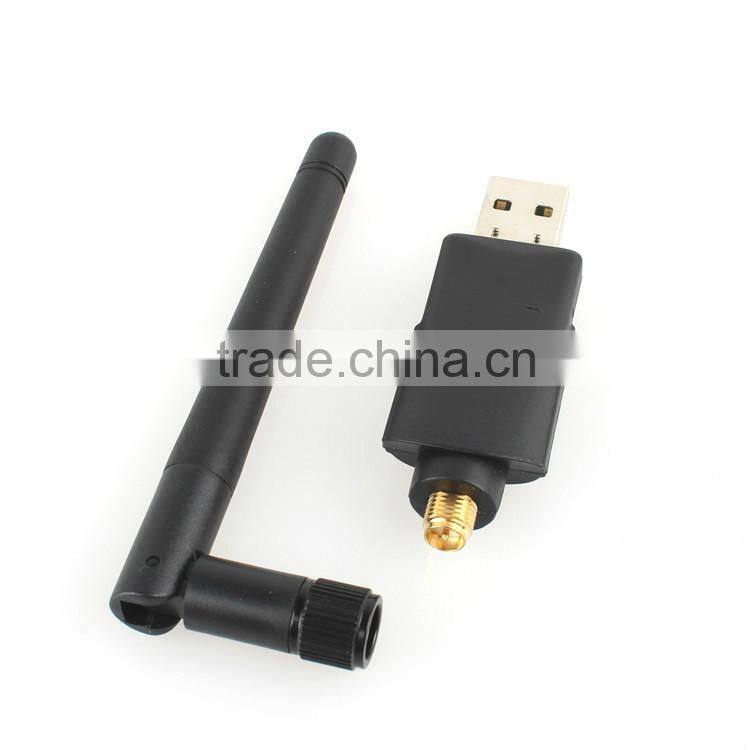

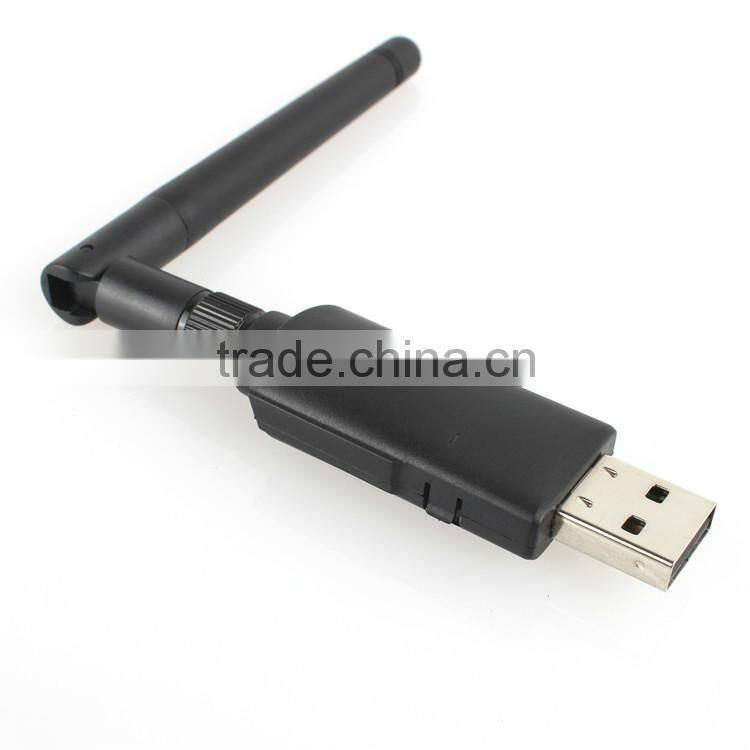

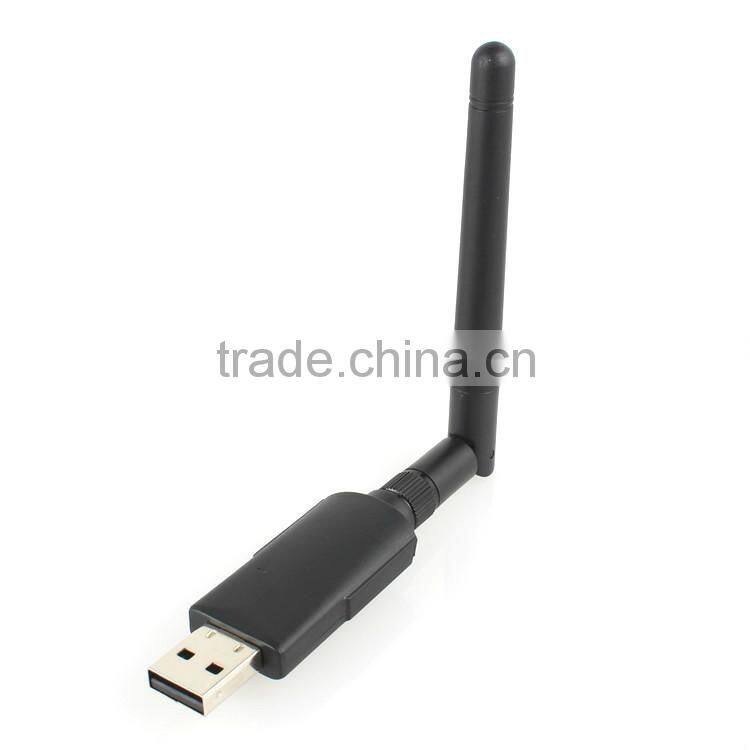

Product Picture

 mini 2T2R 300Mbps wireless usb wifi adapter with external antenna With WPS bottonmini 2T2R 300Mbps wireless usb wifi adapter with external antenna With WPS bottonmini 2T2R 300Mbps wireless usb wifi adapter with external antenna With WPS bottonmini 2T2R 300Mbps wireless usb wifi adapter with external antenna With WPS bottonmini 2T2R 300Mbps wireless usb wifi adapter with external antenna With WPS bottonmini 2T2R 300Mbps wireless usb wifi adapter with external antenna With WPS botton



Our Services

1. 12 months warranty

2. OEM & ODM is available.

3. High quality with best service

4. each cables will be tested over 3 times before shipment

  Contact person: Zola     |       skype:live:szxinhuatian        | QQ:2398402087





FAQ



Q: What's your MOQ?

     A: No MOQ, Mixed order welcome.

Q: What's the Payment Term?

     A: We accept T/T, Cash, Money Gram, Western Union.

         30% deposit, 70% T/T Before shipment.

Q: Can we get samples?

     A: Yes, we can provide the regular samples.

Q:Do you accept the OEM or ODM order?

     A: Yes, we accept OEM and ODM order, Customized design is available.

Q: What's your quality assurance?

     A: Quality warranty is 1 year.
